Product Recognition | |
|---|
Certification Number | ZC10-18066169 |
|---|

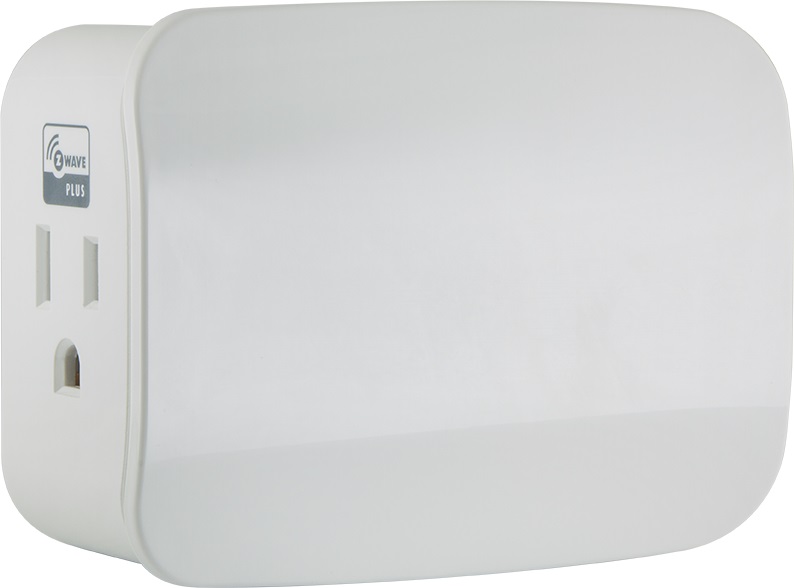

Name | Plug-in Smart Switch, Dual Plug |
|---|
Short Description | Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control and Appliance Module. |
|---|
Long Description | Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Control and Appliance Module. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! |
|---|
Brand | Jasco Products Company |
|---|
Product Identifier | 28172/ZW4104 |
|---|
OEM Version | HW: 255 FW: 5.22 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x5052 |
|---|
Product ID | 0x3039 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Electric Load Type | Value |
|---|
Incandescent | LED | Inductive (e.g. Motor) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | Supports Basic Set and is controlled with the local load. | 3 | 5 | 0 | Supports basic set and is controlled by double pressing the button. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Light | Adjust LED light to ON when Device is OFF or Disable the LED. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | Default LED On WHen Device Is On | 2 | 2 | Disable LED | 0 | 0 | LED On When Device Is OFF |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | 1. If plugged in, unplug the switch from the receptacle.
2. Press and hold the top button for at least 3 seconds
while you plug the switch into a receptacle.
Note: This should only be used in the event your networks’
primary controller is missing or otherwise inoperable. | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified
controller to add the device to the Z-Wave network.
2. Once the controller is ready to add your smart
switch, single press and release the manual/program
button on the smart switch to add it in the network. | 2 | Exclusion | Follow the instructions for your Z-Wave
certified controller to remove a device
from the Z-Wave network.
2. Once the controller is ready to remove your device,
press and release the manual/program button on
the smart switch to remove it from the network. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
