Product Recognition | |
|---|
Certification Number | ZC10-16055080 |
|---|

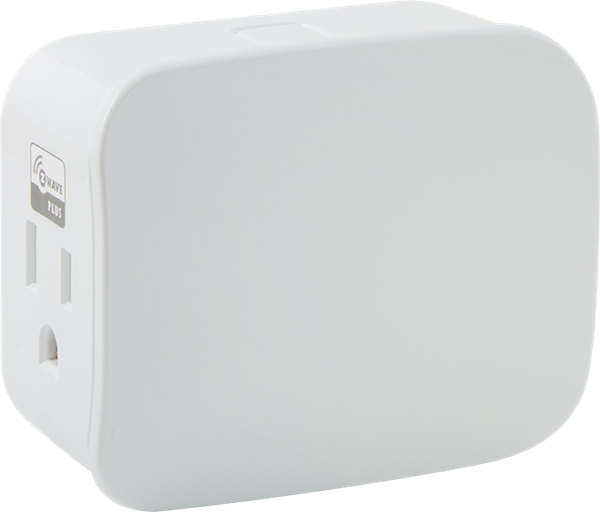

Name | Plug-in Smart Switch (Single Plug) |
|---|
Short Description | The Plug-in Smart Switch enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs as well as small appliances. |
|---|
Long Description | Transform any home into a smart home with the Jasco Z-Wave Smart Lighting Plug-in Smart Switch. The lighting control enables wireless control of on/off functions for standard table and floor lamps, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides a Z-Wave enabled outlet for the lamp or appliance that you would like to control. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Jasco Z-Wave Smart Lighting Controls! |
|---|
Brand | Jasco Products Company |
|---|
Product Identifier | 28168 (ZW4103) |
|---|
OEM Version | HW: 255 FW: 5.21 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x5052 |
|---|
Product ID | 0x3037 |
|---|
User Icon | 07 00 |
|---|
Installer Icon | 07 00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | MLV (Magnetic) | ELV (Electronic) | LED | Inductive (e.g. Motor) |
| Switch Load Capacity Watts | Value |
|---|
600W Incandescent; 1800W Resistive |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | Control Group | 3 | 5 | 0 | Control Group |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | LED Light | When shipped from the factory, the LED is set to turn ON when the connected light is turned OFF. This is the default setting and can be changed if your primary controller supports the node configuration function. To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. To turn the LED OFF at all times, change parameter 3’s value to 2. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
2 | 2 | To turn the LED OFF at all times, change parameter 3’s value to 2 | 1 | 1 | To make the LED turn ON when the light is turned ON, change parameter 3’s value to “1”. |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press and release the manual/program button on the smart switch to exclude it from the network. | 5 | Factory Reset | 1. If plugged in, unplug the Switch from the receptacle.
2. Press and hold the top button for at least 3 seconds while you plug the switch into a receptacle.
Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable. | 6 | Additional Special Features | • This device supports Association Command Class (3 Groups)
• Association Group 1 supports Lifeline, Binary Switch Report
• Association Group 2 supports Basic Set and is controlled with the local load
• Association Group 3 supports Basic Set and is controlled by double pressing the On or Off button
• Each Association Group supports 5 total nodes | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include the device to the Z-Wave network.
2. Once the controller is ready to include your smart switch, single press and release the manual/program button on the smart dimmer to include it in the network.
3. Once your controller has confirmed that the smart switch has been included, refresh the Z-Wave network to optimize performance. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
