Product Recognition | |
|---|
Certification Number | ZC10-20036901 |
|---|

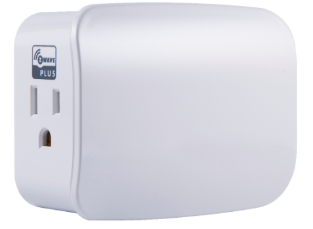

Name | Plug-in Switch (Dual Plug Simultaneous Control) |
|---|
Short Description | Transform any home into a smart home with the Resideo Z-Wave Plug-in Switch (Dual Plug Simultaneous Control). |
|---|
Long Description | Transform any home into a smart home with the Resideo Z-Wave Plug-in Switch (Dual Plug Simultaneous Control). The lighting control enables wireless control of on/off functions for standard table and floor lamps and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. Easily controlled by your mobile device or computer using any Z-Wave certified gateway, the space-saving horizontal module plugs into a standard wall receptacle without blocking the second outlet or obstructing placement of furniture. It provides dual Z-Wave enabled outlets for the lamp or appliance that you would like to control and a regular pass-through AC outlet for other electrical appliances. Perfect for plug-in fans, heaters, lamps and more! Take control of your home lighting with Resideo Z-Wave Smart Controls! |
|---|
Brand | Resideo |
|---|
Product Identifier | 39449 / ZW4106 |
|---|
Product Line | Smart Switch Lighting Controls |
|---|
OEM Version | HW: 255 FW: 5.22 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.10 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x041B |
|---|
Product Type ID | 0x5052 |
|---|
Product ID | 0x3033 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SCENE_ACTUATOR_CONF | Scene Actuator Conf | 0x2C | 1 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SCENE_ACTIVATION | Scene Activation | 0x2B | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Switch Type | Value |
|---|
Push Button Illuminated |
| Loads Controlled | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 5 | 0 | Lifeline | Supports Device Reset Locally and receives unsolicited status updates. | 2 | 5 | 0 | Single Press | Association Group 2 supports Basic Set and is controlled by single pressing the button | 3 | 5 | 0 | Double Press | Association Group 3 supports Basic Set and is controlled by double pressing the button |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Parameter 3 | Invert/disable LED (Adjusts when the indicator LED is turned ON, OFF or disables it entirely) | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | LED ON/device ON | 1 | 1 | LED ON/device OFF | 2 | 2 | Disable LED |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | ADDING YOUR DEVICE TO A Z-WAVE NETWORK
1. Follow the instructions for your Z-Wave certified
controller to add a device to the Z-Wave network.
2. Once the controller is ready to add your device, press
and release the manual/program button on the smart
switch. Repeat as necessary to add the switch to
the network. | 2 | Classic Exclusion | TO REMOVE AND RESET THE DEVICE
1. Follow the instructions for your Z-Wave certified
controller to remove a device from the Z-Wave network.
2. Once the controller is ready to remove your device, press
and release the manual/program button on the smart
switch to remove it from the network. | 5 | Factory Reset Procedure | TO RETURN YOUR SWITCH TO FACTORY DEFAULTS
1. If plugged in, unplug the device from the receptacle.
2. Press and hold the top button, plug the device in and
continue to hold for at least 3 seconds.
NOTE: This should only be used in the event your network’s
primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
