Product Recognition | |
|---|
Certification Number | ZC10-16085167 |
|---|

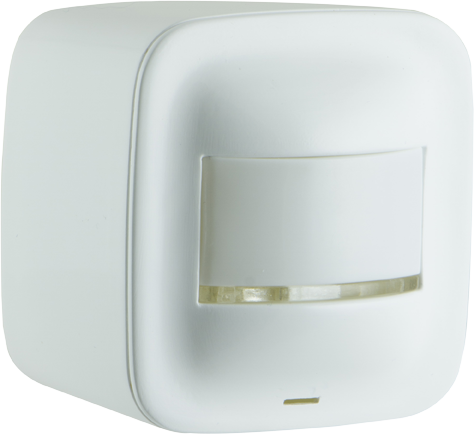

Name | Portable Smart Motion Sensor |
|---|
Short Description | Make the move toward convenience with the Z-Wave Portable Smart Motion Sensor for your home. |
|---|
Long Description | Make the move toward convenience with the Z-Wave Portable Smart Motion Sensor for your home.
This Z-Wave compatible device boosts the safety of your home by working with your home’s gateway
to wirelessly trigger scenes and send alerts to your smartphone or tablet whenever motion is detected.
Use the included batteries for easy placement anywhere, plug into the wall using a AC adapter and
USB cable – never replace batteries again. |
|---|
Brand | GE |
|---|
Product Identifier | 34193/ZW6302 |
|---|
OEM Version | HW: 255 FW: 5.22 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0063 |
|---|
Product Type ID | 0x4953 |
|---|
Product ID | 0x3133 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Battery Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | Value |
|---|
Motion/No Motion (Binary) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Group 1 supports Z-Wave Plus lifeline communication and notification. lifeline association only supports the "manual reset" event and notification report, however it can be changed to send basic set with notification and basic report with notification. See programming instructions. |
|
|---|
Configuration Parameters | |
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | 1. Press the program button 10 times within 6 seconds.
2. The blue LED will blink for 3 seconds.
Note: This should only be done in the event your primary controller is missing or otherwise inoperable. | 2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network.
2. Once the controller is ready to exclude your device, press and release the program button to exclude it from the network. | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network.
2. Once the controller is ready to include your device, press and release the program button to include it in the network.
3. The blue LED will activate for 3 seconds to confirm it has been included. |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
0x02 |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
