Product Recognition | |
|---|
Certification Number | ZC10-17015374 |
|---|
Name | Power Manager |
|---|

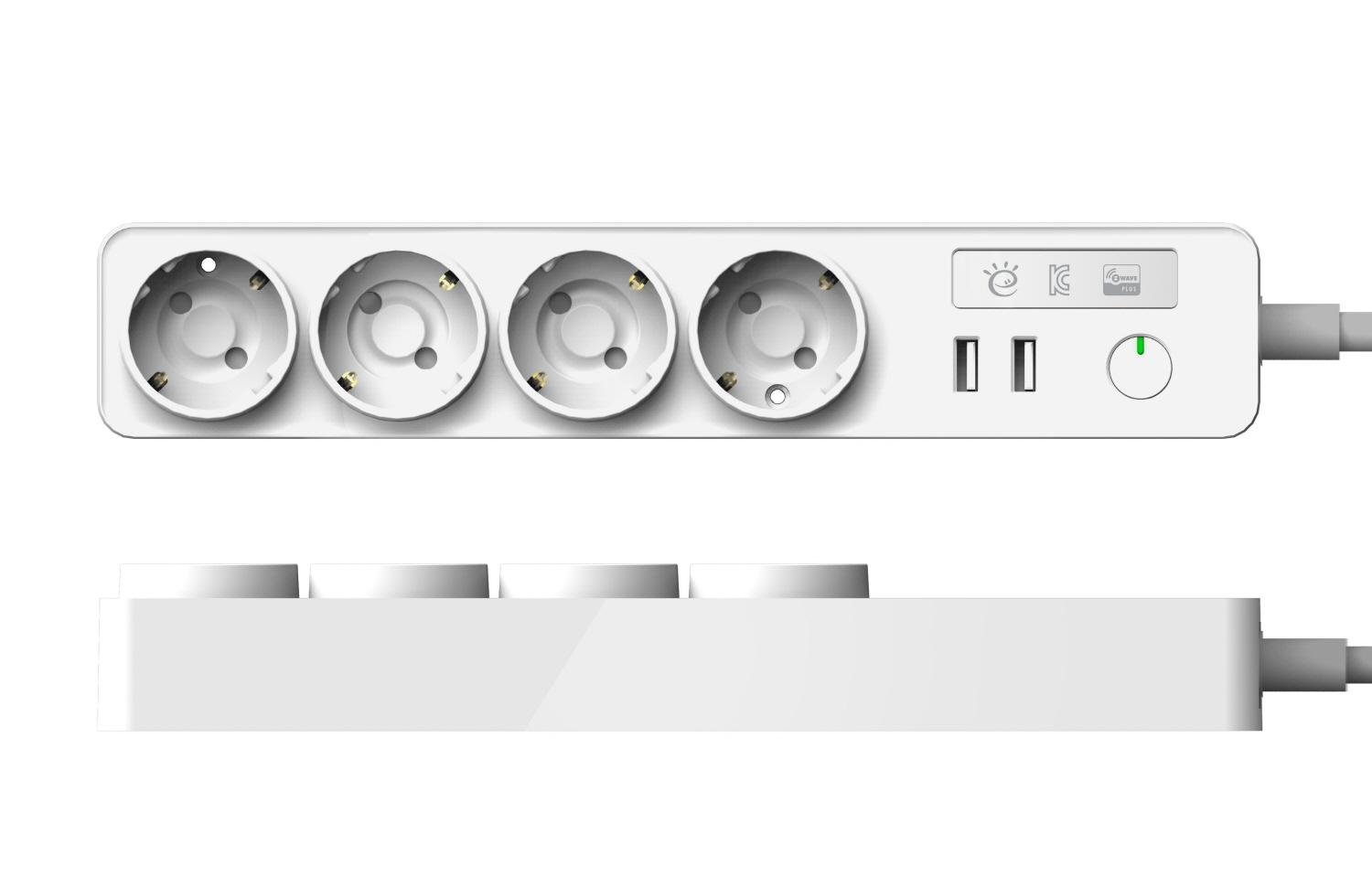

Short Description | The Z-Wave smart PowerStrip makes it possible to meter the amount of power used by home appliance.
This device can switch on or off the electric home appliance (remotely and manual) |
|---|
Long Description | The device can remotely power on/off to the load connected Power Strip and will inform you of the electricity usage of your load. You can use it to measure the total power of the load connected to the device (currently instantaneous power & used power). |
|---|
Brand | KT |
|---|
Product Identifier | DD04-612I |
|---|
OEM Version | HW: 17 FW: 0.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x018C |
|---|
Product Type ID | 0x0042 |
|---|
Product ID | 0x0007 |
|---|
User Icon | 0x0700 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | KR: 920.90MHz, 921.70MHz, 923.10MHz |
|---|
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | Republic of Korea |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_METER_V3 | Meter V3 | 0x32 | 3 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Supported Meter Type | | Color | | Firmware Updatable | Value |
|---|
Updatable by Manufacturer Representative |
| Switch Load Capacity Current | | Switch Load Capacity Volt-Ampere | | Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline, see attatched manual. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Standy Power Setting Value | this parameter determines whether to use the standby power cutoff function and determines the reference value of standby power cut off. If ther power consumption is less than the reference value, switch is turned off. this parameter value's size is 4 bytes. first 3 bytes is for setting standby power reference value. last 1 byte is for standby power monitoring function enable or disable. - Standby power setting value : 3 Byte - Standby Power Enable/Disble : 1 Byte) standby power value example : if the value is set by 300(0x00012C), standby power is 3.00w standby power function enable/disable example : If standby power is enable, value is 0x01. and, total 4 bytes is 0x00012C01, ( Default parameter value : 0 – 0.00W, StandbyPower Disable) (max standby reference power is 600W, 0x00EA60) | 0 | 4 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 60000 | standby power reference value range(3 byte) | 0 | 1 | standby power monitoring function enable/disable setting value |
| 2 | Peridic Measurement Value Transmission | this parameter determines whether or not to periodically reports the measured power values. Value : 1 (transmits a power value measured at the plug, periodically. Value : 0 (not transmitting power value) ( Default : 1) | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | If value is 0, Plug do not transmit power value. If value is 1, plug transmits power value to hub. |
| 3 | Accumulation Start/Stop | this parameter is for the function measuring the power used cumulatively. Value : 0 - stop accumulating power value. Value : 1 - start accumulating power value. ( Default : Accumulation Start ) (This configuration value is used only 0 and 1.) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | If value is 0, plug stop accumulating power value. If value is 1, plug start accumulating power value. |
| 4 | Connected Device Use/Not Use | this parameter is a value that indicates whether the device is in use connected to the plug. this is read only. and this parameter has meaning only when the standby power off function is On. Value : 0 - when connected Device(home appliance) is Not Use Value : 1 - When connected Device(home appliance) is in Use - Before setting the standby power mode, this parameter is meaningless. Only when using Standby power break mode, plug can report this parameter. (This configuration value is used only 0 and 1.) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 1 | If value is 0, connected device is Not use, If value is 1, it is in use. |
| 5 | Periodic Time Intervals | this parameter is for the periodic report interval. Minimum time interval : 10minutes(standard unit) Value : 1 (10minutes * 1) = 10minutes interval Value : 2 (10minutes * 2) = 20minutes interval …….. …….. Value : 144(10m * 144) = 24 hours interval =>MAX ( Default : 6 = One hour ) | 0 | 1 | 0 | 0 | 6 | From | To | Description |
|---|
1 | 144 | unit is per 10 minutes.you can change this value using configuration command class. |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Press the button on the Smart Power Strip for more than 10 seconds after you plug the Smart Power Strip into a power outlet will make a Exclusion in the network controller, while the flashing red button LED Smart Power Strip. And all the variables are initialized.
※ Please use this procedure only in the event that the network primary controller is missing or otherwise inoperable | 1 | Inclusion | After mounting the UZB controller to your PC and running the PC Controller program, click the Add button in the PC Controller program. Press the button on the Smart Power Strip for more than five seconds after you plug the Smart Plug into a power outlet and it will include to the network controller, while flashing the red button on the LED Smart Power Strip. | 2 | Exclusion | After mounting the UZB controller to your PC and run the PC Controller program you can click the Remove button in the PC Controller program. Press the button on the Smart Power Strip for more than five seconds after you plug the Smart Power Strip into a power outlet will Exclusion in the network controller, while the flashing red button LED Smart Power Strip. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
