Product Recognition | |
|---|
Certification Number | ZC10-18015972 |
|---|
Name | Power On/Off Plug |
|---|

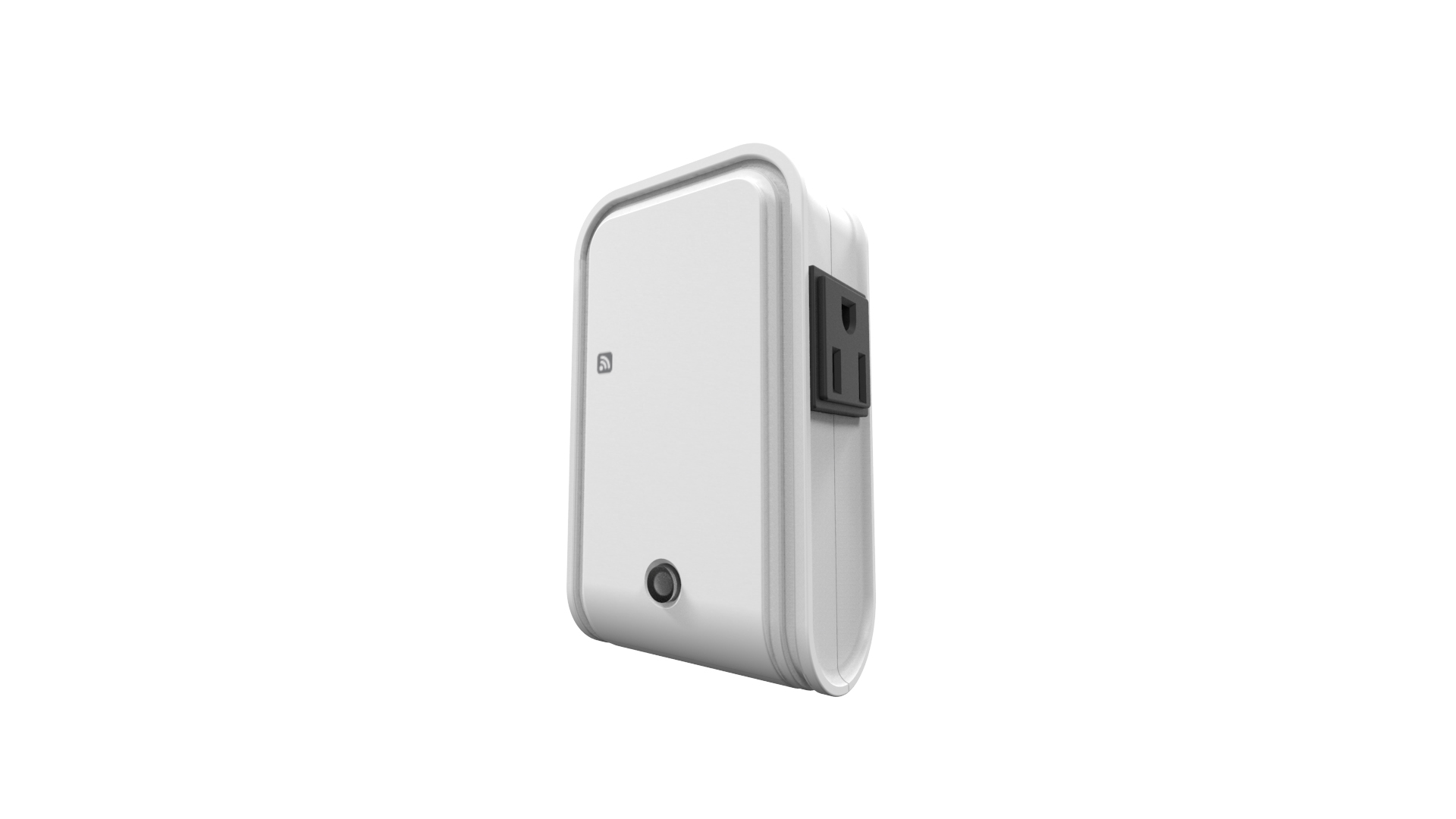

Short Description | AXIS T8344 is a wireless power plug enabling remote on/off switching of lamps and other devices and acts as a repeater increasing the distance between the controller and the Z-Wave Plus® devices. |
|---|
Long Description | AXIS T8344 is a wireless power plug enabling remote on/off switching of lamps and other devices. With its support for wireless input/output connectivity, the power on/off plug can communicate wirelessly with AXIS M5065 PTZ Network camera or other connected Z-Wave Plus® controllers, creating a small security solution with less cabling. Thanks to its integrated wireless I/O connectivity, AXIS T8344 enables flexible installation as the relay can easily be moved and adapted to your needs. Designed to act as a repeater, AXIS T8344 increases the distance between the controller and the Z-Wave Plus® devices by up to 100m. |
|---|
Brand | Axis Communications |
|---|
Product Identifier | T8344-JP |
|---|
OEM Version | HW: 1 FW: 1.01:00.01 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0364 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0701 |
|---|
Installer Icon | 0x0701 |
|---|
Frequency Plans | JP: 922.50MHz, 923.90MHz, 926.30MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | Japan |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_NOTIFICATION_V4 | Notification V4 | 0x71 | 4 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer via Internet |
| Switch Load Capacity Volt-Ampere | | Sensors | | Supported Notification Types | | Color | | Electric Load Type | | Switch Load Capacity Watts | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Association with 1 node. | 2 | 4 | 0 | Association with 4 nodes (i.e. end devices such as detectors or other lighting switches).This allows the On/Off module to receive commands directly from these end devices without the participation of the controller. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Remember the last status | 1: remember (0: do not remember) | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 1 | 1: remember (0: do not remember) |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Manual exclusion
Note:
For more details see the installation guide
1. Put the Z-Wave controller in exclusion mode
2. Press the link button 3 times within 1.5 seconds to put the unit into learning (inclusion/exclusion) mode.
3. The process should be completed when the LED stops blinking | 1 | Inclusion | Auto inclusion
The detector supports the auto inclusion feature where it will automatically enter Inclusion mode when first powered up. This will also apply when powered up after a factory reset.
1. On the front side of the device, there is a link-button/LED-indicator which is used to set the device in learning mode
(inclusion, exclusion).
2. Put a Z-Wave controller into inclusion mode.
3. Plug the On/off Plug into a wall outlet near the device to be controlled.
4. The inclusion process should be completed when the LED stops blinking
Manual inclusion
If auto inclusion fails, you can choose to add the Z-Wave device to a control device. Please follow the steps described below.
Note:
For more details see the installation guide
1. Put the Z-Wave controller in inclusion mode
2. Press the link button 3 times within 1.5 seconds to put the unit into learning (inclusion/exclusion) mode.
3. The process should be completed when the LED stops blinking | 5 | Factory Reset | Factory Reset (This procedure should only be used when the controller is inoperable.)
1. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode.
2. Within 1 second of step 1, press and hold the button for 5 seconds.
3. Node ID is deleted. The device reverts to factory default state. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Power |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
