Product Recognition | |
|---|
Certification Number | ZC10-15120003 |
|---|

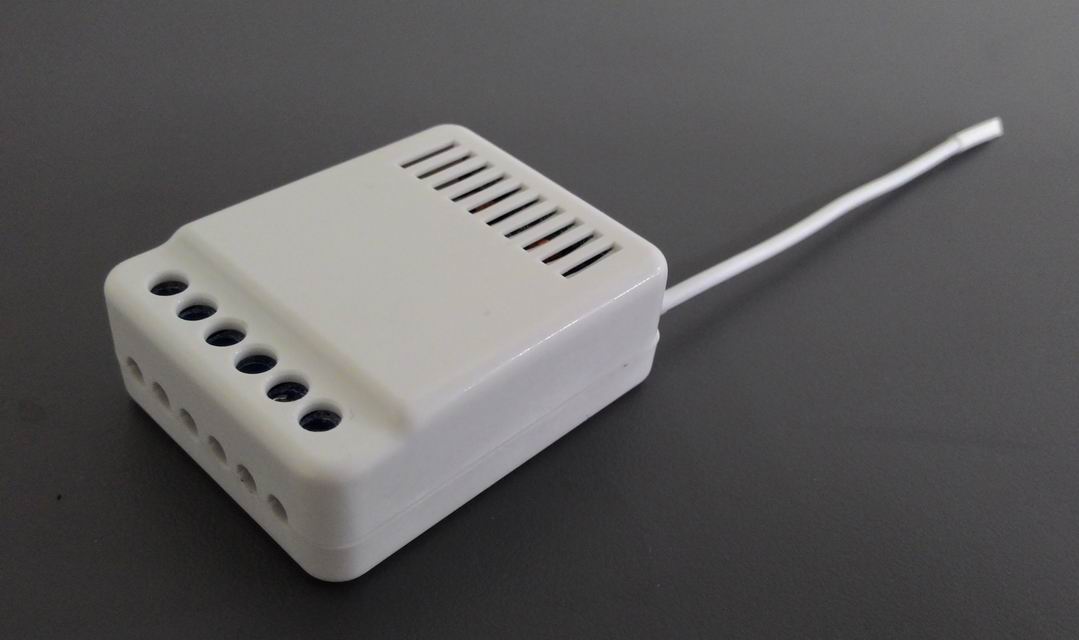

Name | Power Switch |
|---|
Short Description | This module provides On/Off control for the appliance that is attached to this module by Z-Wave™. It also can control two appliances independently. When the device is secure included into Z-Wave network, Z-Wave™ communication will be encrypted. |
|---|
Long Description | This module provides On/Off control for the appliance that is attached to this module by Z-Wave™. It also can control two appliances independently. When the device is secure included into Z-Wave network, Z-Wave™ communication will be encrypted.
* Size: 3.95 x 5.0 x 1.9 cm
* Operating Range: Up to 100 feet line of sight
* Operating Temp.: -10°C~ 60°C (14°F~140°F)
* Operating Voltage: 90 VAC~240 VAC, 50/60 Hz
* Max. Loading: 15A |
|---|
Brand | Vision |
|---|
Product Identifier | ZL7434EU-5 |
|---|
OEM Version | 02 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.06 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0109 |
|---|
Product Type ID | 0x200C |
|---|
Product ID | 0x0C06 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Light type | To select the light type, 1 Wall Switch, 2 Wall Switches or wall switch with Light Indicator. | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
1 | 1 | 1 or 2 Wall Switches | 2 | 2 | 1 Wall Switch with Light Indicator(factory default). |
| 2 | Switch button type | If customer chose 1 or 2 wall switches, then they have also select switch button type. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 1 | With common on/off type switch button used(factory default). | 2 | 2 | With momentary type switch button used. |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZL 7434-5 to your controller. To get in the “inclusion” mode, the distance between module and controller is suggested to be in one meter. Press 3 times program switch within 2 seconds or turn on the wall switch 3 times within 2 seconds (or press toggle switch 3 times) to be included. | 2 | Exclusion | Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the ZL 7434-5 from your controller.
Press 3 times program switch within 2 seconds or turn on the wall switch 3 times within 2 seconds (or press toggle switch 3 times) to be excluded. | 5 | Factory Reset | Power off first, press Program Switch and power on, ZL7434-5 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
