Product Recognition
Certification Number	ZC10-16035022

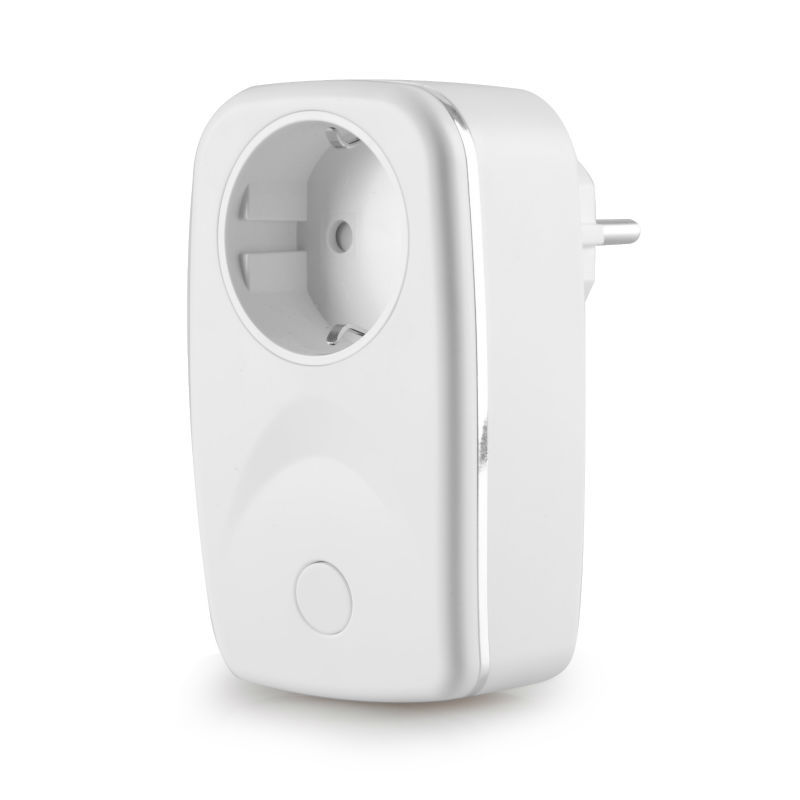

Name	Power Switch
Short Description	16A/ 100~240V power switch, standby power less 0.5W
Long Description	The power switch have build in over-load protection, max curtain 16A relay and standby power less than 0.5W. This module will send On/Off signal to the appliance that attached to this module by receiving Z-Wave™ signal from controller or manually switch. This module also acts as repeater and can also be used in other manufacturer’s Z-Wave™ enabled networks.
Brand	U-Fairy G. R.
Product Identifier	GR-201N
OEM Version	HW: 2 FW: 0.02
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ROUTING
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0152
Product Type ID	0x0003
Product ID	0x0002
User Icon	0x0701
Installer Icon	0x0701
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual GR-201N switch UM.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline
Texts	ID Description Value 1 Inclusion Please press the Z-Wave button when the Z- Wave controller sends the instructions for inclusion, Press the Button 3 times it will send the NIF 2 Exclusion Please press the Z-Wave button when the Z-Wave controller sends the instructions for exclusion, Press the Button: 3 times it will send the NIF 5 Factory Reset Press and hold the button 10 seconds . The device will send the reset notification to the list node in the group1 and erases the device memory. Note: This should only be used in the event your networks primary controller is missing or otherwise inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
