Product Recognition

Certification Number

ZC10-23037124

Name

PROA7-EAE Security System

Short Description

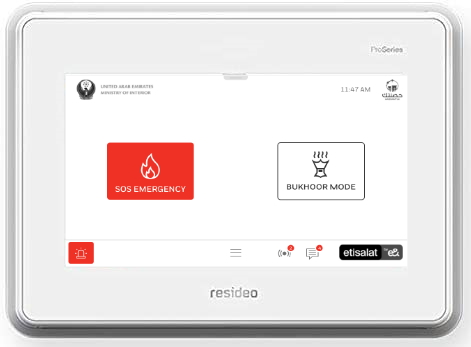

The PROA7-EAE is a 7" self-contained Touchscreen Partitioned Security & Automation System.

Long Description

The PROA7-EAE is a self-contained, rechargeable wireless Control Panel/Communicator that features easy installation and usage. A built-in speaker provides voice annunciation of system status along with voice descriptors of each zone. Internal modules allow the Control Panel to communicate with the Central Station. An internal Z-Wave™ module allows the Control Panel to support Home Automation functions.

Brand

Resideo

Product Identifier

PROA7-EAE

Product Line

Security System

OEM Version

HW: 1 FW: 6.06:02.81:02.00

Hardware Platform

ZM5202

Z-Wave Version

6.81.05

Library Type

CONTROLLER_BRIDGE

Device Type

Central Controller

Role Type

ROLE_TYPE_CONTROLLER_CENTRAL_STATIC

Manufacturer ID

0x041B

Product Type ID

0x0001

Product ID

0x0001

User Icon

0x0500

Installer Icon

0x0500

Frequency Plans

EU: 869.85MHz, 868.40MHz

Categories

Security Systems

Countries / Regions

United Arab Emirates

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL

Documents

Association Groups

Texts

ID	Description	Value
8	Where to find S2 DSK on product	If the device is an S2 security device, the panel will ask for the DSK (Device Specific Key) pin. Enter the PIN from the device and allow several minutes for the device to complete the Secure enrollment process.
23	Controller Classic Inclusion	Inclusion S0 device: For inclusion one z-wave device is in add mode and the other one is in learn mode. 1. Include a Z-Wave device (Door lock, Switch, Dimmer...), click button 2. Then pop up the inclusion mode window, display searching for Z-Wave Device 3. Press the button on the device which you want to include, wait for the inclusion to end, display device information, click done 4. View Z-Wave device list, the newly registered device should show Inclusion S2 device: 1. Include a Z-Wave S2 device, click button 2. Press the button on the device which you want to include, wait for a dialog and input first 5 digits DSK, click Ok 3. wait for the inclusion to end, display device information, click done 4. View Z-Wave device list, the newly registered device should show
24	Controller Classic Exclusion	For exclusion one z-wave device is in removing mode and the other one is in learn mode. 1. Exclude a Z-Wave device (Door lock, Switch, Dimmer...), click button 2. Then pop up the exclusion mode window, display deleting for Z-Wave Device 3. Press the button on the device which you want to exclude, wait for the exclusion to end, display device information, click done
3	Controller Learn Mode	Controller replication (Copy) is achieved through Inclusion and Set Learn Mode. Entering learn mode while in a network will trigger a replication if the primary controller is in add node mode. So, replication and Learn Mode are the same and you just need to do Learn Mode here. 1. Prepare two mains powered z-wave DUTs and cloud API web shows as below #2 DUT do factory reset first, 2. Click “Inclusion Mode” on the 1# 3. Click “Enter Learn Mode” on the 2#
10	Controller Replication	Controller replication (Copy) is achieved through Inclusion and Set Learn Mode. Entering learn mode while in a network will trigger a replication if the primary controller is in add node mode. So, replication and Learn Mode are the same and you just need to do Learn Mode here. 1. Prepare two mains powered z-wave DUTs and cloud API web shows as below #2 DUT do factory reset first, 2. Click “Inclusion Mode” on the 1# 3. Click “Enter Learn Mode” on the 2#
5	Factory Reset Procedure	1. Prepare two mains powered z-wave DUTs and navigate to system UI as below, click button Click “Setting”

Supports NWI

Yes

Supports Explorer Frames

Yes

Radio Range Z-Wave (m)
