Product Recognition | |
|---|
Certification Number | ZC10-21047020 |
|---|

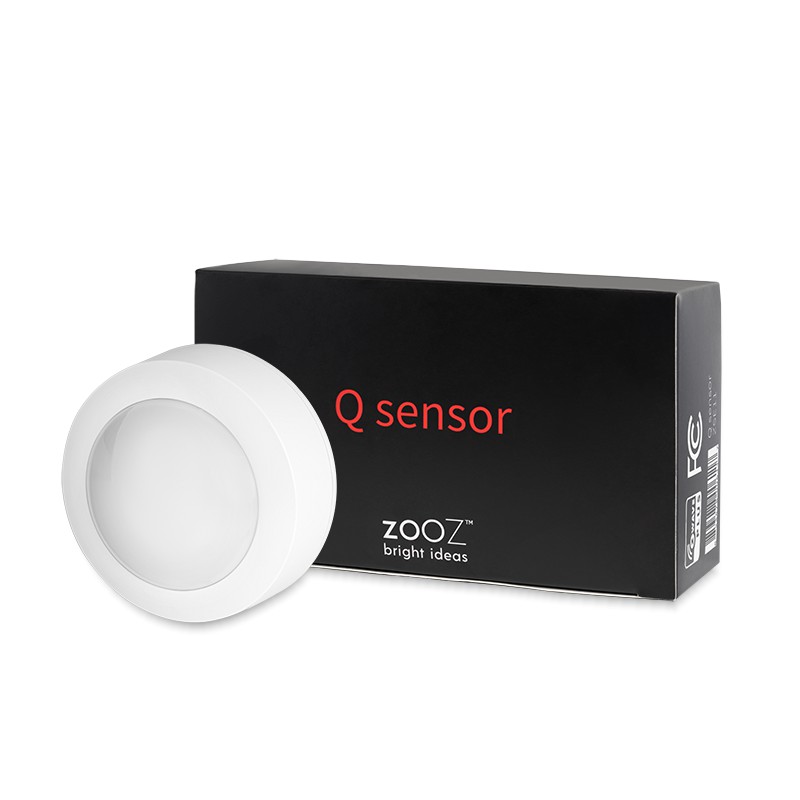

Name | Q Sensor |
|---|
Short Description | Q Sensor is a motion, temperature, humidity, and light sensor. |
|---|
Long Description | PRODUCT FEATURES:
- Quick and reliable motion alerts to Z-Wave hub
- Accurate temperature and humidity monitoring
- Lux sensor for smart light automations
- Battery or Micro USB power
- The latest S2 security and Z-Wave Plus chip
- Supports OTA firmware updates
- Built-in tamper switch for extra security
SPECIFICATIONS:
- Model Number: ZSE11
- Z-Wave Signal Frequency: 908.42 MHz
- Power: 2 x CR123A (3 V) batteries / Micro USB
- Motion Detection: up to 20 feet
- Humidity Detection Range: 0 – 100 %
- Light Sensor Detection Range: 0 – 65535 lux
- Operating Temperature: 32° – 104° F
- Dimensions: 2.3” x 2.3” x 2.2”
- Range: Up to 130 feet line of sight
- Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZSE11 |
|---|
Product Line | Sensors |
|---|
OEM Version | HW: 1 FW: 1.04 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x0201 |
|---|
Product ID | 0x0006 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | Lifeline communication to the hub | 2 | 5 | 0 | Group 2 | Basic set command sent to devices in Group 2 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
172 | Reporting Frequency | Set the reporting frequency for battery, temperature, humidity, and light level. This is the minimum interval in which the sensor will send updates to the hub even if the reporting threshold isn’t met. The values entered correspond to the number of hours. Note: Frequent reports will affect battery life. | 1 | 2 | 1 | 744 | 4 | From | To | Description |
|---|
1 | 744 | hours |
| 182 | Battery Reporting Threshold | Set the battery reporting threshold (measured in percentage). | 1 | 1 | 0 | 99 | 0 | From | To | Description |
|---|
0 | 0 | doesn't report battery based on the reporting threshold | 1 | 99 | battery percentage |
| 183 | Temperature Reporting Threshold | Set the reporting threshold for temperature. The sensor will report new temperature value to the hub whenever temperature changes by the number of degrees entered as value. | 1 | 2 | 1 | 144 | 1 | From | To | Description |
|---|
1 | 144 | degrees Fahrenheit |
| 184 | Humidity Reporting Threshold | Set the reporting threshold for humidity. The sensor will report new humidity value to the hub whenever humidity changes by the percentage number entered as value. | 1 | 1 | 0 | 80 | 5 | From | To | Description |
|---|
0 | 0 | disable humidity reporting based on environmental changes | 1 | 80 | percentage |
| 185 | Lux Reporting Threshold | Set the reporting threshold for lux. The sensor will report new lux value to the hub whenever the brightness level changes by the number of lux entered as value. | 1 | 2 | 0 | 30000 | 50 | From | To | Description |
|---|
0 | 0 | disable lux reporting based on environmental changes | 1 | 30000 | lux |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | Put your Z-Wave hub into inclusion mode and click the Z-Wave button 3 times as quickly as possible. The LED
indicator will start blinking to confirm inclusion mode and turn off once inclusion is completed. The sensor
will automatically pair as a repeater if connected to USB power, no special button sequence required. | 2 | Classic Exclusion | 1. Bring the sensor within direct range of your Z-Wave gateway (hub).
2. Put the Z-Wave hub into exclusion mode (not sure how to do that? ask@getzooz.com).
3. Press and release the Z-Wave button 3 times quickly.
4. Your hub will confirm exclusion and the sensor will disappear from your controller's device list. | 4 | Wake-Up Procedure | The sensor’s wake-up interval is set to 4 hours by default to save battery life. Use the Wake Up Command Class to adjust the interval (in seconds, working in 3600s intervals, with 120 as min and 86400 as max values). Press and hold the ZWave button for 3 seconds to wake the sensor up manually. During wake-up, the sensor turns the Z-Wave radio for a couple of seconds to receive communication from the hub. Long wake-up interval will not affect how often the sensor reports motion or other values to your hub. | 5 | Factory Reset Procedure | When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device
to factory settings manually. In order to complete the process, make sure the sensor is powered, then press
and hold the Z-Wave button for at least 20 seconds.
The LED indicator will start flashing and turn solid on for a couple of seconds to indicate successful reset.
NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | Motion sensor status: Motion detection | Home Security | Tampering, product moved |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Illuminance | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
