Product Recognition
Certification Number	ZC10-15070017

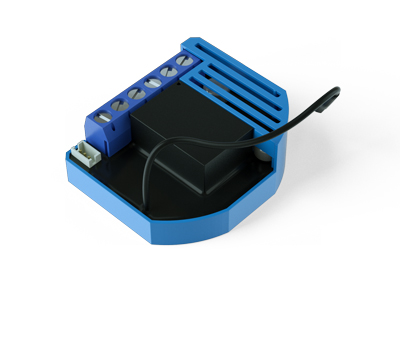

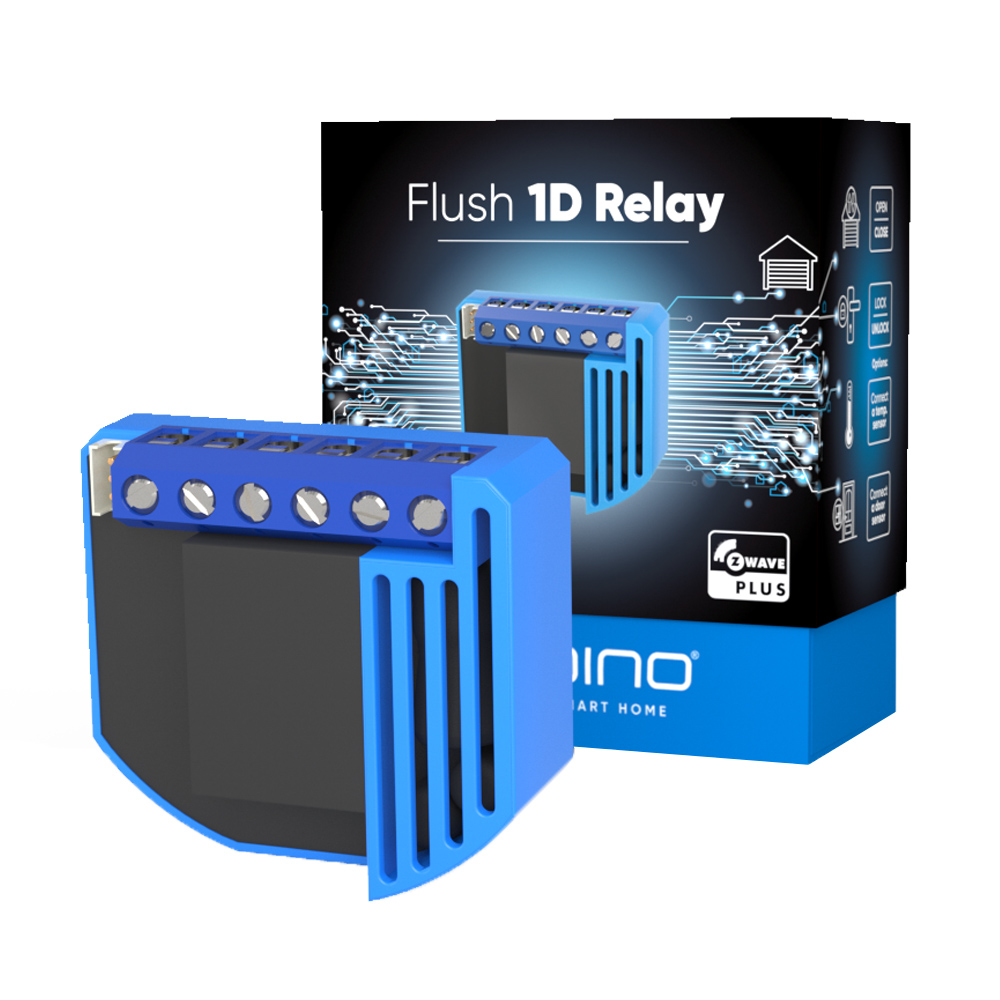

Name	Qubino Flush 1D relay
Short Description	Qubino Flush 1D relay is used for switching On or Off the electrical device. Output contact is voltage free (dry contact), so also loads with different power supply can be connected to the module.
Long Description	Qubino Flush 1D relay with voltage free (dry contact) output contact. This Z-Wave module is used for switching on or off the electrical device (e.g. light, fan, etc ...). The module can be controlled either through Z-wave network or through the wall switch. The module is designed to be mounted inside a “flush mounting box”, hidden behind a traditional wall switch. Module supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-wave network. Output contact is voltage free (dry contact), so also loads with different power supply can be connected to the module. FEATURES: - The module has the option to connect a digital temperature sensor - small dimensions (WxHxD) 41,8x36,8x15,4mm - power supply is 110 - 230 VAC ±10% 50/60Hz, 24-30VDC - Electrical consumption 0,4W
Brand	QUBINO
Product Identifier	ZMNHN
OEM Version	01
Hardware Platform	ZM5202
Z-Wave Version	6.51.06
Library Type	SLAVE_ENHANCED_232
Device Type	On/Off Power Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0159
Product Type ID	0x0002
Product ID	0x0053
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	All Lighting Devices, On/Off Switches/Devices
Countries / Regions	European Union
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Qubino_Flush 1D Relay PLUS extended manual_eng_2.2.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Group 1: Lifeline group (reserved for communication with the main controller), 1 node allowed.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 1 Input 1 switch type Defines the type of switch connected to Input 1 0 1 0 0 1 From To Description 1 1 bi-stable switch type 0 0 mono-stable switch type (push button) 2 Input 2 contact type Defines the type of switch connected to Input 2 0 1 0 0 0 From To Description 0 0 NO (normally open) input type 1 1 1 - NC (normally close) input type 11 Automatic turning off output after set time Support automatic turning off output after set time. When relay is ON it goes automatically OFF after time defined by this parameter. Timer is reset to zero each time the module receive ON command regardless from where it comes (push button, associated module, controller,..). 0 2 0 0 0 From To Description 1 32535 1 – 32535 = 1second (0,01s) – 32535 seconds (325,35s) Auto OFF enabled with define time, step is 1s or 10ms according to parameter nr.15 0 0 Auto OFF disabled 10 Activate / deactivate functions ALL ON/ALL OFF Support to activate / deactivate functions ALL ON/ALL OFF Flush 1D relay module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system. 0 2 0 0 255 From To Description 255 255 ALL ON active, ALL OFF active 0 0 ALL ON is not active ALL OFF is not active 1 1 ALL ON is not active ALL OFF active 2 2 ALL ON active ALL OFF is not active 63 Output Switch selection Support output Switch selection Set value means the type of the device that is connected to the output. The device type can be normally open (NO) or normally close (NC). 0 1 0 0 0 From To Description 1 1 When system is turned off the output is 230V or 24V (NO). 0 0 When system is turned off the output is 0V (NC). 100 Enable / Disable Endpoint I2 or select Notification Type and Event Support Enable / Disable Endpoint I2 or select Notification Type and Event Enabling I2, means that Endpoint (I2) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. NOTE: After parameter change module has to be reincluded into the network for the setting to take effect! 0 1 0 0 1 From To Description 0 0 Endpoint, I2 disabled 4 4 Water Alarm; Water Leak detected, unknown location. 6 6 Smoke Alarm; Smoke detected, unknown location. 3 3 Carbon Dioxide; Carbon Dioxide detected, unknown location. 1 1 Home Security; Motion Detection, unknown location 5 5 Heat Alarm; Overheat detected, unknown location. 2 2 Carbon Monoxide; Carbon Monoxide detected, unknown location. 110 Temperature sensor offset settings Defines temperature sensor offset settings Set value is added or subtracted to actual measured value by sensor. 0 2 0 0 32536 From To Description 1 100 value from 0.1C to 10.0C is added to actual measured temperature. 32536 32536 offset is 0.0C 1001 1100 value from -0.1C to -10.0C is subtracted to actual measured temperature. 120 Digital temperature sensor reporting Defines the digital temperature sensor reporting If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. 0 1 0 0 5 From To Description 0 0 Reporting disabled 1 127 0,1C – 12,7C, step is 0,1C
Texts	ID Description Value 1 Inclusion Module Inclusion (Adding to Z-wave network) • Connect module to power supply (with temperature sensor connected - if purchased), • auto-inclusion (works for about 5 seconds after connected to power supply) or • press service button S for more than 2 second or • press push button I1 three times within 3s (3 times change switch state within 3 seconds). NOTE: When connecting temperature sensor to module that has already been included, you have to exclude module first. Connect the sensor and re-include the module. 2 Exclusion Module Exclusion/Reset (Removing from Z-Wave network) • Connect module to power supply • bring module within maximum 1 meter (3 feet) of the main controller, • enable add/remove mode on main controller • press service button S for more than 6 second or • press push button I1 five times within 3s (5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply. By this function all parameters of the module are set to default values and own ID is deleted If service button S is pressed more than 2 and less than 6 second module is excluded, but configuration parameters are not set to default values. 5 Factory Reset Please use this procedure only in the event that your network primary controller is missing or otherwise inoperable. If the service button S is pressed for more than 6 seconds the module will be reset to the factory defoult state.
Supports NWI	Yes
Supports Explorer Frames	Yes
