Manual_Primary_Lang

Product or Owner's Manual

1

1

0

Lifeline group (reserved for communication with the main controller), 1 node allowed.

2

Input 2 switch type

Input 2 switch type

0

1

0

0

1

43

Power reporting in Watts by time interval for Q2

Set value means time interval (0 – 32535) in seconds, when power report is send.

0

2

0

0

300

63

Output Q1 Switch selection

Set value means the type of the device that is connected to the Q1 output. The device type can be normally open (NO) or normally close (NC).

0

1

0

0

0

42

Power reporting in Watts by time interval for Q1

Set value means time interval (0 – 32535) in seconds, when power report is send.

0

2

0

0

300

120

Digital temperature sensor reporting

If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter.

0

1

0

0

5

41

Power reporting in Watts on power change for Q2

Set value means percentage, set value from 0 – 100 = 0% - 100%

0

1

0

0

10

64

Output Q2 Switch selection

Set value means the type of the device that is connected to the Q2 output. The device type can be normally open (NO) or normally close (NC).

0

1

0

0

0

110

Temperature sensor offset settings

Set value is added or subtracted to actual measured value by sensor.

0

2

0

0

32536

1

Input 1 switch type

Input 1 switch type

0

1

0

0

1

11

Automatic turning off output Q1 after set time

When relay Q1 is ON it goes automatically OFF after time defined by this parameter. Timer is reset to zero each time the module receive ON command regardless from where it comes (push button, associated module, controller,..).

0

2

0

0

0

10

Activate / deactivate functions ALL ON/ALL OFF

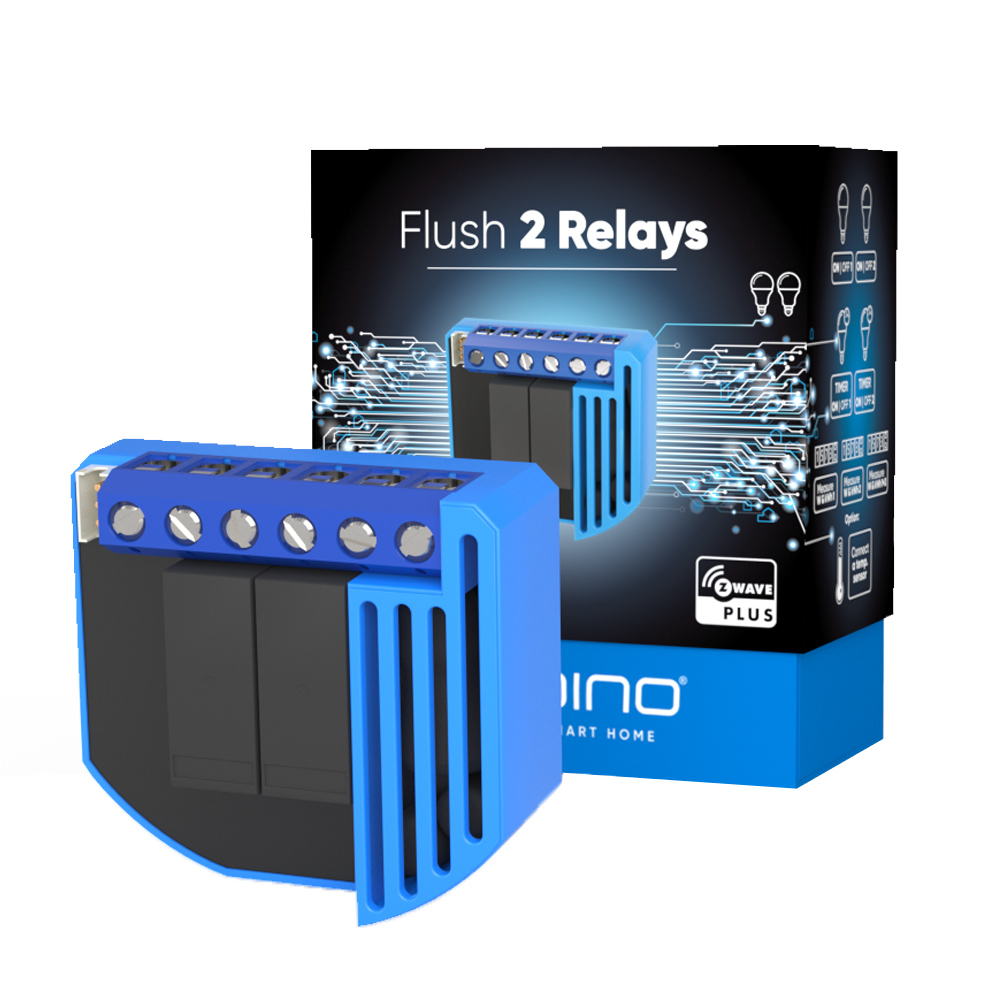

Activate / deactivate functions ALL ON/ALL OFF Flush 2 relays module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.

0

2

0

0

255

1

Inclusion

Module Inclusion (Adding to Z-Wave network) • Connect module to power supply (with temperature sensor connected - if purchased), • enable add/remove mode on main controller • auto-inclusion (works for about 5 seconds after connected to power supply) or • press service button S for more than 2 second or • press push button I1 three times within 3s (3 times change switch state within 3 seconds). NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply , connect the sensor and re-include the module.

2

Exclusion

Module Exclusion/Reset (Removing from Z-Wave network) • Connect module to power supply • bring module within maximum 1 meter (3feet) of the main controller, • enable add/remove mode on main controller, • press service button S for more than 6 second or • press push button I1 five times within 3s ( 5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply. By this function all parameters of the module are set to default values and own ID is deleted. If service button S is pressed more than 2 and less than 6second module is excluded, but configuration parameters are not set to default values

5

Factory Reset

Please use this procedure only in the event that your network primary controller is missing or otherwise inoperable. If the service button S is pressed for mor ethan 6 seconds the module will be reset to the factory defoult state

6

Additional Special Features

- The module has the option to connect a digital temperature sensor - small dimensions (WxHxD) 41,8x36,8x15,4mm - power supply is 110 - 230 VAC ±10% 50/60Hz, 24-30VDC - Electricity consumption 0,4W
