Product Recognition

Certification Number

ZC10-16125357

Name

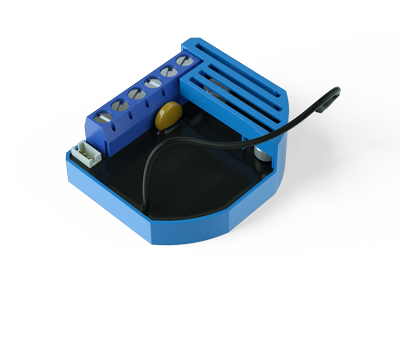

Qubino Flush Dimmer

Short Description

Used for light dimming or managing fan speed.

Long Description

This Z-Wave module is used for dimming the bulb or to manage the speed of a fan. The module can be controlled either through a Z-Wave network or through the wall switch. The module is designed to be mounted inside a “flush mounting box”, hidden behind a traditional wall switch. Module measures power consumption of bulb or fan and supports connection of digital temperature sensor. It is designed to act as repeater in order to improve range and stability of Z-wave network.

Brand

QUBINO

Product Identifier

ZMNHDD2

OEM Version

HW: 3 FW: 3.03:03.03

Hardware Platform

ZM5202

Z-Wave Version

6.51.07

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0159

Product Type ID

0x0001

Product ID

0x0051

User Icon

0x1C00

Installer Icon

0x1C00

Frequency Plans

ANZ: 919.80MHz, 921.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices

Countries / Regions

Australia

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Input 3 contact type

Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - NO (normally open) input type • 1 - NC (normally close) input type

From	To	Description
0	0	NO (normally open) input type.
1	1	NC (normally close) input type.

Automatic turning off output after set time

Available config. parameters (data type is 2 Byte DEC): • default value 0 • 0 - Auto OFF disabled • 1 - 32536 = 1second - 32536 seconds Auto OFF enabled with define time, step is 1 second.

From	To	Description
0	0	Auto OFF disabled.
1	32536	1 second - 32536 seconds Auto OFF enabled with define time, step is 1 second.

Input 2 contact type

Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - NO (normally open) input type • 1 - NC (normally close) input type

From	To	Description
0	0	NO (normally open) input type.
1	1	NC (normally close) input type.

Input 2 switch type

Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero • 1 - bi-stable switch type NOTE: to enable this function, Parameter 20 or Parameter 100 has to be set.

From	To	Description
1	1	Bi-stable switch type.
0	0	Mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero.

Dimming time (soft on/off)

Set value means time of moving the Dimmer between min. and max. dimming values by short press of push button I1 or controlled through UI (BasicSet). Available configuration parameters (data type is 2 Byte DEC): • default value 100 = 1s • 50 - 255 = 500 mseconds - 2550 mseconds (2,55s), step is 10 mseconds

100

From	To	Description
100	100	1s
50	255	00 mseconds - 2550 mseconds (2,55s), step is 10 mseconds.

Dimming time when key pressed

Time of moving the Dimmer between min. and max dimming values by continues hold of push button I1 or associated device. Available configuration parameters (data type is 2 Byte DEC): • default value 3 = 3s • 1- 255 = 1 second – 255 seconds

From	To	Description
3	3	3s
1	255	1 second – 255 seconds

Ignore start level

This parameter is used with association group 3. A receiving device SHOULD respect the start level if the Ignore Start Level bit is 0. A receiving device MUST ignore the start level if the Ignore Start Level bit is 1. Available configuration parameters (data type is 1 Byte DEC): • default value 0 • 0 - respect start level • 1 - ignore start level

From	To	Description
0	0	Respect start level.
1	1	Ignore start level.

Dimming duration

This parameter is used with association group 3. The Duration field MUST specify the time that the transition should take from the current value to the new target value. A supporting device SHOULD respect the specified Duration value. Available configuration parameters (data type is 1 Byte DEC): • default value 0 (dimming duration according to parameter 66) • 1 - 127 (from 1 to 127 seconds)

From	To	Description
0	0	Dimming duration according to parameter 66.
1	127	From 1 to 127 seconds.

110

Temperature sensor offset settings

Set value is added or subtracted to actual measured value by sensor. Available configuration parameters (data type is 2 Byte DEC): • default value 32536 • 32536 - offset is 0.0°C • From 1 to 100 - value from 0.1 °C to 10.0 °C is added to actual measured temperature. • From 1001 to 1100 - value from -0.1°C to -10.0°C is subtracted to actual measured temperature.

32536

From	To	Description
32536	32536	Offset is 0.0 °C
1	100	Value from 0.1 °C to 10.0 °C is added to actual measured temperature.
1001	1100	value from -0.1 °C to -10.0 °C is subtracted to actual measured temperature.alue from -0.1 °C to -10.0 °C is subtracted to actual measured temperature.

120

Temperature sensor reporting

If digital temperature sensor is connected, module reports measured temperature on temperature change defined by this parameter. Available configuration parameters (data type is 1 Byte DEC): • default value 5 = 0,5°C change • 0 - reporting disabled • 1 - 127 = 0,1°C - 12,7°C, step is 0,1°C

From	To	Description
5	5	0,5°C change.
0	0	Reporting disabled.
1	127	0,1°C - 12,7°C, step is 0,1°C.

250

Unsecure / Secure Inclusion

Available configuration parameter (data type is 1 Byte Dec): • default Value 0 • 0 – Unsecure Inclusion • 1 – Secure Inclusion A Flush dimmer supports secure and unsecure inclusion. Even if the controller does not support security command classes, a dimmer could be included as unsecure and keep all the functionality.

From	To	Description
0	0	Unsecure Inclusion.
1	1	Secure Inclusion.

Power reporting in Watts by time interval

Set value means time interval (0 - 32767) in seconds, when power report is send. Available configuration parameters (data type is 2 Byte DEC): • default value 0 • 0 - reporting disabled • 1 - 32767 = 1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value.

From	To	Description
0	0	Reporting disabled.
1	32767	1 second - 32767 seconds. Reporting enabled. Power report is send with time interval set by entered value.

Minimum dimming value

Available config. parameters (data type is 1 Byte DEC): • default value 1 = 1% (minimum dimming value) • 1- 98 = 1% - 98%, step is 1%. Minimum dimming values is set by entered value. NOTE: The minimum level may not be higher than the maximum level! 1% min. dimming value is defined by Z-Wave multilevel device class.

From	To	Description
1	1	1% (minimum dimming value)
1	98	1% - 98%, step is 1%. Minimum dimming values is set by entered value.

Maximum dimming value

Available config. parameters (data type is 1 Byte DEC): • default value 99 = 99% (Maximum dimming value) • 2- 99 = 2% - 99%, step is 1%. Maximum dimming values is set by entered value. NOTE: The maximum level may not be lower than the minimum level! 99% max. dimming value is defined by Z-Wave multilevel device class.

From	To	Description
99	99	99% (Maximum dimming value).
2	99	2% - 99%, step is 1%. Maximum dimming values is set by entered value.

Activate / deactivate functions ALL ON / ALL OFF

Available config. parameters (data type is 2 Byte DEC): • default value 255 • 255 - ALL ON active, ALL OFF active. • 0 - ALL ON is not active, ALL OFF is not active • 1 - ALL ON is not active, ALL OFF active • 2 - ALL ON active, ALL OFF is not active Flush Dimmer module responds to commands ALL ON / ALL OFF that may be sent by the main controller or by other controller belonging to the system.

255

From	To	Description
255	255	ALL ON active, ALL OFF active.
0	0	ALL ON is not active, ALL OFF is not active.
1	1	ALL ON is not active, ALL OFF active.
2	2	ALL ON active, ALL OFF is not active.

101

Enable / Disable Endpoints I3 or select Notification Type and Event

Enabling I3 means that Endpoint (I3) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Available configuration parameters (data type is 1 Byte DEC): Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I3 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security.

From	To	Description
0	0	Endpoint, I3 disabled.
1	1	Home Security; Motion Detection, unknown loc.
2	2	CO; Carbon Monoxide detected, unknown loc..
3	3	CO2; Carbon Dioxide detected, unknown loc.
4	4	Water Alarm; Water Leak detected, unknown loc.
5	5	Heat Alarm; Overheat detected, unknown loc.
6	6	Smoke Alarm; Smoke detected, unknown loc.
9	9	Sensor binary.

Input 1 switch type

Available config. parameters (data type is 1 Byte DEC): • default value 0 • 0 - mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero • 1 - bi-stable switch type NOTE: Switch connected to S1 terminal is a master switch. It activates the basic functionality of the Dimmer

From	To	Description
0	0	Mono-stable switch type (push button) – button quick press turns between previous set Dimmer value and zero.

100

Enable / Disable Endpoints I2 or select Notification Type and Event

Enabling I2 means that Endpoint (I2) will be present on UI. Disabling it will result in hiding the endpoint according to the parameter set value. Additionally, a Notification Type and Event can be selected for the endpoint. Available configuration parameters (data type is 1 Byte DEC): Endpoint device type selection: - notification sensor (1 - 6): GENERIC_TYPE_SENSOR_NOTIFICATION, SPECIFIC_TYPE_NOTIFICATION_SENSOR • default value 0 • 1 - Home Security; Motion Detection, unknown loc. • 2 - CO; Carbon Monoxide detected, unknown loc. • 3 - CO2; Carbon Dioxide detected, unknown loc. • 4 - Water Alarm; Water Leak detected, unknown loc. • 5 - Heat Alarm; Overheat detected, unknown loc. • 6 - Smoke Alarm; Smoke detected, unknown loc. • 0 - Endpoint, I2 disabled - sensor binary (9): GENERIC_TYPE_SENSOR_BINARY, SPECIFIC_TYPE_NOT_USED • 9 - Sensor binary NOTE1: After parameter change, first exclude module (without setting parameters to default value) then wait at least 30s and then re include the module! NOTE 2: When the parameter is set to value 9 the notifications are send for Home Security.

From	To	Description
0	0	Endpoint, I2 disabled.
1	1	Home Security; Motion Detection, unknown loc.
2	2	CO; Carbon Monoxide detected, unknown loc.
3	3	CO2; Carbon Dioxide detected, unknown loc.
4	4	Water Alarm; Water Leak detected, unknown loc.
5	5	Heat Alarm; Overheat detected, unknown loc.
6	6	Smoke Alarm; Smoke detected, unknown loc.
9	9	Sensor binary.

Texts

ID	Description	Value
1	Inclusion	• Connect module to power supply (with temperature sensor connected - if purchased), • enable add/remove mode on main controller • auto-inclusion (works for about 2 minutes after connected to power supply) or • press push button I1 three times within 3s (3 times change switch state within 3 seconds) or • press service button S (only applicable for 24 V SELV supply voltage) for more than 2 second. NOTE1: For auto-inclusion procedure, first set main controller into inclusion mode and then connect module to power supply. NOTE2: When connecting temperature sensor to module that has already been included, you have to exclude module first. Switch off power supply, connect the sensor and re-include the module.
2	Exclusion	• Connect module to power supply • bring module within maximum 1 meter (3feet) of the main controller, • enable add/remove mode on main controller, • press push button I1 five times within 3s ( 5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. By this function all parameters of the module are set to default values and own ID is deleted. If push button I1 is pressed three times within 3s (or service button S is pressed more than 2 and less than 6 seconds) module is excluded, but configuration parameters are not set to default values. NOTE: If the module is included with parameters 100 or 101 with values different to default and module reset is done, wait at least 30s before next inclusion
5	Factory Reset	• press push button I1 five times within 3s ( 5 times change switch state within 3 seconds) in the first 60 seconds after the module is connected to the power supply or • press service button S (only applicable for 24 V SELV supply voltage) for more than 6 second. Please use reset procedure only when the network primary controller is missing or otherwise inoperable.

Supported / Controlled Meter Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes
