Product Recognition | |
|---|
Certification Number | ZC10-19076686 |
|---|

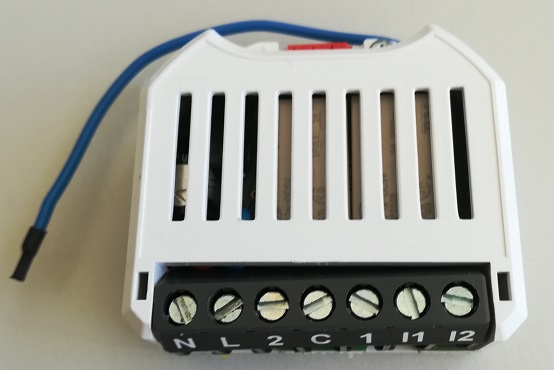

Name | Radio Switch Dual Plus |
|---|
Short Description | The myTEM Radio Switch Dual Plus is a universal, Z-Wave compatible wall or ceiling switch. |
|---|
Long Description | The myTEM Radio Switch Dual Plus is a universal, Z-Wave compatible wall or ceiling switch (ON/OFF) and is used to control two electrical devices. Two additional digital inputs and the programmable behav-ior to the wireless commands allow flexible use in the house. Optionally, a myTEM Touch Add-on control panel can be attached to the connector.
The device is intended for installation in a flush-mounted box. |
|---|
Brand | myTEM SmartHome |
|---|
Product Identifier | MTSWI-101-WL |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x034E |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0008 |
|---|
User Icon | 0x0704 |
|---|
Installer Icon | 0x0704 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors, All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_BINARY | Sensor Binary | 0x30 | 1 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_SWITCH_BINARY_V2 | Switch Binary V2 | 0x25 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SENSOR_MULTILEVEL_V11 | Sensor Multilevel V11 | 0x31 | 11 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SWITCH_COLOR | Switch Color | 0x33 | 1 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Switch Type | | Electric Load Type | Value |
|---|
Incandescent | ELV (Electronic) | Inductive (e.g. Motor) |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Loads Controlled | | Sensors | Value |
|---|
Air Temperature | Humidity |
| Supported Notification Types | Value |
|---|
Power Management | System |
| Switch Load Capacity Current | | Color | | Switch Load Capacity Volt-Ampere | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
3 | 5 | 0 | Binary Switch Report; sent when the output 2 changes state | 4 | 5 | 0 | Binary Sensor Report; sent when the input 1 changes state | 5 | 5 | 0 | Binary Sensor Report; sent when the input 2 changes state | 1 | 5 | 0 | Z-Wave Plus Lifeline
System / Heartbeat; sent periodically (see Configuration Parameter Heartbeat)
Power Mangement / Power has been applied; sent after Powerup and Reset | 2 | 5 | 0 | Binary Switch Report; sent when the output 1 changes state |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Heartbeat Rate | If the notification System Heartbeat is on, a notification report System Heartbeat is sent periodically every 60 minutes (default value). | 0 | 2 | 1 | 1440 | 60 | From | To | Description |
|---|
1 | 1440 | Heartbeat rate [min] |
| 5 | Minimum Delta Humidity Send | When the humidity changes this anount the temperature value is sent by a Multilevel Sensor Report. | 0 | 2 | 10 | 1000 | 10 | From | To | Description |
|---|
10 | 1000 | Minimum delta humidity [0.1 %] |
| 3 | Minum Delta Temperature Send | When the temperature changes this anount the temperature value is sent by a Multilevel Sensor Report. | 0 | 2 | 1 | 100 | 5 | From | To | Description |
|---|
1 | 100 | Minimum delta temperature [0.1 K] |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | Manual exclusion (“Remove”)
1. Activate the “Remove” mode on your controller.
2. When 110 – 230 VAC is used, press a button connected to input I1 or I2 four times in quick succession to start exclude (“Remove”). If a switch is used instead of the button, it must be changed accordingly eight times.
3. Alternatively, when 24 VDC is used, you can press the small lever (T) four times in quick succession with a pen to start “Remove”.
When finished, the new status is:
Add: The LED lights up briefly in green
Remove: The LED lights up briefly in red | 1 | Inclusion | Automatic inclusion (“Add”)
The device supports the so-called auto-inclusion. To use this function the device must be in factory default.
1. Activate the “Add” mode on your controller.
2. Turn on the power and the unit starts in its own Add mode for 30 seconds. If the connection is successful, the device registers on the controller.
When the device is in the “Add” mode, the LED flashes green. When finished, the new status is:
Add: The LED lights up briefly in green
Remove: The LED lights up briefly in red.
Manual inclusion (“Add”)
1. Activate the “Add” mode on your controller.
2. When 110 – 230 VAC is used, press a button connected to input I1 or I2 four times in quick succession to start include (“Add”). If a switch is used instead of the button, it must be changed accordingly eight times.
3. Alternatively, when 24 VDC is used, you can press the small lever (T) four times in quick succession with a pen to start “Add”.
When the device is in the “Add” mode, the LED flashes green. When finished, the new status is:
Add: The LED lights up briefly in green
Remove: The LED lights up briefly in red | 5 | Factory Reset | Reset to factory default
If the myTEM Radio Switch Dual Plus shows status “Add”, the “Remove” can be performed with any controller in the network or with the help of a new controller. However it is recommended to use the primary controller of the previous network unless it is no longer available or damaged.
“Remove” deletes the memory chip, including all Z-Wave network and custom configuration settings. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Power Management | (Refer to parameters): State idle | System | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Humidity |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
