Product Recognition
Certification Number	ZC10-17055588

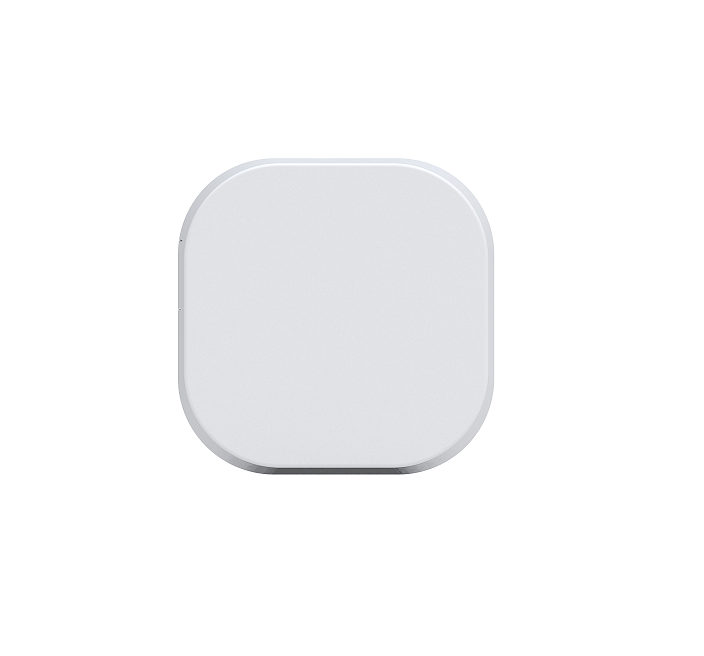

Name	Range Extender
Short Description	Oomi Range Extender is a Z-Wave repeater.
Long Description	Oomi Range Extender is a Z-Wave mesh network repeater which can extend the range of communication between Z-Wave products and assist other devices to reach each other in your Z-Wave network. The Range Extender can also communicate securely via AES 128 wireless Z-Wave commands and supports Over-The-Air (OTA) firmware upgrades.
Brand	Oomi
Product Identifier	FT118-C15
OEM Version	HW: 117 FW: 1.03
Hardware Platform	ZM5101
Z-Wave Version	6.51.09
Library Type	SLAVE_ENHANCED_232
Device Type	Repeater
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x016A
Product Type ID	0x0004
Product ID	0x0075
User Icon	0x1B00
Installer Icon	0x1B00
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Network Devices
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_SWITCH_MULTILEVEL_V2 Switch Multilevel V2 0x26 2 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_SWITCH_COLOR Switch Color 0x33 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Oomi Range Extender manual.pdf
Features	Feature Values Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 The association group 1 is the Z-Wave Lifeline group. The Device Reset Locally Notification CC can be sent to the associated node in association group 1.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 82 Set the default status of the LED when the Range Extender relays Z-Wave message Set the default status of the LED when the Range Extender relays Z-Wave message 0 1 0 0 0 From To Description 0 0 The Green LED will remain ON for 2 seconds. 1 1 The LED remains OFF state. 252 Enable/disable Lock Configuration Enable/disable to lock Configuration parameters. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 254 Device tag Set a device tag for your Range Extender. 0 2 0 0 0 From To Description 1 32767 The available value range is 1 to 32767. 255 Reset the Bulb Reset the Bulb to factory default. 0 4 0 0 0 From To Description 1431655765 1431655765 Reset the bulb to factory default. 0 0 Reset all configuration parameters to factory default settings
Texts	ID Description Value 5 Factory Reset Press and hold the Z-Wave Button for 20 seconds and then release it. Use this procedure only in the event that your primary network controller is missing or inoperable. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, press the Z-Wave Button on Range Extender 6. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, press the Z-Wave Button on Range Extender 6.
Supports NWI	Yes
Supports Explorer Frames	Yes
