Product Recognition
Certification Number	ZC10-16095239

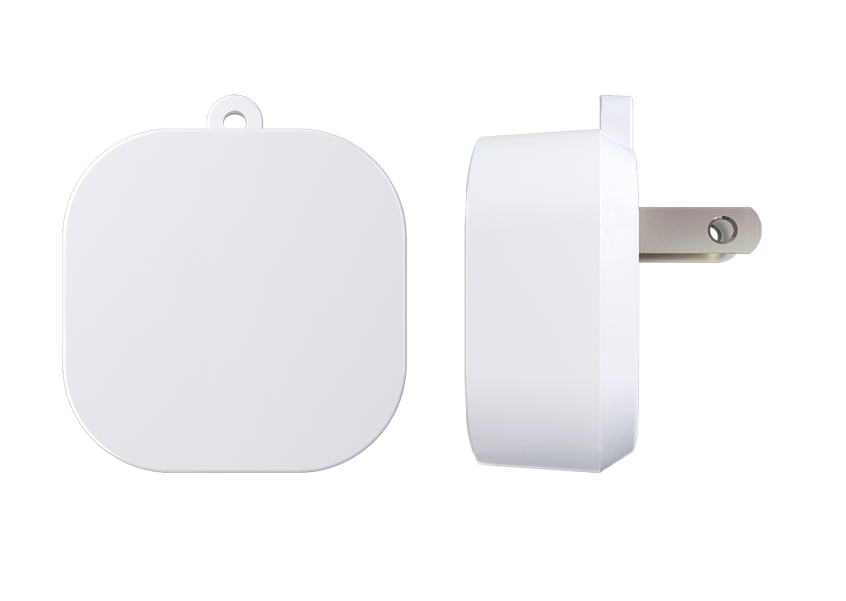

Name	Range Extender 6
Short Description	Aeotec Range Extender 6 is a Z-Wave repeater.
Long Description	Aeotec Range Extender is a Z-Wave mesh network repeater which can extend the range of communication between Z-Wave products and assist other devices to reach each other in your Z-Wave network. The Range Extender can also communicate securely via AES 128 wireless Z-Wave commands and supports Over-The-Air (OTA) firmware upgrades.
Brand	Aeotec
Product Identifier	ZW117-A01
OEM Version	HW: 117 FW: 1.03
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Repeater
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0086
Product Type ID	0x0104
Product ID	0x0075
User Icon	0x1B00
Installer Icon	0x1B00
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Network Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Range Extender 6 manual.pdf
Features	Feature Values Color Value White Firmware Updatable Value Updatable by Consumer by RF
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 The association group 1 is the Z-Wave Lifeline group. The Device Reset Locally Notification CC can be sent to the associated node in association group 1.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 255 Reset the Bulb Reset the Bulb to factory default. 0 4 0 0 0 From To Description 0 0 Reset all configuration parameters to factory default settings 1431655765 1431655765 Reset the bulb to factory default. 200 Partner ID Set the partner ID of product. 0 1 0 0 0 From To Description 1 1 Other partners. 0 0 Aeon Labs standard product 252 Enable/disable Lock Configuration Enable/disable to lock Configuration parameters. 0 1 0 0 0 From To Description 0 0 Disable 1 1 Enable 254 Device tag Set a device tag for your Range Extender. 0 2 0 0 0 From To Description 1 32767 The available value range is 1 to 32767. 82 Set the default status of the LED when the Range Extender relays Z-Wave message Set the default status of the LED when the Range Extender relays Z-Wave message 0 1 0 0 0 From To Description 0 0 The Green LED will remain ON for 2 seconds. 1 1 The LED remains OFF state.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, press the Z-Wave Button on Range Extender 6. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, press the Z-Wave Button on Range Extender 6. 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 5 Factory Reset Press and hold the Z-Wave Button for 20 seconds and then release it. Use this procedure only in the event that your primary network controller is missing or inoperable.
Supports NWI	Yes
Supports Explorer Frames	Yes
