Product Recognition | |
|---|
Certification Number | ZC10-18076183 |
|---|

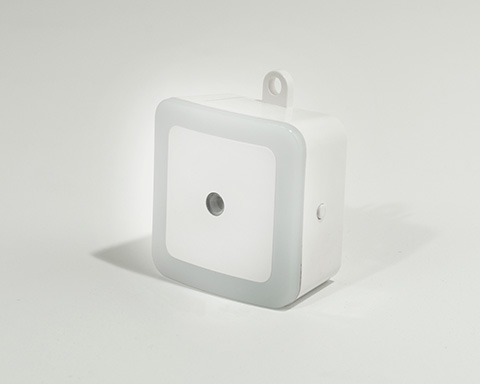

Name | Range Extender |
|---|
Short Description | The Dome Range Extender is designed to improve communication between Z-Wave devices by amplifying Z-Wave signals. |
|---|
Long Description | The Dome Range Extender is designed to improve communication between Z-Wave devices. It amplifies
Z-Wave signals and increases the reach of your controller, ensuring your devices stay connected. The
Extender has an LED light that works as a nightlight and can also act as an indicator in regular mode.
The included suction cup lets you mount the Extender onto any smooth surface while using a micro USB
power supply. All these features make the Dome Range extender the perfect choice for your home. |
|---|
Brand | Dome |
|---|
Product Identifier | DMEX1 |
|---|
OEM Version | HW: 1 FW: 1.01 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Repeater |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x021F |
|---|
Product Type ID | 0x0003 |
|---|
Product ID | 0x0108 |
|---|
User Icon | 0x1B00 |
|---|
Installer Icon | 0x1B00 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Network Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Night Light "Off" Threshold | This parameter sets the luminance (brightness) level at which night light is turned off. This is a unitless value that can be set to any value from 0 - 10, with a default value of 5. The higher this value, the brighter the ambient light must be to turn off the night light. | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
0 | 10 | Night light OFF Threshold |
| 2 | Night Light "On" Threshold | This parameter sets the luminance (brightness) level at which night light is turned on. This is a unitless value that can be set to any value from 0 - 10, with a default value of 5. The higher this value, the brighter the ambient light must be to turn on the night light. | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
1 | 10 | Night light ON Threshold |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | Press and hold the Z-Wave Button for 10 seconds and then release it.
Use this procedure only in the event that your primary network controller is missing or inoperable. | 1 | Inclusion | Turn the primary controller of Z-Wave network into inclusion mode, press the Z-Wave Button on Range Extender 3 times | 2 | Exclusion | Turn the primary controller of the Z-Wave network into exclusion mode, press the Z-Wave Button on Range Extender 3 times. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
