Product Recognition | |
|---|---|
Certification Number | ZC14-22030088 |

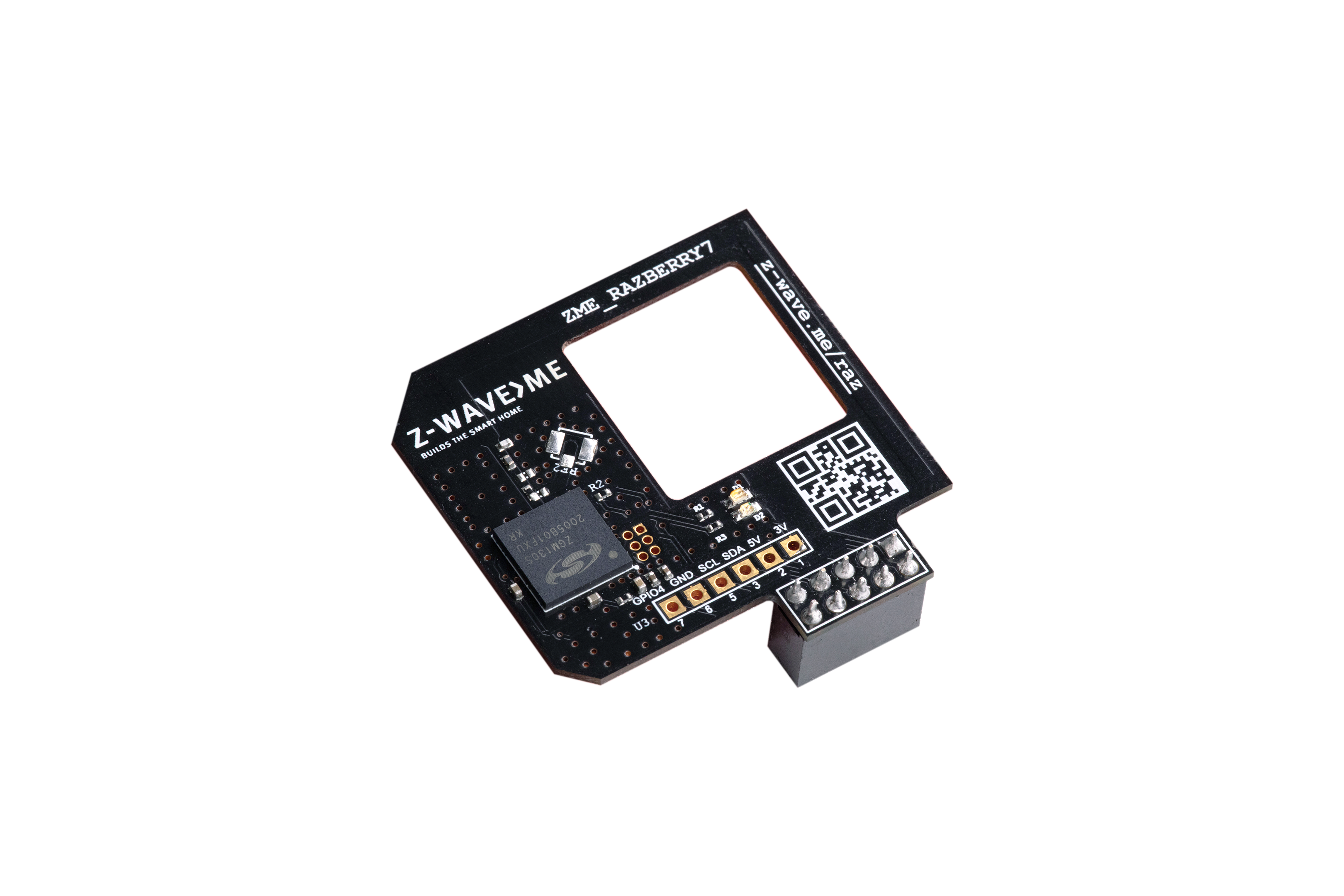

Name | RaZberry 7 - Z-Wave Shield for Raspberry Pi |
Short Description | Turns your Raspberry Pi into a Z-Wave™ Smart Home Gateway. Comes with Z-Way software but can also run with third-party solutions that use Z-Wave Serial API. |

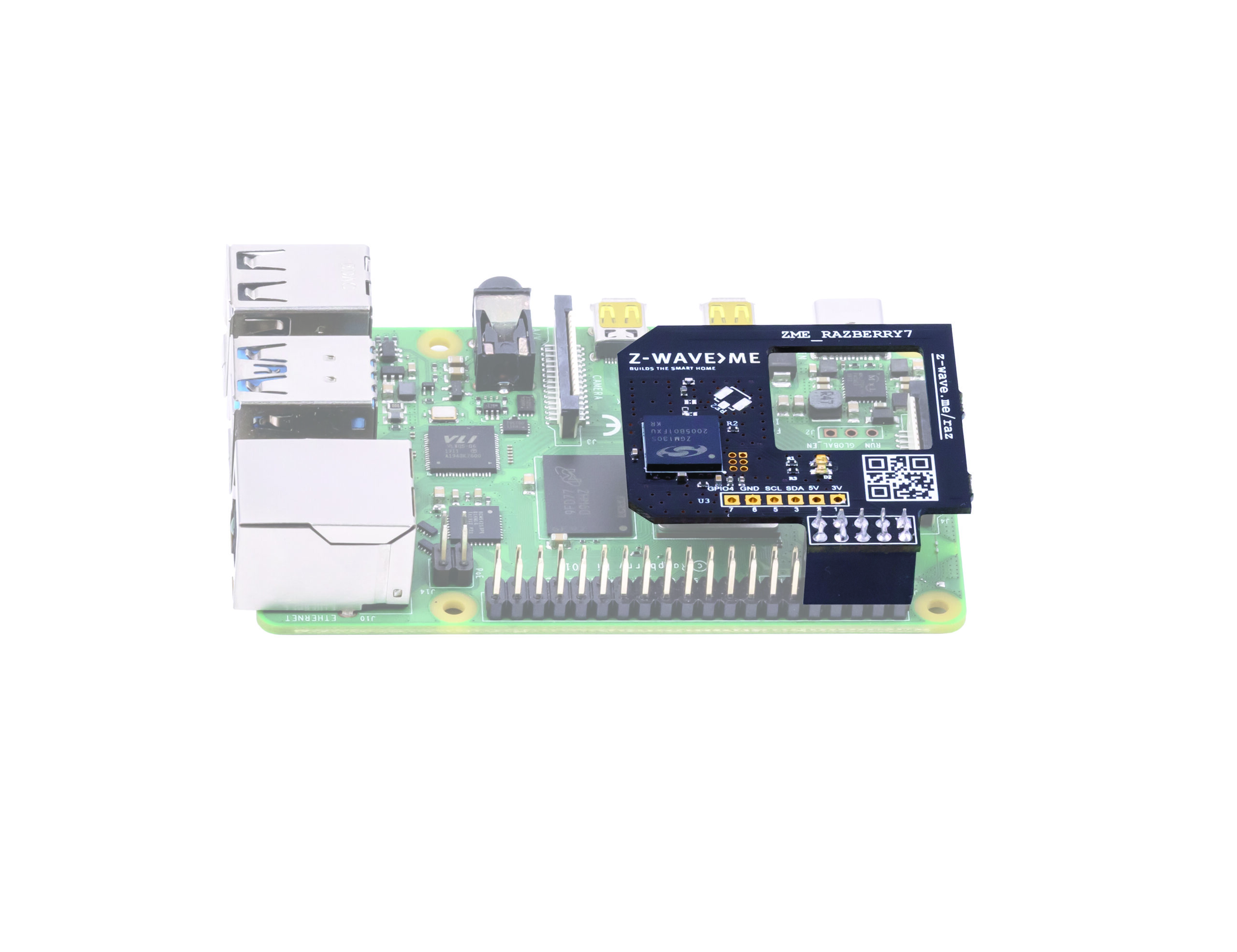

Long Description | Designed for Raspberry Pi: compatible with Raspberry Pi 1, 2, 3A, 3B, 3A+, 3B+, 4B and even Orange Pi.
Compatible with open-source projects: Home Assistant, OpenHAB, Domoticz, OpenZWave, FHEM and others.
Z-Wave™ 7th generation inside. Built-in Z-Wave network diagnostics tools. Supports Z-Wave Plus™ V2, Security S2, SmartStart and Long Range. Z-Wave.Me advanced features (on top of the standard Silicon Labs Z-Wave Serial API): Static Serial API to support open-source software, Backup & restore function, Zniffer to monitor Z-Wave traffic, Tunable transmit power for a bigger range, Network diagnostics tools to improve network health, Jamming detection to protect from network DoS attacks. |
Brand | Z-Wave.Me |
Product Identifier | ZME_RAZBERRY7 |
Product Line | RaZberry |
OEM Version | HW: 704113 FW: 00.00 |
Hardware Platform | ZGM130S037HGN2 / ZGM130S037HGN1 |
Z-Wave Version | 7.16.3 |
Library Type | CONTROLLER_BRIDGE |
Device Type | HARDWARE_DEVICE |
Frequency Plans | US_LR: 912.00MHz, 920.00MHz |
Categories | Gateway Controller, Computer Controller Interfaces |
Countries / Regions | United States of America |
Documents | |
Features | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave LR (m) | 400 |
