Product Recognition | |
|---|
Certification Number | ZC10-19056475 |
|---|

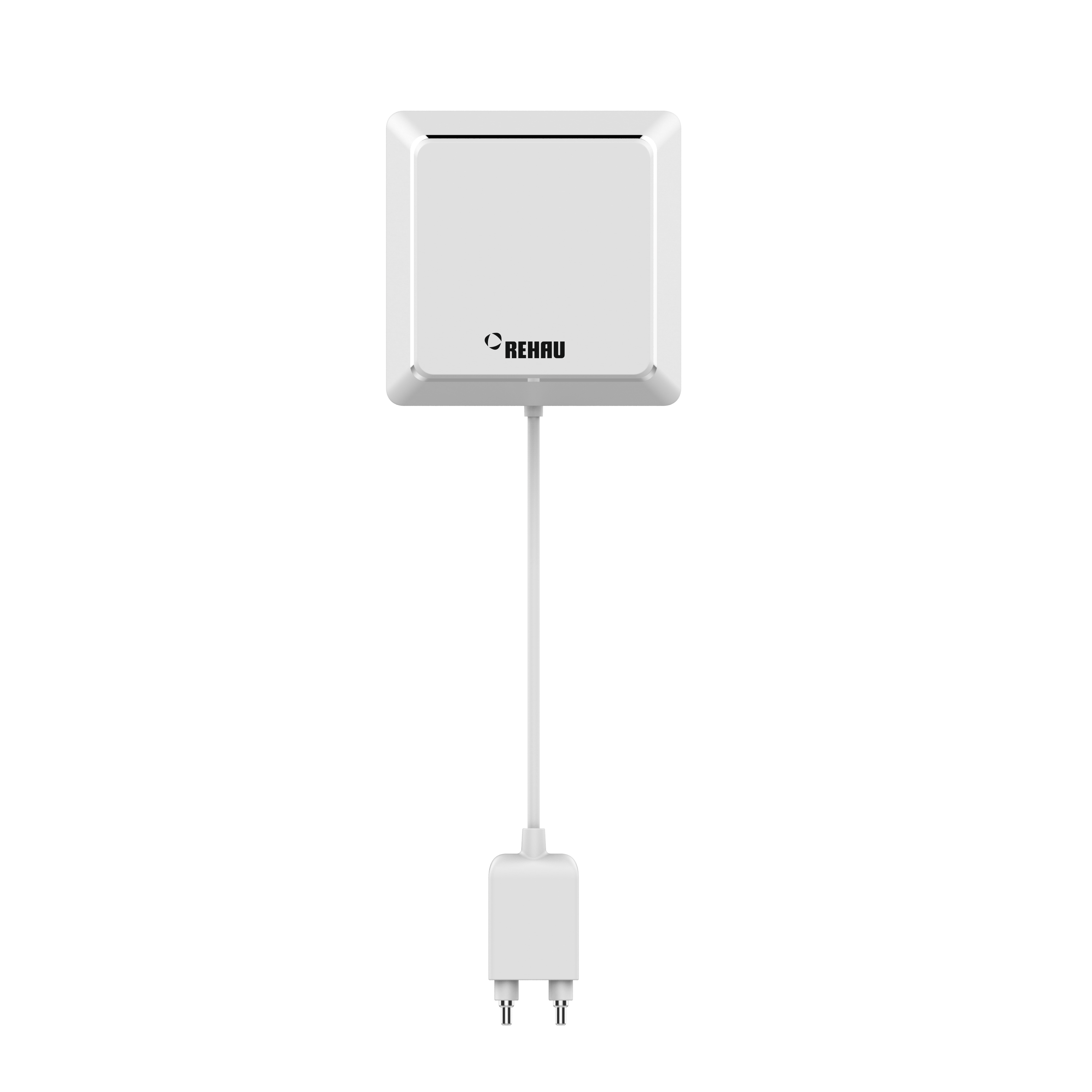

Name | RE.GUARD Water Sensor |
|---|
Short Description | RE.GUARD Water Sensor is a wireless sensor powered by ER14250
battery. It is used for detecting water overflowing. |
|---|
Long Description | RE.GUARD Water Sensor is a wireless sensor powered by ER14250
battery. It is used for detecting water overflowing. It can communicate
with an associated Z-Wave device, such as RE.GUARD Water Control,
Siren, Smart Switch, etc.
The features list:
1) Z-Wave Plus certified for wide compatibility (500 serials product).
2) Supports security 0 and security 2 protected mode with AES-128 encryption.
3) Contains an extension water detecting probe.
4) Temperature measurement.
5) The battery life is up to 1 year.
6) Support low battery alarm function.
7) Support firmware OTA. |
|---|
Brand | REHAU |
|---|
Product Identifier | 14573101001 |
|---|
OEM Version | HW: 1 FW: 1.03 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.01 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0413 |
|---|
Product Type ID | 0x021a |
|---|
Product ID | 0x0002 |
|---|
User Icon | 0x0C00 |
|---|
Installer Icon | 0x0C00 |
|---|
Frequency Plans | RU: 869.00MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | Russian Federation |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_NOTIFICATION_V3 | Notification V3 | 0x71 | 3 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V5 | Notification V5 | 0x71 | 5 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V3 | Firmware Update Meta-Data V3 | 0x7A | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Sensors | | Battery Quantity | | Battery Type | | Supported Notification Types | Value |
|---|
Heat Alarm | Water Alarm | Home Security |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 5 | 0 | Z-Wave Plus Lifeline: 1. Notification Report. Sensor will send Notification Report to the associated nodes 2. Battery Report. Sensor will send Battery Report when the battery level is low and the battery report’s value is 0xFF. 3. Device Reset Locally Notification. Sensor will send Device Reset Locally Notification when reset 4.Sensor multilevel report When associated to Group 1, you can adjust the temperature reporting cycle according to the configuration settings. | 2 | 5 | 0 | 1. Basic Set. Water Sensor will send Basic Set to associated nodes when Water leak detected.
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
17 | Set resend flooding alarm interval (minute) | How much time interval is reported by flooding alarm. | 0 | 1 | 0 | 0 | 5 | From | To | Description |
|---|
1 | 240 | The higher the value, the long the report periodically - in decimal values from 1 to 240 |
| 24 | Enable/Disable blinking LED when alarm being triggered | Whether the light flashes when the alarm occurs. when the value is 0, the product will not alarm when being triggered; when the value is 1, the product will alarm when being triggered | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | Disable | 1 | 1 | Enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
4 | Device Wake-Up | Press and hold the Z button for more than 3 seconds and release. | 5 | Factory Reset | 1)Power on the device
2) Press and hold the Z button for more than 20 seconds
3)If holding time more than 20 seconds, the LED indicator will keep on for 2 seconds, which means resetting is complete.
The reset feature works only when the device has been included into a Z-Wave network.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | 1 | Inclusion | 1) Open the cover.
2) Place the device within the direct range of your Z-Wave controller.
3) Set the main controller in add mode (see the controller’s manual).
4) Click the Z-button once or triple click the Z-button quickly, the LED indicator should blink fast.
5) Wait for the adding process to end.
6) Successful adding will be confirmed by the Z-Wave controller’s message. | 2 | Exclusion | ) Open the cover.
2) Place the device within the direct range of your Z-Wave controller.
3) Set the main controller remove mode (see the controller’s manual).
4) Triple click the Z-button quickly, the LED indicator should blink fast.
5) Wait for the removing process to end.
6) Successful adding will be confirmed by the Z-Wave controller’s message. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Heat Alarm | (Refer to parameters): State idle | Water Alarm | (Refer to parameters): State idle | Home Security | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
