Product Recognition
Certification Number	ZC10-19066570

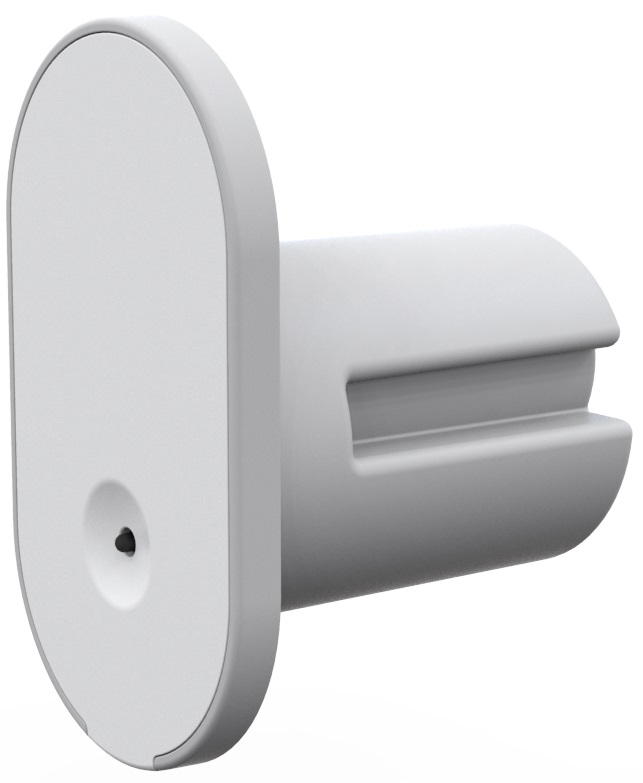

Name	Recessed Door Sensor
Short Description	PSM09 is only for indoor using device. PSM09 can detect the the door is open or not. Those newest features of the Z-WaveTM technology. Z-WaveTM is a wireless ommunication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments.
Long Description	PSM09 is only for indoor using device. PSM09 can detect the the door is open or not. The Recessed door sensor PSM09 is Base on Z-WaveTM technology. It is the Z-WaveTM plus product, it support the security, OTA. Those newest features of the Z-WaveTM technology. Z-WaveTM is a wireless communication protocol designed for home automation, specifically to remotely control applications in residential and light commercial environments. The technology uses a low-power RF radio embedded or retrofitted into home electronics devices and systems, such as lighting, home access control, entertainment systems and household appliances. Notice: if user use some command, it have to check device is security bootstrap otherwise some command cannot increment. This device is a security enabled Z-Wave Plus product that is able to use encrypted Z-Wave Plus messages to communicate to other security enabled Z-Wave Plus products. This device must be used in conjunction with a Security Enabled Z-Wave Controller in order to fully utilize all implemented functions. This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
Brand	Philio
Product Identifier	PSM09-A
OEM Version	HW: 255 FW: 0.10
Hardware Platform	SD3502
Z-Wave Version	6.81.04
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x013C
Product Type ID	0x0002
Product ID	0x006A
User Icon	0x0C06
Installer Icon	0x0C06
Frequency Plans	EU: 869.85MHz, 868.40MHz
Categories	Sensors
Countries / Regions	European Union
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 Multi-Channel Association V3 0x8E 3 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8
S2 Classes	S2_UNAUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual PSM09_UserManual_0624.pdf
Features	Feature Values Sensors Value Open/Closed (Binary) Firmware Updatable Value Updatable by Consumer by RF Supported Notification Types Value Access Control Home Security Battery Quantity Value 1 Battery Type Value ER14250
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline This machine provides a group of groups. Each group can set 5 Nodes. Group 1: Used for event return. Report type: 1. Door sensor state 2.Battery state 3.Reset report
Configuration Parameters
Texts	ID Description Value 1 Inclusion Check Z-WaveTM Controller enter inclusion mode. Pressing tamper key three times within 3 seconds to enter the inclusion mode. If the addition is successful, the LED will flash slowly. 2 Exclusion Check Z-WaveTM Controller enter exclusion mode. Pressing tamper key three times within 3 seconds to enter the exclusion mode. If the removal is successful, the code light will flash for 30 seconds. 5 Factory Reset Notice: Use this procedure only in the event that the primary controller is lost or otherwise inoperable. Press the button three times in three seconds, then LED will flash for one second slowly. Press the button again and hold, the LED will light up, after about three seconds, the LED will off. Please release the button in two seconds. If the clearing is successful, the LED will flash one time per second. If it fails, the LED will flash quickly. 4 Device Wake-Up After the device adding to the network, it will wake-up once per day in default. When it wake-up it will broadcast the “Wake Up Notification”message to the network, and wake-up 10 seconds for receive the setting commands. The wake-up interval minimum setting is 30 minutes, and maximum setting is 120 hours. And the interval step is 30 minutes. If the user want to wake-up the device immediately, please press the tamper key once. The device will wake-up 10 seconds.
Supported Notification Types	Notification Type Event / State Access Control (Refer to parameters): State idle Home Security (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
