Product Recognition
Certification Number	ZC10-14120010

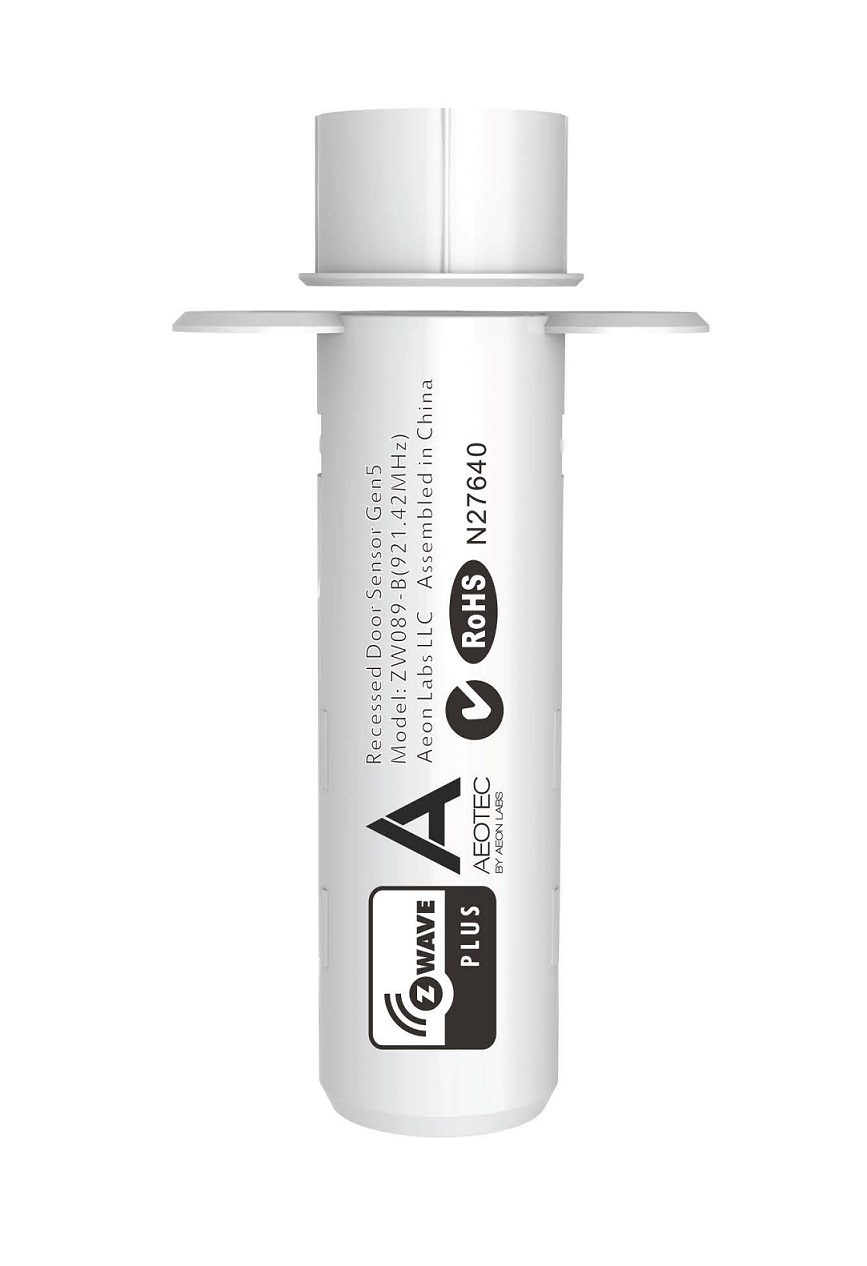

Name	Recessed Door Sensor Gen5
Short Description	Aeon Labs Recessed Door Sensor Gen5 is a door sensor that can detect the state of the door's open/close.
Long Description	The Aeotec by Aeon Labs Recessed Door Sensor Gen5 is a door sensor that can detect the state of the door's open/close. It will report the door state to your controller/ gateway/associated nodes in real time when the state of your door has a change. It’s a security Z-Wave device that supports security encryption. Also it supports the “Over the Air Firmware Updating” that allows you wirelessly update its firmware if needs. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from manufacturers and/or other applications.
Brand	Aeotec
Product Identifier	ZW089-B
OEM Version	HW: 59 FW: 1.13
Hardware Platform	ZM5202
Z-Wave Version	6.51.01
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0086
Product Type ID	0x0202
Product ID	0x0059
Frequency Plans	ANZ: 919.80MHz, 921.40MHz
Categories	Sensors
Countries / Regions	Australia
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual Recessed Door Sensor Gen5 - Manual MCert.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Group 1 is assigned to the Lifeline association group and every device has 5 nodes to associate. The Basic Set CC or Sensor Binary report CC will be sent to the associated nodes in Group 1.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 254 Device Tag This parameter is used to set the device tag. Note: The possible values are unsigned value, its range is 0 to 65535. 0 2 0 0 0 From To Description 0 65535 The range of device tag is 65535. 101 Enable/disable the function of low battery checking This parameter is used to configure to enable/disable the function of low battery checking.(00==Disable, 1==Enable). 0 1 0 0 0 From To Description 0 0 Disable low battery checking. 1 1 Enable low battery checking. 252 Enable/disable all configuration parameters to be locked This parameter is used to enable/disable all configuration parameters to be locked. (0 =disable, 1 = enable) 0 1 0 0 0 From To Description 0 0 Disable all configuration parameters to be locked. 1 1 Enable all configuration parameters to be locked. 111 The interval time of low battery checking. This parameter is used to configure the interval time of low battery checking. Note: 1. The minimum unit of interval time is 4 minutes(240). If the value is set to 1 minute, the interval time will be 4 minutes. The same is if the value is set to 7 minutes, the interval time will be 8 minutes. 2. The possible values are unsigned value, so its range is 0 to 2147483647. 0 4 0 0 86640 From To Description 0 2147483647 The range of interval time is 0 to 2147483647. 3 Which value of the Basic Set will be sent when the magnet switch to open/close. This parameter is used to set the Basic Set value when the magnet switch to open/close. 0 1 0 0 0 From To Description 1 1 When the magnet switch to open, Basic Set=0x00. When the magnet switch to close, Basic Set=0xFF. 0 0 When the magnet switch to open, Basic Set=0xFF. When the magnet switch to close, Basic Set=0x00. 1 Which value of the Sensor Binary Report will be sent when the magnet switch to open/close. This parameter is used to set the Sensor binary report value when the magnet switch to open/close. 0 1 0 0 0 From To Description 0 0 When the magnet switch to open, Sensor Binary Report=0xFF. When the magnet switch to close, Sensor Binary Report=0x00. 1 1 When the magnet switch to open, Sensor Binary Report=0x00. When the magnet switch to close, Sensor Binary Report=0xFF.
Texts	ID Description Value 1 Inclusion Turn the primary controller of Z-Wave network into inclusion mode, short press the product’s Z-Wave button that you can find in the back of the product. 2 Exclusion Turn the primary controller of Z-Wave network into exclusion mode, short press the product’s Z-Wave button that you can find in back of the product. 3 Learn Mode (adding another controller) N/A 6 Additional Special Features Support ""Over the Air Firmware Updating"" and “Z-Wave Security”. 5 Factory Reset Press and hold the Z-Wave button that you can find in back of the product for 20 seconds and then release. This procedure should only be used when the primary controller is inoperable. 4 Device Wake-Up Press and hold the Z-Wave button for 5 seconds will trigger sending the Wake up notification command and then keep waking up for 10 seconds after release the Z-Wave button.
Supports NWI	Yes
Supports Explorer Frames	Yes
