Certification Number	ZC10-19086709
Name	Recessed Door/ Window Sensor
Short Description	Battery powered door and window sensor with magnetic reed switch and external switch contacts for adding additional sensor contacts.

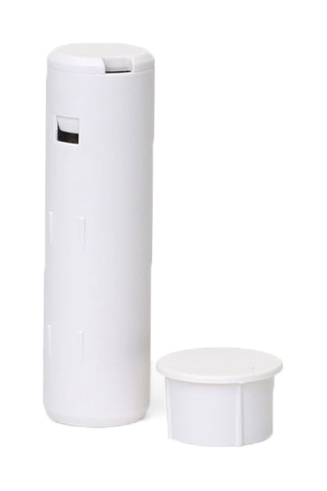

Long Description	The ZD2105-5 Door and Window sensor is used in any Z-Wave network to detect the opening or closing of a door or window. Special Design can fit most of door/window frame. The primary sensing element is a magnetic reed switch, the ZD2105-5 is supplied with the sensor, sensor mounting bracket and the trigger magnet. An additional set of sensor inputs are provided through a 2 position screw terminal and can be used to expand the sensor capability to multiple inputs. The ZD2105-5 is powered by 2 x AAA Battery (supplied with unit, battery life is more than 2 years) and is intended for indoor use only. The ZD2105-5 features tamper proof switch, low battery warning and can be firmware updated over the air.
Brand	Great Connection System Pte. Ltd.
Product Identifier	ZD2105US-5
OEM Version	HW: 1 FW: 24.01
Hardware Platform	ZM5202
Z-Wave Version	6.81.00
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x042A
Product Type ID	0x2022
Product ID	0x2202
User Icon	0x0C07
Installer Icon	0x0C07
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 Firmware Update Meta-Data V4 0x7A 4 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_TRANSPORT_SERVICE_V2 Transport Service V2 0x55 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_NOTIFICATION_V8 Notification V8 0x71 8 COMMAND_CLASS_SECURITY_2 Security S2 0x9F 1 COMMAND_CLASS_VERSION_V3 Version V3 0x86 3 COMMAND_CLASS_SUPERVISION Supervision 0x6C 1 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
S2 Classes	S2_UNAUTHENTICATED, S2_AUTHENTICATED
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual ZD2105-5 GCS.pdf
Features	Feature Values Battery Quantity Value 1 Sensors Value Open/Closed (Binary) Color Value White Outdoor Use Supported Notification Types Value Access Control Battery Type Value CR2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 2 5 0 * Group 2 = On/Off Control 1 5 0 * Group 1 = Lifeline
Texts	ID Description Value 1 Inclusion For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the ZD2105 to your controller. To get in the “inclusion” mode, the distance between sensor and controller is suggested to be in one meter. Press the program switch of ZD2105 then the device will send a signal to be included (or excluded) to/from the network; otherwise, ZD2105 will go to sleep after 20 seconds. 2 Exclusion For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to remove the ZD2105 from your controller. Press the program switch of ZD2105 for 1 second at least to be excluded. Note: All user and network settings will be cleared and the device reset to factory defaults when the device is excluded. 5 Factory Reset Factory Default Reset: Trigger the rear cover switch to send the Alarm Report and trigger the reed switch (close & open) 5 times in 10 seconds, ZD2105 will send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.) 4 Device Wake-Up Press program switch to send the NIF and after 3 seconds to send Wake Up Notification for receiving all the command class from controller. If ZD2105 received “Wake Up No More Information” command then the ZD2105 will go to sleep mode or it will wait 10 seconds then go sleep mode. It will proceed all the commands after sending the “Wake Up Notification” 6 Additional Special Features PowerLevel Control, Battery Votlage Detection(Auto report low battery),OTA function
Supported Notification Types	Notification Type Event / State Access Control (Refer to parameters): State idle
Supported Multilevel Sensors	Multilevel Sensor Type 0x02
Supports NWI	Yes
Supports Explorer Frames	Yes
Supports SmartStart	Yes
