Product Recognition

Certification Number

ZC12-20040046

Name

Relay Switch Quinto

Short Description

Advanced Programmable Z-Wave Plus v2 In-Wall Relay Switch—with S2 security and SmartStart on the Z-Wave 700 platform.

Long Description

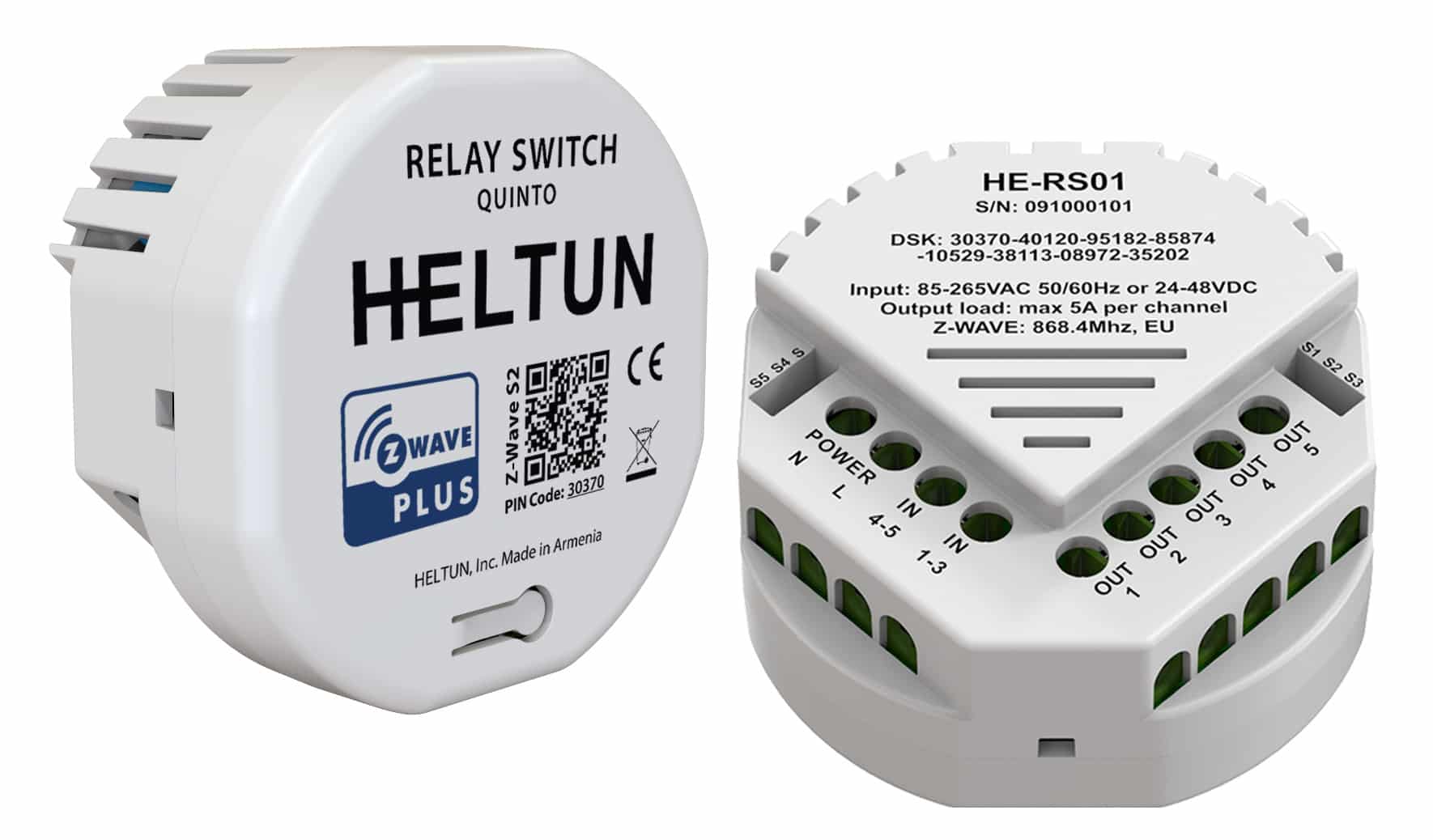

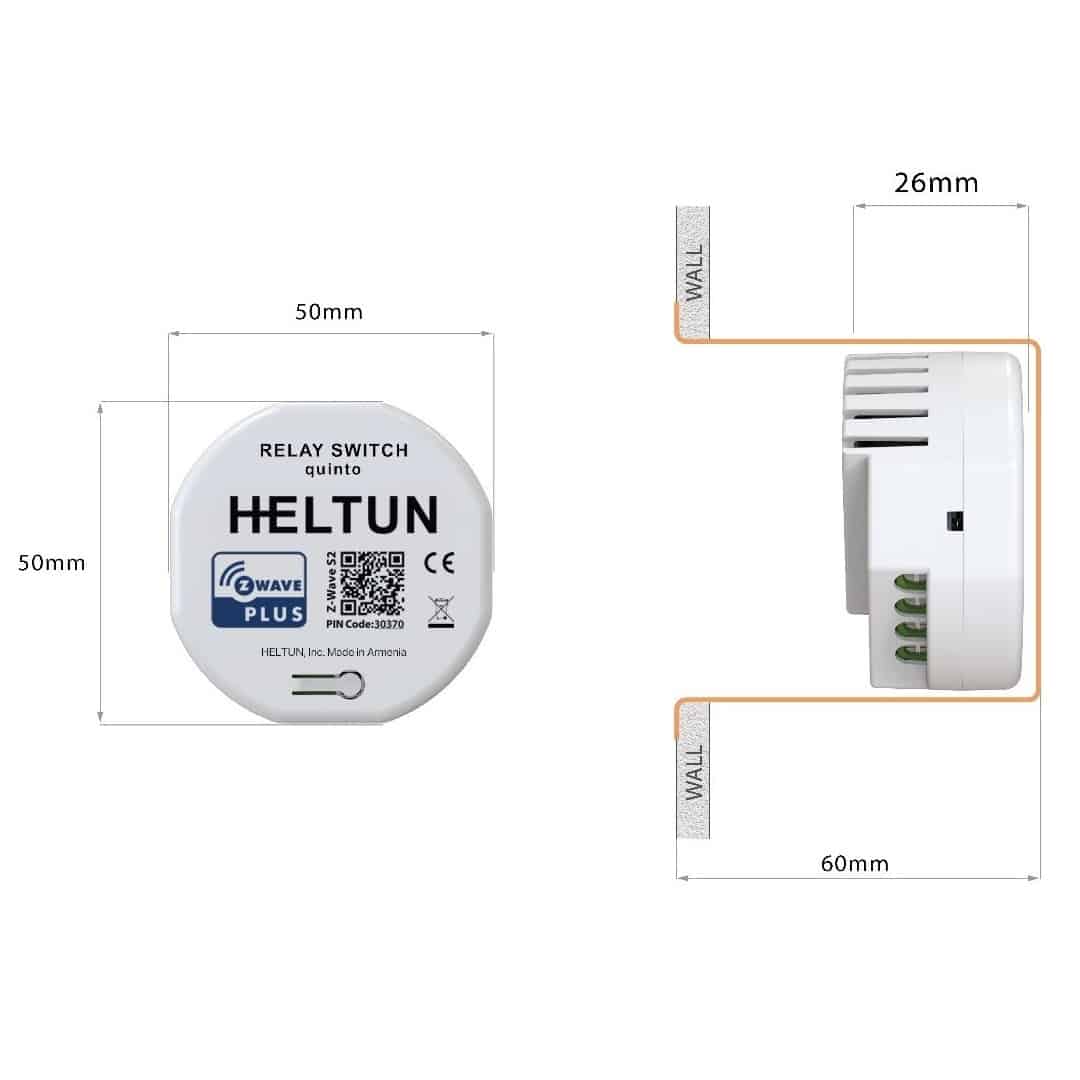

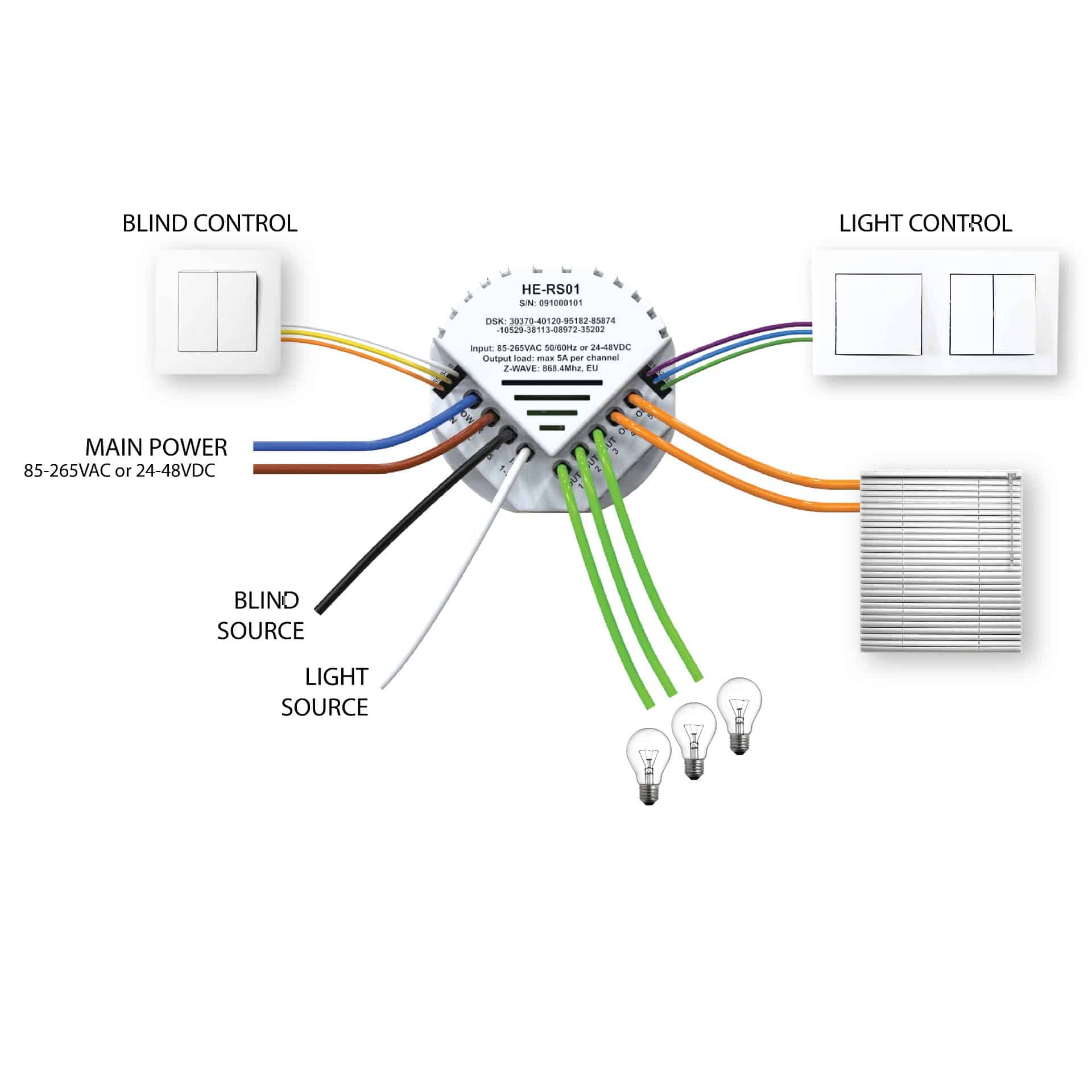

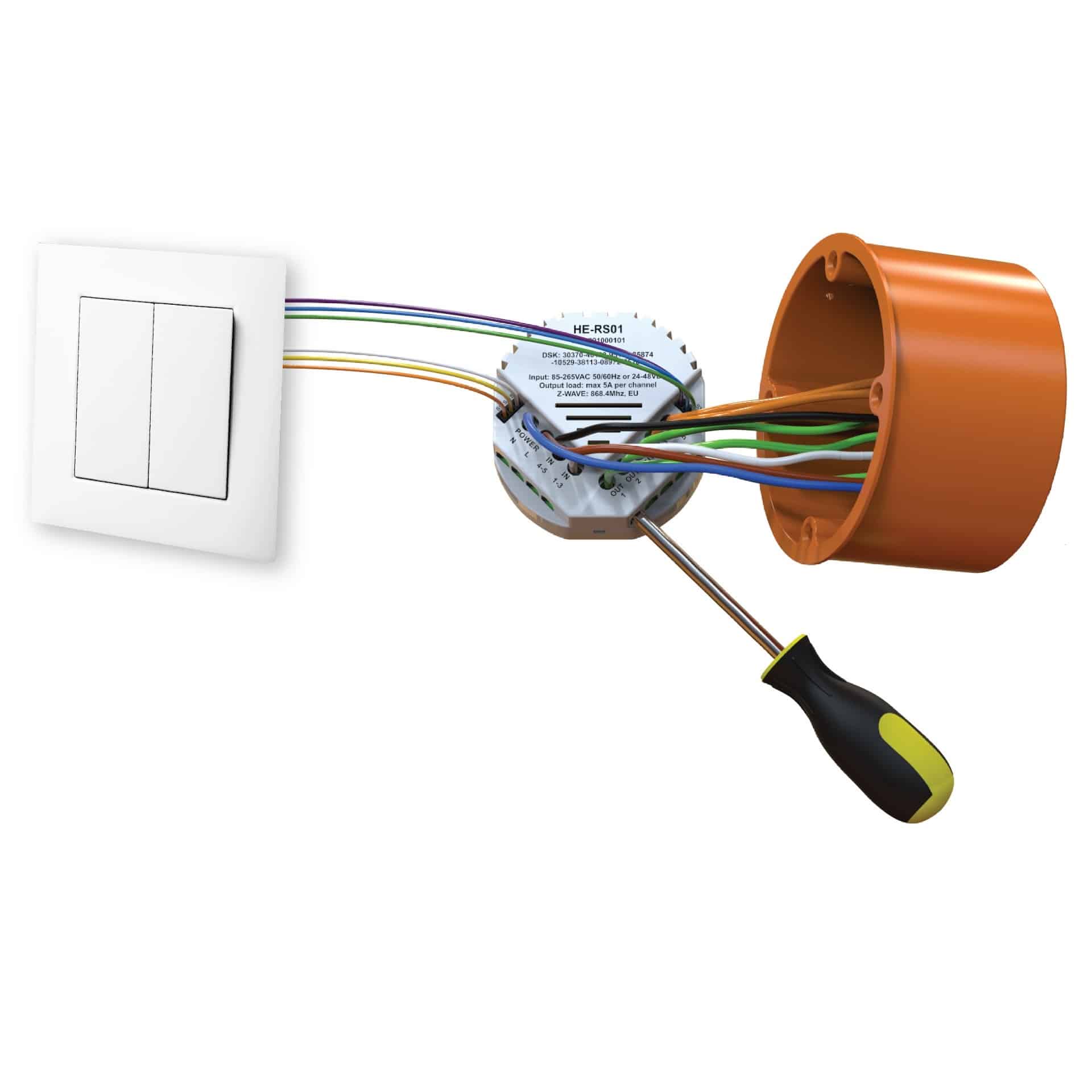

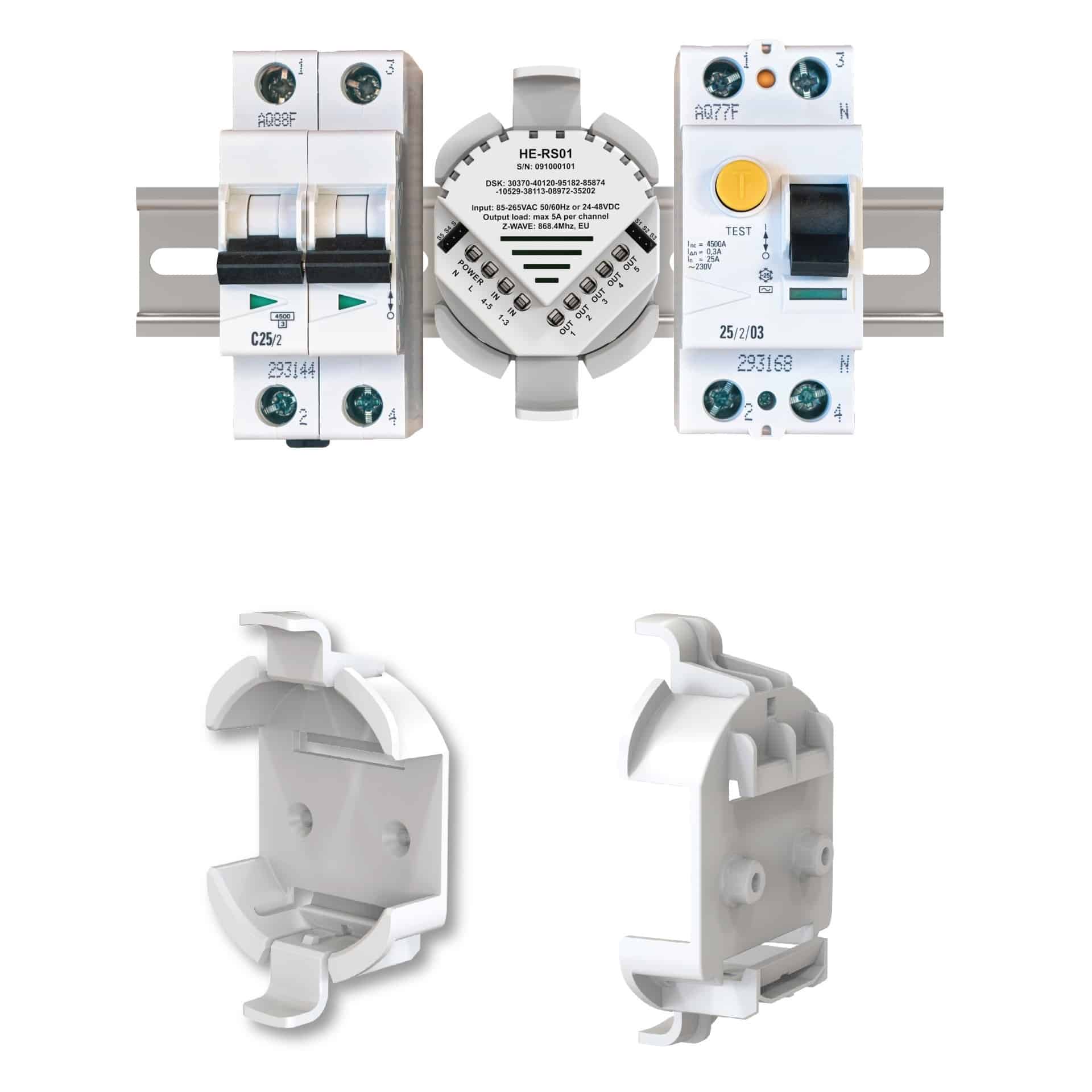

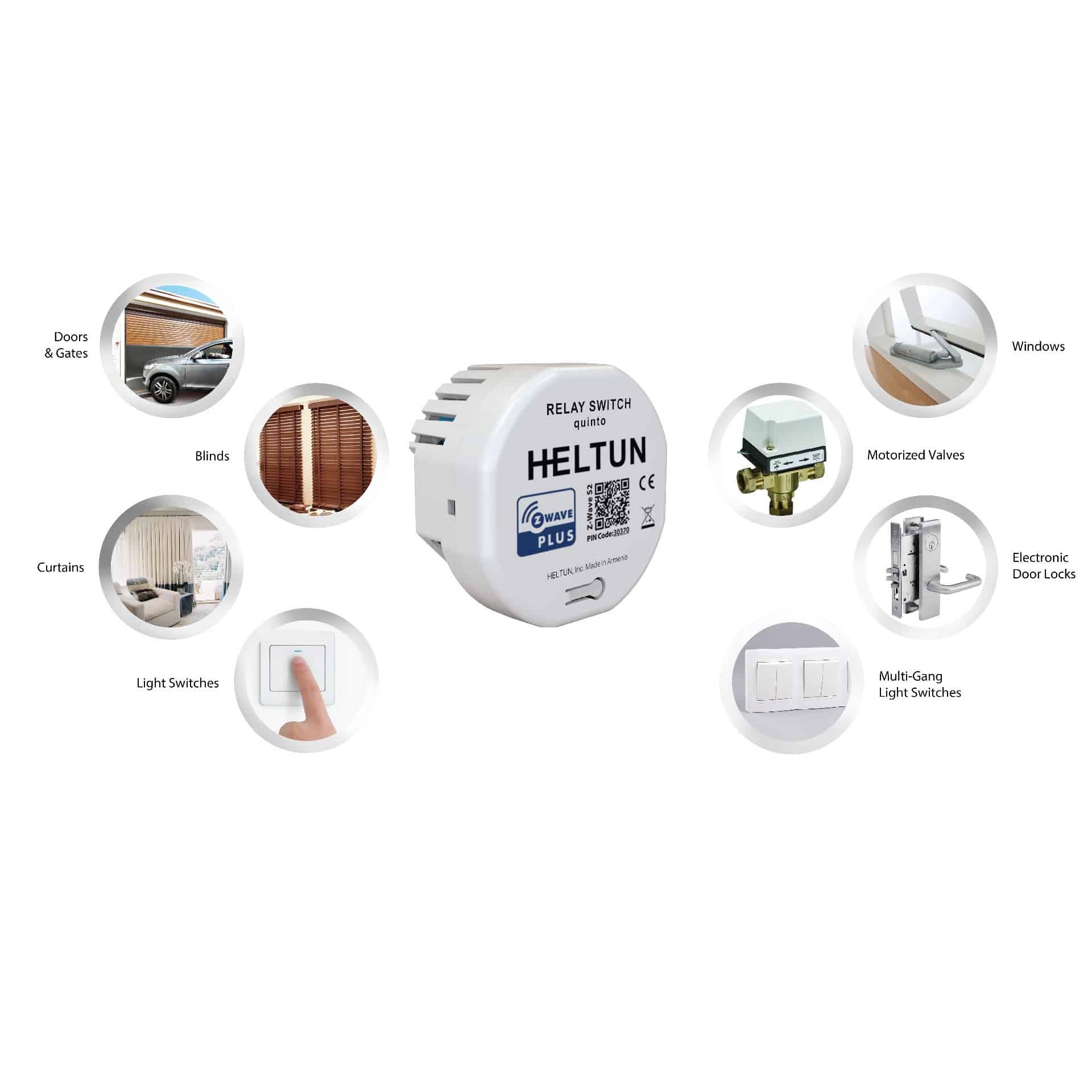

The HELTUN HE-RS01 is an advanced programmable Z-Wave Plus v2 in-wall relay switch that controls many devices, including lights, dimmers, blinds, curtains, door locks, gates, motorized valves, roller shutters, and more. Features: • Five-channel 5-amp relays with dry contact inputs • Each relay may be controlled by a timer or on a week schedule • Power Consumption logic monitors energy usage • 10 association groups • Incorporates HELTUN Advanced Zero-Cross Technology The HELTUN HE-RS01 is part of an entire line of smart, connected products designed to provide the best technology has to offer without compromising stylish living.

Brand

HELTUN

Product Identifier

HE-RS01

Product Line

In-Wall Relay Switch

OEM Version

HW: 76 FW: 1.01

Hardware Platform

ZGM130

Z-Wave Version

7.11.1

Library Type

SLAVE_ENHANCED_232

Device Type

Central Scene Device

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0344

Product Type ID

0x0004

Product ID

0x0009

User Icon

0x1600

Installer Icon

0x1600

Frequency Plans

ANZ: 919.80MHz, 921.40MHz, KR: 920.90MHz, 921.70MHz, 923.10MHz, EU: 869.85MHz, 868.40MHz, RU: 869.00MHz, IN: 865.20MHz, HK: 919.80MHz, 919.80MHz, US: 916.00MHz, 908.40MHz, IL: 916.00MHz, JP: 922.50MHz, 923.90MHz, 926.30MHz, CN: 868.40MHz

Categories

All Lighting Devices, On/Off Switches/Devices

Countries / Regions

Australia, China, Hong Kong, India, Israel, Japan, Russian Federation, Republic of Korea, United States of America, European Union

Supported Command Classes

S2 Classes

S2_UNAUTHENTICATED, S2_AUTHENTICATED

Documents

Features

Association Groups

Group Number	Maximum Nodes Supported	Group Name	Profile	Description
2	1	External Input S1 Basic Set	0x2001	Group 2 – “External Input S1 Basic Set”: is assigned to Input S1 state and will be triggered when the button on switch connected to S1 input was pressed. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
4	1	External Input S2 Basic Set	0x2002	Group 4 – “External Input S2 Basic Set”: is assigned to Input S2 state and will be triggered when the button on switch connected to S2 input was pressed. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
6	1	External Input S3 Basic Set	0x2003	Group 6 – “External Input S3 Basic Set”: is assigned to Input S3 state and will be triggered when the button on switch connected to S3 input was pressed. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
7	1	External Input S3 Multilevel Set	0x2003	Group 7 – “External Input S3 Multilevel Set”: is assigned to Input S3. It sends MULTILEVEL SWITCH command class frame when the button on switch connected to S3 input was held. Is used to send UP/DOWN command to the associated devices.
8	1	External Input S4 Basic Set	0x2004	Group 8 – “External Input S4 Basic Set”: is assigned to Input S4 state and will be triggered when the button on switch connected to S4 input was pressed. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.
9	1	External Input S4 Multilevel Set	0x2004	Group 9 – “External Input S4 Multilevel Set”: is assigned to Input S4. It sends MULTILEVEL SWITCH command class frame when the button on switch connected to S4 input was held. Is used to send UP/DOWN command to the associated devices.
11	1	External Input S5 Multilevel Set	0x2005	Group 11 – “External Input S5 Multilevel Set”: is assigned to Input S5. It sends MULTILEVEL SWITCH command class frame when the button on switch connected to S5 input was held. Is used to send UP/DOWN command to the associated devices.
1	1	Lifeline	0x0001	This is the Lifeline Group 1 which sends status (lifeline) reports to the primary controller.
3	1	External Input S1 Multilevel Set	0x2001	Group 3 – “External Input S1 Multilevel Set”: is assigned to Input S1. It sends MULTILEVEL SWITCH command class frame when the button on switch connected to S1 input was held. Is used to send UP/DOWN command to the associated devices. The group supports one Node.
5	1	External Input S2 Multilevel Set	0x2002	Group 5 – “External Input S2 Multilevel Set”: is assigned to Input S2. It sends MULTILEVEL SWITCH command class frame when the button on switch connected to S2 input was held. Is used to send UP/DOWN command to the associated devices.
10	1	External Input S5 Basic Set	0x2005	Group 10 – “External Input S5 Basic Set”: is assigned to Input S5 state and will be triggered when the button on switch connected to S5 input was pressed. Is used to send Basic Set ON (value 255) and Basic Set OFF (value 0) commands to the associated devices.

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

TIME CORRECTION

Time correction by controller

From	To	Description
0	0	Switch off auto-correction
1	0	If TPS05 is connected to a Z-Wave gateway, the time and day will be periodically polled and corrected from the gateway

WEEKDAY

The day of the week (starting from Monday)

From	To	Description
1	0	Monday
2	0	Tuesday
3	0	Wednesday
4	0	Thursday
5	0	Friday
6	0	Saturday
7	0	Sunday

HOUR

Time Hour

From	To	Description
0	23	Time Hour in 24 hour format

MINUTE

Time Minute

From	To	Description
0	59	Manual adjustment of time minutes (60 minutes)

METER REPORT INTERVAL

Energy Consumption Meter Consecutive Report Interval, minutes

120

From	To	Description
1	120	Energy Consumption Meter Consecutive Report Interval in Minutes

RELAY1 CONTROL SOURCE

Relay 1 control source

From	To	Description
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)
5	5	Controlled by touch button N5 (Center)

RELAY2 CONTROL SOURCE

Relay 2 control source

From	To	Description
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)
5	5	Controlled by touch button N5 (Center)

RELAY3 CONTROL SOURCE

Relay 3 control source

From	To	Description
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)
5	5	Controlled by touch button N5 (Center)

RELAY4 CONTROL SOURCE

Relay 4 control source

From	To	Description
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)
5	5	Controlled by touch button N5 (Center)

RELAY5 CONTROL SOURCE

Relay 5 control source

From	To	Description
0	0	Controlled by gateway or associated device
1	1	Controlled by touch button N1 (Top Left)
2	2	Controlled by touch button N2 (Top Right)
3	3	Controlled by touch button N3 (Bottom Left)
4	4	Controlled by touch button N4 (Bottom Right)
5	5	Controlled by touch button N5 (Center)

HOLD1 CONTROL MODE

Hold control mode for touch button 1

From	To	Description
0	0	Hold function is disabled
1	1	Operate like click
3	3	When the button is held the relay output state is OFF, as soon as the button is released the relay output state changes to ON (momentary switch).
2	2	When the button is held the relay output state is ON, as soon as the button is released the relay output state changes to OFF (momentary switch).

CLICK2 CONTROL MODE

Click control mode for touch button 2

From	To	Description
0	0	Click function disabled
1	1	Relay inverts state (toggles ON to OFF, OFF to ON).
2	2	Relay inverts state (toggles ON to OFF, OFF to ON) according to the button backlight state.
3	3	Relay switches to ON state only.
4	4	Relay switches to OFF state only.
5	5	Timer: On>Off Mode: Relay output switches to ON state (contacts are closed) then after a specified time switches back to OFF state (contacts are open). The time is specified in parameters 35-39.
6	6	Timer: OFF>ON Mode: Relay output switches to OFF state (contacts are open) then after a specified time switches back to ON state (contacts are closed). The time is specified in Parameters 35-39.

RELAY3 TIMER DURATION

Timer mode duration for button 3. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 32). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).

43200

From	To	Description
0	43200	Timer mode duration in seconds

RELAY5 TIMER DURATION

Timer mode duration for button 5. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 34). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).

43200

From	To	Description
0	43200	Timer mode duration in seconds

RELAY CONTROL SCENARIO1

Relays control by sensors Group 1 0, 10000000 … 53112359 Encoded as 8 digit value (ABCDEFGH): A: Relay number (1.. 5) B: Control Mode (0-Temperature Sensor, 1-Humidity Sensor, 2-Light Sensor, 3-Time control) C: State change condition relative to the value in HGFE Value field ( 0-Lower than, 1-Higher than) D: State Change, 0- Switch OFF, 1- Switch ON EFGH: Condition Value Sensor Value for Control modes 0-2 Time Of Day for Control mode 3. EF represents Hour (0..23), GH represents Minutes (0..59)

53112359

From	To	Description
0	0	Scenario function is disabled
1	53112359	Behavior according to the encoded scenario

RELAY3 LOAD POWER

Power load consumption (in Watts) Relay channel 3 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

RELAY4 LOAD POWER

Power load consumption (in Watts) Relay channel 4 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

RELAY5 LOAD POWER

Power load consumption (in Watts) Relay channel 5 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

S1 ASSOCIATION MODE

Associations mode for external input S1 . These parameters are intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9 & 11) have been activated. They define the logic of values changing if one of the buttons on switch connected to external inputs S1-S5 has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

S4 ASSOCIATION MODE

Associations mode for external input S4. These parameters are intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9 & 11) have been activated. They define the logic of values changing if one of the buttons on switch connected to external inputs S1-S5 has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

S3 ASSOCIATION MODE

Associations mode for external input S3. These parameters are intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9 & 11) have been activated. They define the logic of values changing if one of the buttons on switch connected to external inputs S1-S5 has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

S2 ASSOCIATION MODE

Associations mode for external input S2. These parameters are intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9 & 11) have been activated. They define the logic of values changing if one of the buttons on switch connected to external inputs S1-S5 has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

S5 ASSOCIATION MODE

Associations mode for external input S5. These parameters are intended for use when Multilevel Switch Group Associations (Groups 3, 5, 7, 9 & 11) have been activated. They define the logic of values changing if one of the buttons on switch connected to external inputs S1-S5 has been held for more than one second.

From	To	Description
0	0	On each hold event, “UP (brighten)” and “DOWN (dim)” command will be alternately sent to associated devices.
1	0	On each hold event, the “UP (brighten)” command will be sent to associated devices.
2	0	On each hold event, the “DOWN (dim)” command will be sent to associated devices.

RELAY2 LOAD POWER

Power load consumption (in Watts) Relay channel 2 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

RELAY4 TIMER DURATION

Timer mode duration for button 4. This parameter specifies the duration in seconds for the Timer mode (value 5 or 6 in Parameters 33). Press the button and the relay output goes to ON/OFF for the specified time then changes back to OFF/ON. This function can be used to open/close garage doors, blinds, curtains, etc. or to turn attached devices like security OFF for a short time. The time values can be configured from 0 to 43200 sec (12 hours). Note: If the parameter value is set to “0” it will operate as a short contact (about 0.5 sec).

43200

From	To	Description
0	43200	Timer mode duration in seconds

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RELAY1 LOAD POWER

Power load consumption (in Watts) Relay channel 1 in order to calculate total energy consumption relative to the time each relay is ON.

1100

From	To	Description
0	1100	Power load consumption (in Watts)

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

RESERVED

Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

From	To	Description
0	1	Parameter reserved by the manufacturer. Setting this parameter will have no impact on DUT functionality.

Texts

ID	Description	Value
8	Where to find S2 DSK on product	The device QR code and DSK are printed on the front and rear of the HE-RS01 plus on the additional Security Card included in the packaging.
1	Classic Inclusion	To add the HE-RS01 to a Z-Wave Network (i.e. “inclusion”), do the following: 1. Ensure the HE-RS01 is Powered On and the LED indicator blinks red slowly (i.e. it is excluded) 2. Start the inclusion mode from the gateway / controller 3. To start the inclusion process on the HE-RS01, double-press the service button on the device (with no more than a one-second interval between presses). 4. The LED indicator will blink green quickly. 5. If the inclusion has been successful, the LED indicator will turn green for three seconds then continue slowly blinking green continuously while the HE-RS01 is Powered On. 6. If the inclusion was not successful, the LED indicator will turn red for three seconds then continue slowly blinking red continuously while Powered On. In that case repeat the inclusion process (2-5) above.
2	Classic Exclusion	To remove the HE-RS01 from a Z-Wave Network (i.e. “exclusion”), do the following: 1. Ensure the HE-RS01 is Powered On and the LED indicator is slowly blinking green (i.e. it is included in a Z-Wave network). 2. Start the exclusion mode from the gateway/controller. 3. To start the exclusion process on the HE-RS01, double-press the service button on the device (with no more than a one-second interval between presses). 4. The LED indicator will blink red quickly. 5. If the inclusion has been successful, the LED indicator will turn red for three seconds then continue blinking red slowly continuously while the HE-RS01 is Powered On. 6. If the inclusion was not successful, the LED indicator will turn green for three seconds then continue slow blink green all the time the device is Powered On. In that case repeat the exclusion process (2-5) above. Note: If the HE-RS01 has previously been part of a Z-Wave network and has not been excluded since (the LED indicator will blink green slowly). Inclusion is not possible without first performing an Exclusion or Factory Reset procedure.
5	Factory Reset Procedure	To reset the HE-RS01 to factory defaults, press and hold the button for six seconds. If successful, the LED indicator will blink white slowly for two seconds, then the device will reboot. NOTE: This factory reset procedure will change all parameters to the original factory default values and will also exclude the device from any associated Z-Wave network.

Supported / Controlled Meter Types

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
