Product Recognition | |
|---|
Certification Number | ZC10-18076173 |
|---|
Name | REM50Z |
|---|

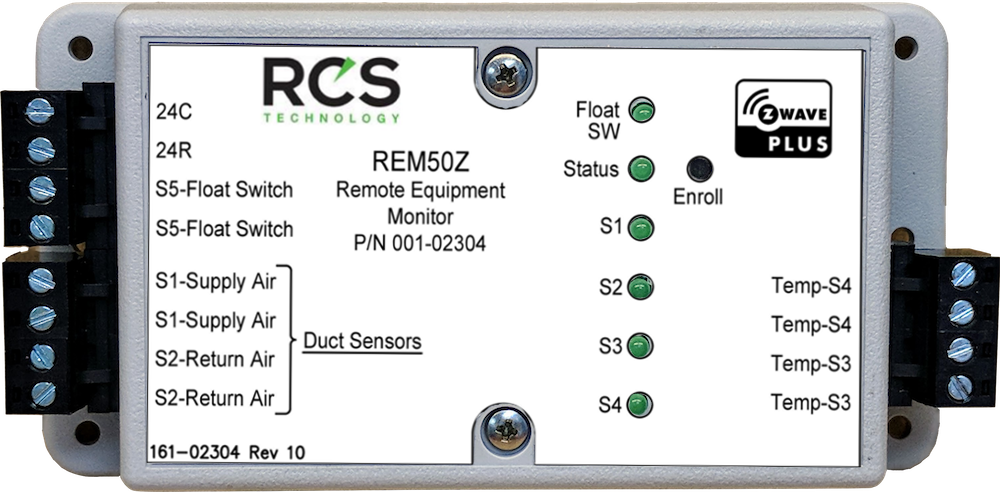

Short Description | The REM50Z is a wall mountable sensor for remotely monitoring up to 4 temperatures and has a voltage detection circuit that can be used to monitor condensate pan fill level of an HVAC system. |
|---|
Long Description | The REM50Z (Remote Equipment Monitor) Quad Channel Remote Temperature Sensor is a wall mountable Z-Wave remote temperature sensor for use with all Z-Wave systems. This sensor is ideal for remotely monitoring up to 4 operating temperatures on HVAC systems: Supply, Return, and Refrigeration In/Out Line Temps. Additionally, the REM50 has a single channel contact closure / voltage detection circuit that can be used to monitor and report Condensate Pan fill level of the HVAC system.
Features
• Z-Wave 500 Series Radio
• Supports Z-Wave Plus
• Quad Temp Sensor Circuits: +/- 1 degree F, Range: -40F to 120F
o Designed for 10k Thermistor temp sensors, not included
• 1 Contact Closure / Voltage Detection Circuit
o Designed to detect Float Switch closure, not included
• 6 Status LEDs
• Designed for interior use in mechanical room, attic or crawlspace
• Compatible with RCS Z-Wave Thermostats
• Compatible with all Z-Wave systems
• Wall Mountable
• Small, Thin, Lightweight
• Grey, Paintable
Dimensions
• 5.10” X 2.25” X 0.9”
Power
• 16 – 28 VAC
• 12 – 24 VDC |
|---|
Brand | RCS |
|---|
Product Identifier | REM50Z |
|---|
OEM Version | HW: 1 FW: 6.61:01.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.61.00 |
|---|
Library Type | SLAVE_ROUTING |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0010 |
|---|
Product Type ID | 0x454D |
|---|
Product ID | 0x3530 |
|---|
User Icon | 0x0DFF |
|---|
Installer Icon | 0x0DFF |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Sensors, HVAC |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_SENSOR_MULTILEVEL_V5 | Sensor Multilevel V5 | 0x31 | 5 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Sensors | Value |
|---|
Air Temperature | Voltage |
| Supported Notification Types | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline -
• Device Reset Locally
• Supply Air Sensor (Multilevel Sensor Report and Multilevel Sensor Report, Multichannel)
• Return Air Sensor (Multilevel Sensor Report, Multichannel)
• Coil Low Sensor (Multilevel Sensor Report, Multichannel)
• Coil High Sensor (Multilevel Sensor Report, Multichannel)
• Float Sensor(Notification Report) | 2 | 2 | 0 | • Supply Air Sensor (Multilevel Sensor Report, Multichannel) | 3 | 2 | 0 | • Return Air Sensor (Multilevel Sensor Report, Multichannel) | 4 | 2 | 0 | • Temp - S3 Sensor (Multilevel Sensor Report, Multichannel) | 5 | 2 | 0 | • Temp - S4 Sensor (Multilevel Sensor Report, Multichannel) | 6 | 2 | 0 | • Float SW(Notification Report) |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | RS1 Sensor Cal | Add or subtract an offset for the S1 temperature sensor. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-7 | 7 | Degrees |
| 2 | RS2 Sensor Cal | Add or subtract an offset for the S2 temperature sensor. | 0 | 1 | 0 | 0 | 0 | | 3 | RS3 Sensor Cal | Add or subtract an offset for the S3 temperature sensor. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-7 | 7 | Degrees |
| 9 | RS1 Lifeline Periodic Temperature Send Interval | How many minutes between periodic temperature reports. | 0 | 1 | 0 | 0 | 120 | From | To | Description |
|---|
1 | 120 | Minutes |
| 4 | RS4 Sensor Cal | Add or subtract an offset for the S4 temperature sensor. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
-7 | 7 | Degrees |
| 17 | RS1 Group2 Periodic Temperature Send Interval | How many minutes between periodic temperature reports to association group 2. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 120 | Minutes |
| 23 | RS2 Time Constant | Filter Time constant. Larger number gives a slower temperature response. | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 60 | Seconds |
| 24 | RS3 Time Constant | Filter Time constant. Larger number gives a slower temperature response. | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 60 | Seconds |
| 10 | RS2 Lifeline Periodic Temperature Send Interval | How many minutes between periodic temperature reports. | 0 | 1 | 0 | 0 | 120 | From | To | Description |
|---|
1 | 120 | Minutes |
| 11 | RS3 Lifeline Periodic Temperature Send Interval | How many minutes between periodic temperature reports. | 0 | 1 | 0 | 0 | 120 | From | To | Description |
|---|
1 | 120 | Minutes |
| 25 | RS4 Time Constant | Filter Time constant. Larger number gives a slower temperature response. | 0 | 1 | 0 | 0 | 10 | From | To | Description |
|---|
1 | 60 | Seconds |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Inclusion: Including the REM50Z into an Existing Network:
1. Set your primary controller to Include mode, to add the REM50Z as a node on your network
(see your controller’s user manual for detailed instructions).
2. Press the Install button. The controller will indicate the device has been included into the network.
Your controller will indicate the REM50Z was successfully added to its network (see your controller’s user manual for details). Inclusion and exclusion are always done at normal transmit power mode.
If your controller supports NWI, then you can optionally set the primary to NWI include mode. Please note that NWI inclusion mode does not end when you have included a new node. This allows multiple nodes to be included without having to physically go back to the controller to initiate the next inclusion. Therefore you must manually terminate NWI inclusion mode at the controller when you have finished including any new nodes to the network. Since intermediate included nodes will assist the inclusion process by routing messages, we recommend that nodes close to the primary controller be installed first, proceeding out in consecutive rings from the controller.
Note: Consult your controller’s user manual for details on removing a device from a Z-Wave network. | 2 | Exclusion | Exclusion: Removing the REM50Z from a Network:
1. Set your primary controller to Remove mode, to remove the REM50Z as a node on your network (see your controller’s user manual for detailed instructions).
2. Press the Install button. The controller will indicate the device has been removed from the network. | 5 | Factory Reset | Factory Reset
NOTE: A Factory Reset should only be performed if the network controller is missing or inoperable.
To reset the REM50Z’s configurations and Z-Wave parameters to Factory Settings (Including association groups and scene configurations), and remove the REM50Z from any Z-Wave network:
1. Hold down the Install button for approximately 10 seconds
2. Release the install button (the REM50Z will reset all internal configuration including Z-Wave configurations). The unit will then reset.
3. When the Status LED begins to blink (un-enrolled) the unit has finished restoring configurations is running in normal mode.
A Restore Defaults will be performed automatically when removed from a network. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Water Alarm | (Refer to parameters): State idle |
|
|---|
Supported Multilevel Sensors | Multilevel Sensor Type |
|---|
Air temperature | Voltage |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
