Product Recognition | — |
|---|---|
Certification Number | ZC08-11080005 |

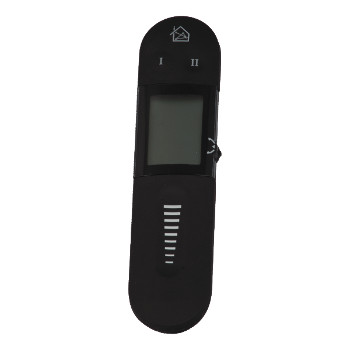

Name | Remote Display |
Long Description | The Remote Display is a controlling device for changing automated lifestyles, selecting a scene or controlling individual products. The blue illuminated display provides comfortable readability during dark hours.
Two hotkey buttons are available which can be configured to your own wishes within the free of charge online manager.
The Remote Display runs on two AAA batteries, with an expected lifetime of four years.
Features:
Control and manage different scenes easily from one controller
Easy to configure
Control individual products
Specifications:
Z Cert Prod Pkg ExcpLogo W max Converted Remote Display
Product dimensions: 170 x 45 x 22 millimeter (L x W x H)
Normal operating voltage: 2x AAA 1,5V batteries. From 2,3Vdc to 4,0Vdc. Do not use rechargeable batteries
Storage temperature: -5°C to +65°C
Storage humidity: 10% to 70%
Operating temperature: 0°C to 50°C
Operating humidity: 30% to 80%
Frequency range: 868.42 MHz (Z-Wave)
Maximum wireless range: 100 meters in line of sight
Average wireless range: 30 meter
Mesh-network wireless range: 150 to 300 meters (maximum of 4 hops) |
Brand | BeNeXt B.V. |
Product Identifier | BeNext myDisplay |
OEM Version | 2 v1.0 |
Hardware Platform | ZM3102 |
Z-Wave Version | 4.51 |
Library Type | SLAVE_ROUTING |
Device Type | Not Z-Wave Plus |
Manufacturer ID | 0x008A |
Product Type ID | 0x0002 |
Product ID | 0x0100 |
Frequency Plans | EU: 869.85MHz, 868.40MHz |
Categories | All Controllers, Handheld Controller |
Countries / Regions | European Union |
Controlled Command Classes | |
