Product Recognition
Certification Number	ZC10-16105290

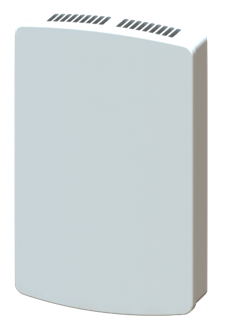

Name	Remote Temperature and Humidity Sensor
Short Description	The Remote Temperature and Humidity sensor is a Z-Wave Plus multilevel sensor that measures indoor temperature and humidity.
Long Description	The Remote Temperature and Humidity sensor is a Z-Wave Plus multilevel, battery-powered, routing sensor that measures and reports indoor temperature and relative humidity. The reporting intervals and thresholds for the indoor temperature, indoor humidity and battery are configurable. The wakeup interval is also configurable.
Brand	Nexia
Product Identifier	ZSENS930AW00MAA
OEM Version	2.1.28
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ENHANCED_232
Device Type	Multilevel Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x01 7
Product Type ID	0x52 5
Product ID	0x54 3
User Icon	0x0D 0xFF
Installer Icon	0x0D 0xFF
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 18-HD83D1-5 Rev 20180404.pdf
Features	Feature Values Battery Type Value AAA Color Value White Firmware Updatable Value Updatable by Consumer by RF Sensors Value Air Temperature Humidity Battery Quantity Value 2
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 1 0 Z-Wave Plus Lifeline: COMMAND_CLASS_BATTERY, BATTERY_REPORT COMMAND_CLASS_SENSOR_MULTILEVEL, SENSOR_MULTILEVEL_REPORT COMMAND_CLASS_DEVICE_RESET_LOCALLY, DEVICE_RESET_LOCALLY_NOTIFICATION 2 5 0 Temperature reports from: COMMAND_CLASS_ SENSOR_MULTILEVEL, SENSOR_MULTILEVEL_REPORT 3 5 0 Humidity reports from: COMMAND_CLASS_ SENSOR_MULTILEVEL, SENSOR_MULTILEVEL_REPORT 4 5 0 Temperature driven BASIC_SETs from: COMMAND_CLASS_BASIC, BASIC_SET 5 5 0 Humidity driven BASIC_SETs from: COMMAND_CLASS_BASIC, BASIC_SET 6 5 0 BATTERY_REPORT sent when sent to Lifeline: COMMAND_CLASS_BATTERY, BATTERY_REPORT
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 7 Temp Units Temperature Units 0 1 0 0 1 From To Description 0 0 Celsius 1 1 Fahrenheit 9 Group1 Temp Interval Group1 - periodic temperature send interval (minutes) 0 1 0 0 0 From To Description 1 120 Minutes, unsigned 0 0 Disabled 10 Group2 Temp Threshold Group2 - temperature delta auto-send threshold (how many degrees change from the last auto-send) 0 1 0 0 1 From To Description 1 5 Degrees, unsigned 1 Battery Report Interval Time between Battery Reports in hours 0 1 0 0 0 From To Description 1 127 Hours, unsigned 0 0 Disabled 2 Basic Set ON Above Temp Send Basic Set ON above temp 0 1 0 0 121 From To Description 121 121 Disabled -40 120 Fahrenheit 3 Basic Set ON Below Temp Send Basic Set ON below temp 0 1 0 0 121 From To Description 121 121 Disabled -40 120 Fahrenheit 4 Basic Set OFF Above Temp Send Basic Set OFF above temp 0 1 0 0 121 From To Description 121 121 Disabled -40 120 Fahrenheit 5 Basic Set OFF Below Temp Send Basic Set OFF below temp 0 1 0 0 121 From To Description 121 121 Disabled -40 120 Fahrenheit 6 Basic Set Attempts Make multiple attempts for all Basic Set Commands. Number of extra attempts sent every minute after first send. 0 1 0 0 0 From To Description 0 0 Disabled 1 5 Number of extra attempts, unsigned 17 Group1 RH Interval Group1 - periodic humidity send interval (minutes) 0 1 0 0 0 From To Description 0 0 Disabled 1 120 Minutes, unsigned 11 Group2 Temp Interval Group2 - periodic temperature send interval (minutes) 0 1 0 0 0 From To Description 0 0 Disabled 1 120 Minutes, unsigned
Texts	ID Description Value 1 Inclusion Set your primary controller into inclusion mode. Press and release the ""Install"" button on the sensor. The ""Status"" LED will blink rapidly for 3 seconds indicating successful inclusion into the network. 2 Exclusion Set your primary controller into exclusion mode. Press and release the ""Install"" button on the sensor. The ""Status"" LED will blink rapidly for 3 seconds indicating successful exclusion from the network. 4 Device Wake-Up A triple press of the ""Install"" button wakes the device up, and it will send a WAKE_UP_NOTIFICATION and a Battery Report (if on a network). A single press of ""Install"" button will wake the device up, and it will send out a Node Information Frame. 5 Factory Reset Press and hold Install button for 10 seconds. Factory Reset should only be used if the primary controller is missing or inoperable.
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Humidity
Supports NWI	Yes
Supports Explorer Frames	Yes
