Product Recognition | |
|---|---|
Certification Number | ZC10-17075709 |

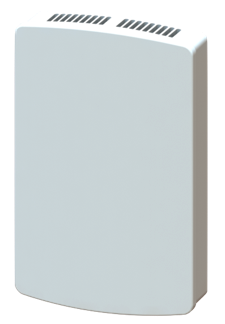

Name | Remote Temperature and Humidity Sensor |
Short Description | The Remote Temperature and Humidity sensor is a Z-Wave Plus multilevel sensor that measures indoor temperature and humidity. |
Long Description | The Remote Temperature and Humidity sensor is a Z-Wave Plus multilevel, battery-powered, routing sensor that measures and reports indoor temperature and relative humidity. The reporting intervals and thresholds for the indoor temperature, indoor humidity and battery are configurable. The wakeup interval is also configurable. This sensor cannot be used with Trane/American Standard thermostats for HVAC control. |
Brand | Nexia |
Product Identifier | TH100NX |
OEM Version | HW: 2 FW: 1.47 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.07 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Notification Sensor |
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
Manufacturer ID | 0x0178 |
Product Type ID | 0x5448 |
Product ID | 0x3130 |
User Icon | 0x0DFF |
Installer Icon | 0x0DFF |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Sensors |
Countries / Regions | United States of America |
Supported Command Classes | |
Controlled Command Classes | |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported Multilevel Sensors | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
