Product Recognition
Certification Number	ZC10-17115888
Name	Remote Temperature and Humidty

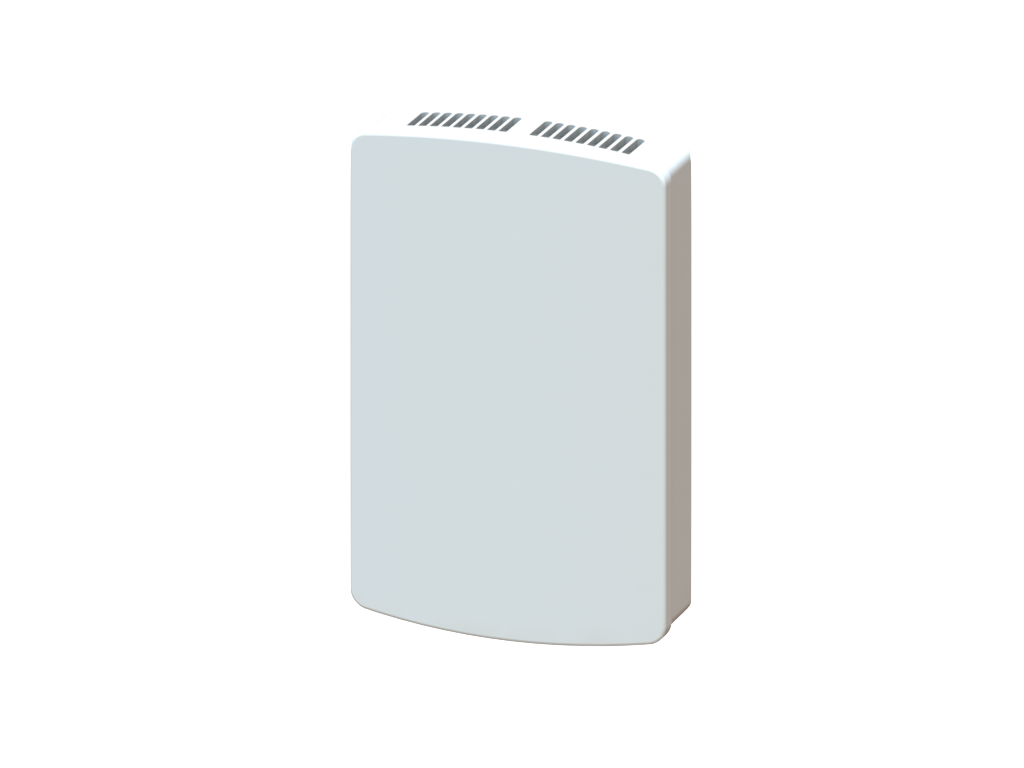

Short Description	Remote Temperature and Humidity Sensor
Long Description	Remote Temperature and Humidity Sensor for HVAC market
Brand	RCS
Product Identifier	RTH100Z
OEM Version	HW: 2 FW: 1.40
Hardware Platform	ZM5202
Z-Wave Version	6.51.07
Library Type	SLAVE_ENHANCED_232
Device Type	Notification Sensor
Role Type	ROLE_TYPE_SLAVE_SLEEPING_REPORTING
Manufacturer ID	0x0010
Product Type ID	0x5253
Product ID	0x5433
User Icon	0x0DFF
Installer Icon	0x0DFF
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	Sensors, Thermostats, HVAC
Countries / Regions	United States of America
Supported Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_MULTILEVEL_V5 Sensor Multilevel V5 0x31 5 COMMAND_CLASS_POWERLEVEL Powerlevel 0x73 1 COMMAND_CLASS_BATTERY Battery 0x80 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_VERSION_V2 Version V2 0x86 2 COMMAND_CLASS_WAKE_UP_V2 Wake Up V2 0x84 2 COMMAND_CLASS_DEVICE_RESET_LOCALLY Device Reset Locally 0x5A 1 COMMAND_CLASS_ZWAVEPLUS_INFO_V2 Z-Wave Plus Info V2 0x5E 2 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_ASSOCIATION_GRP_INFO Association Group Info 0x59 1 COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 Firmware Update Meta-Data V2 0x7A 2 COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 Manufacturer Specific V2 0x72 2
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_BASIC Basic 0x20 1
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual 140-02312-01 RTH100Z Installation Guide 20171110.pdf
Features	Feature Values Battery Quantity Value 2 Battery Type Value AAA Color Value White Firmware Updatable Value Updatable by Consumer by RF Sensors Value Air Temperature Humidity
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 5 5 0 Humidity driven BASIC_SETs 3 5 0 Humidity Reports 4 5 0 Temperature driven BASIC_SETs 6 5 0 Battery Reports 2 5 0 Temperature Reports 1 1 0 Z-Wave Plus Lifeline
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 6 Make multiple attempts for all Basic Set Commands Make multiple attempts for all Basic Set Commands 0 1 0 0 0 From To Description 0 0 Disabled 1 5 Number of extra attempts sent every minute after first send 7 Temp Units Temp Units 0 1 0 0 1 From To Description 0 0 Celsius 1 1 Fahrenheit 8 Group1 Temperature Delta Autosend Threshold Group1 Temperature Delta Autosend Threshold (how many degree change from the last autosend) 0 1 0 0 10 From To Description 1 200 In tenths of degrees 9 Group1 Periodic Temperature Send Interval Group1 Periodic Temperature Send Interval (minutes) 0 1 0 0 0 From To Description 1 120 Temperature Send Interval (minutes) 0 0 Disabled 10 Group2 Temperature Delta Autosend Threshold Group2 Temperature Delta Autosend Threshold (how many degree change from the last autosend) 0 1 0 0 10 From To Description 1 50 In tenths of degrees 0 0 Disabled 1 Time between sending Battery Reports in Hours Time between sending Battery Reports in Hours 0 1 0 0 0 From To Description 1 127 1 – 127 hours 0 0 Disabled 17 Group1- Periodic Humidity Send Interval Group1- Periodic Humidity Send Interval 0 1 0 0 0 From To Description 0 0 Disabled 1 120 Minutes 11 Group2 Periodic Temperature Send Interval Group2 Periodic Temperature Send Interval (minutes) 0 1 0 0 0 From To Description 1 120 Minutes 0 0 Disabled
Texts	ID Description Value 2 Exclusion Exclusion: Removing the RTH100Z from a Network: 1. Set your primary controller to Remove mode, to remove the RTH100Z as a node on your network (see your controller’s user manual for detailed instructions). 2. Press and release the Install button. The controller will indicate the device has been removed from the network. 3. The device will automatically be restored to its default settings 4 Device Wake-Up To wake-up the device for configuration you can triple-press the install button. 1 Inclusion Inclusion: Including the RTH100Z into an Existing Network: 1. Set your primary controller to Include mode, to add the RTH100Z as a node on your network (see your controller’s user manual for detailed instructions). 2. Press and release the Install button. The controller will indicate the device has been included into the network. Your controller will indicate the RTH100Z was successfully added to its network (see your controller’s user manual for details). Inclusion and exclusion are always done at normal transmit power mode. If your controller supports NWI, then you can optionally set the primary to NWI include mode. Please note that NWI inclusion mode does not end when you have included a new node. This allows multiple nodes to be included without having to physically go back to the controller to initiate the next inclusion. Therefore you must manually terminate NWI inclusion mode at the controller when you have finished including any new nodes to the network. Since intermediate included nodes will assist the inclusion process by routing messages, we recommend that nodes close to the primary controller be installed first, proceeding out in consecutive rings from the controller. Note: Consult your controller’s user manual for details on removing a device from a Z-Wave network. 5 Factory Reset Factory Reset To reset the RTH100Z’s configurations and Z-Wave parameters to Factory Settings (Including association groups and scene configurations), and remove the RTH100Z from any Z-Wave network: Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable 1. Hold down the Install button for approximately 10 seconds 2. Release the install button (the RTH100Z will reset all internal configuration including z-wave configurations). The unit will then reset. 3. When the Status LED begins to blink (un-enrolled) the unit has finished restoring configurations is running in normal mode.
Supported Multilevel Sensors	Multilevel Sensor Type Air temperature Humidity
Supports NWI	Yes
Supports Explorer Frames	Yes
