Product Recognition	—
Certification Number	ZC08-12050001

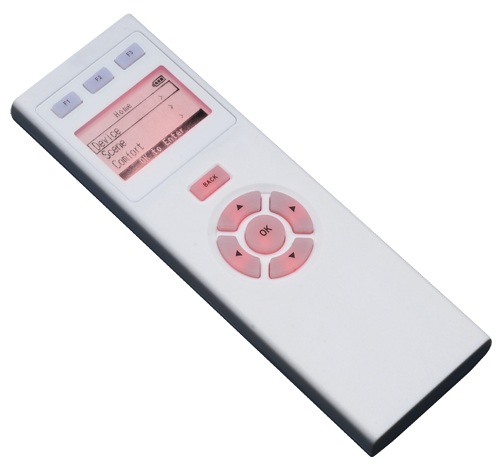

Name	Remotec Portable Controller
Long Description	ZRC-100US Remotec Portable Controller BW8380US.Controls a wide range of Z-Wave compliant appliances such as switches, dimmers, drape controllers and motorized shades. Supports up to 16 Z-wave GROUP or SCENE. Supports 8 IR controlled A/V equipments with Learning Capability. Easy-to-use XpressZetup™ for typical users and powerful Advance Setup for experienced users. Best-in-class Association setup capability. Work as Primary or Secondary Controller,perfect companion for Z-Wave gateway. Supports bi-direction and multi-level replication - simplify cloning. Supports multi-channel devices. Supports Z-ExtenderTM.
Brand	Remotec
Product Identifier	ZRC-100US
OEM Version	1
Hardware Platform	ZM3102
Z-Wave Version	4.53
Library Type	CONTROLLER_PORTABLE
Device Type	Not Z-Wave Plus
Manufacturer ID	0x5254
Product Type ID	0x0000
Product ID	0x8380
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Controllers, Entertainment Controller, Handheld Controller
Countries / Regions	United States of America
Controlled Command Classes	Identifier Name Key Version COMMAND_CLASS_SENSOR_BINARY Sensor Binary 0x30 1 COMMAND_CLASS_ASSOCIATION Association 0x85 1 COMMAND_CLASS_SCENE_ACTUATOR_CONF Scene Actuator Conf 0x2C 1 COMMAND_CLASS_DOOR_LOCK Door Lock 0x62 1 COMMAND_CLASS_THERMOSTAT_FAN_MODE Thermostat Fan Mode 0x44 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION Multi-Channel Association V1 0x8E 0 COMMAND_CLASS_SWITCH_ALL Switch All 0x27 1 COMMAND_CLASS_THERMOSTAT_MODE Thermostat Mode 0x40 1 COMMAND_CLASS_BASIC Basic 0x20 1 COMMAND_CLASS_CONFIGURATION Configuration 0x70 1 COMMAND_CLASS_SECURITY Security S0 0x98 1 COMMAND_CLASS_ASSOCIATION_V2 Association V2 0x85 2 COMMAND_CLASS_THERMOSTAT_SETPOINT Thermostat Setpoint 0x43 1 COMMAND_CLASS_SCENE_ACTIVATION Scene Activation 0x2B 1 COMMAND_CLASS_SCENE_CONTROLLER_CONF Scene Controller Conf 0x2D 1 COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2 Multi Channel Association V2 0x8E 2
