Product Recognition
Certification Number	ZC10-16095230

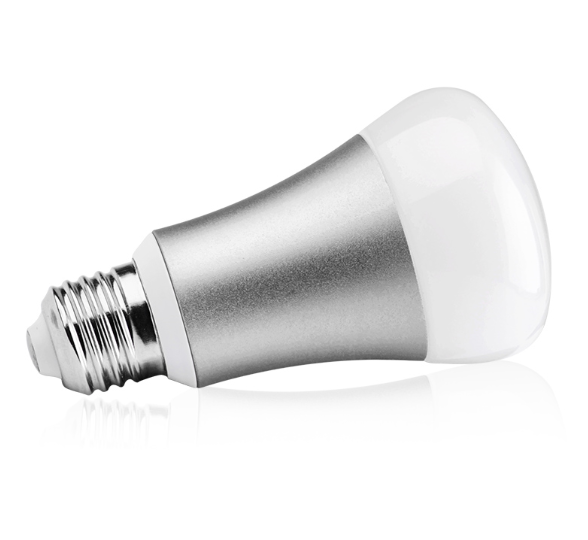

Name	RGB Bulb
Short Description	RGB Bulb is a smart bulb enables Z-Wave remote command and control (on/off/dim). It has over 16,000,000 colors, you can choose its color according to your favour.
Long Description	RGB Bulb is a smart bulb enables Z-Wave remote command and control (on/off/dim). It has over 16,000,000 colors, you can choose its color according to your favour.
Brand	Hank
Product Identifier	HKZW-RGB01
OEM Version	HW: 1 FW: 1.01
Hardware Platform	ZM5101
Z-Wave Version	6.51.08
Library Type	SLAVE_ENHANCED_232
Device Type	Light Dimmer Switch
Role Type	ROLE_TYPE_SLAVE_ALWAYS_ON
Manufacturer ID	0x0208
Product Type ID	0x0101
Product ID	0x0004
User Icon	0x0600
Installer Icon	0x0600
Frequency Plans	US: 916.00MHz, 908.40MHz
Categories	All Lighting Devices, Dimming Lighting Devices
Countries / Regions	United States of America
Documents	Category Description File Manual_Primary_Lang Product or Owner's Manual HKZW-RGB01 Manual.pdf
Association Groups	Group Number Maximum Nodes Supported End Point ID Description 1 5 0 Z-Wave Plus Lifeline RGB BULB supports only one association groupings: RGB BULB will send the follow notification to the associated nodes when the status of the RGB BULB is changed. 1. Set Configuration parameter 24 to 0: Reserved 2. Set Configuration parameter 24 to 1: Send Basic Report 3. Set Configuration parameter 24 to 2: Send Basic Report only when the status of the RGB BULB is not changed by Z-WAVE Command.
Configuration Parameters	Parameter Number Name Description Format Size Min Value Max Value Default Value Parameter Values 24 Notification when Load status change RGB BULB can send notifications to associated device (Group Lifeline) when the status of the RGB BULB is changed. 0 1 0 0 1 From To Description 0 0 The function is disabled 1 1 Send Basic report 2 2 Send BASIC REPORT only when the status of the RGB BULB is not changed by Z-WAVE command. 255 Reset to factory default RGB BULB will exclude from the Z-Wave network with this particular command. 0 4 0 0 0 From To Description 1431655765 1431655765 Resetting to the factory default.
Texts	ID Description Value 5 Factory Reset There are two ways to reset the RGB BULB. One is that removing RGB BULB from the Z-Wave network, the other is that using the configuration command class. 2 Exclusion To remove the RGB BULB from the Z-Wave network: (1) Screw in the RGB BULB. (2) Set the Z-Wave network main controller into excluding mode (see Z-Wave controller operating manual). (3) Toggle the wall switch off and on 3 times quickly(within 3 and the final ending position of the wall switch must be on), if the exclusion is successful, the RGB BULB will blink fast in orange for less than 5 seconds and then keep on for 3 seconds. RGB BULB will keep on warm white after the exclusion procedure is finished. 1 Inclusion To include RGB BULB into a Z-Wave network as a non-security device: (1) Make sure the power supply is disconnected and the RGB BULB is located within a direct Z-Wave network's main controller communication range. (2) Set the Z-Wave network main controller into learning mode (see Z-Wave network controller operating manual). (3) Insert the RGB BULB into a lamp-socket and then power on. (4) Auto-inclusion will be activated. If the inclusion is successful, the RGB BULB will blink fast in blue for less than 5 seconds and then keep on for 3 seconds. RGB BULB will keep on in the color before it is included into the Z-Wave network after the inclusion procedure is finished. To include RGB BULB into a Z-Wave network as a security device: (1) Screw in the RGB BULB. (2) Set the Z-Wave network main controller into learning mode (see Z-Wave network controller operating manual). (3) Toggle the wall switch off and on 3 times quickly (within 3 seconds and the final ending position of the wall switch must be on). (4) If the inclusion is successful, the RGB BULB will blink fast in green for less than 5 seconds and then keep on 3 seconds. RGB BULB will keep on in the color before it is included into the Z-Wave network after the inclusion procedure is finished.
Supports NWI	Yes
Supports Explorer Frames	Yes
