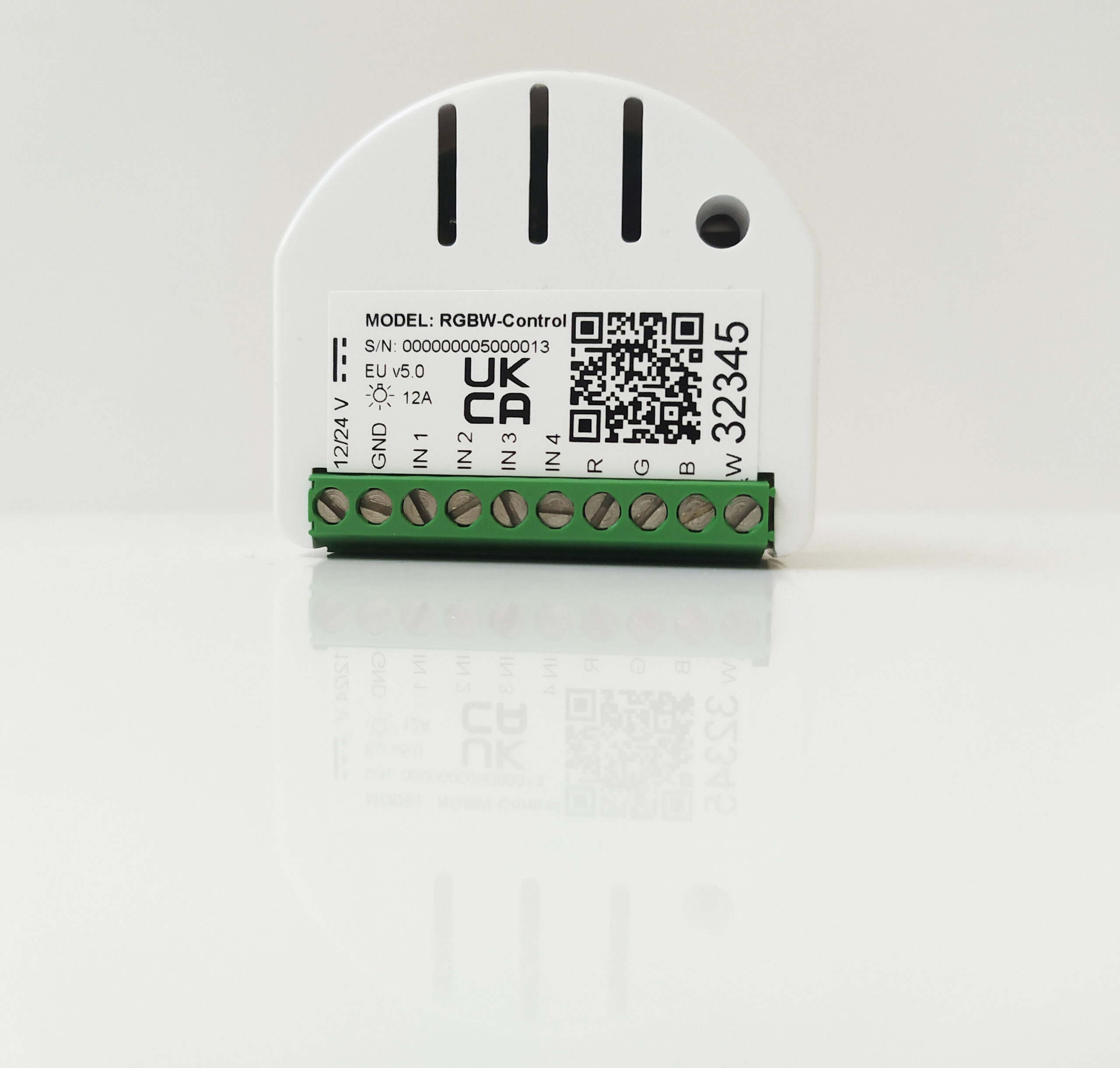

1 | Remember device status before the power failure | This parameter determines how the device will react in the event of power supply failure (e.g. power outage or taking out from the electrical outlet).
After the power supply is back on, the device can be restored to previous state or remain switched off. The sequence is not remembered after the power returns. After power failure, the last color set before the sequence will be restored. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | device remains switched off | 1 | 1 | device restores the state from before the power failure |
|
23 | Input 4 - operating mode | This parameter allows to choose mode of 4th input (IN4). Change it depending on connected device. | 1 | 1 | 0 | 4 | 2 | From | To | Description |
|---|
0 | 0 | Analog input without internal pull-up (Sensor Multilevel) | 1 | 1 | Analog input with internal pull-up (Sensor Multilevel) | 2 | 2 | Momentary switch (Central Scene) | 3 | 3 | Toggle switch: switch state on every input change (Central Scene) | 4 | 4 | Toggle switch: contact closed – ON, contact opened – OFF (Central Scene) |
|
31 | Alarm configuration - 2nd slot | This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.
X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157). | 1 | 4 | 0 | 2147483647 | 100597760 | From | To | Description |
|---|
0 | 255 | [LSB] – Action | 256 | 65535 | Event/State Parameters | 65536 | 16777215 | Notification Status | 16777216 | 2147483647 | [MSB] – Notification Type |
|
63 | Analog inputs reports and output change on input change | This parameter defines minimal change (from the last reported) of analog input voltage that results in sending new report and change in the output value. Parameter is relevant only for analog inputs (parameter 20, 21, 22 or 23 set to 0 or 1). | 1 | 2 | 0 | 100 | 5 | From | To | Description |
|---|
0 | 0 | reporting on change disabled | 1 | 100 | 0.1 - 10 V, 0.1 V step |
|
65 | Energy reports - on change | This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller. Energy reports are sent no often than every 30 seconds. | 1 | 2 | 0 | 500 | 10 | From | To | Description |
|---|
0 | 0 | reports are disabled | 1 | 500 | (0.01 - 5 kWh) - change in energy |
|
150 | Inputs - LED colour control mode | This parameter determines how connected switches control LED strips. | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | RGBW mode (every input controls output with the same number, IN1‑OUT1, IN2‑OUT2, IN3‑OUT3, IN4‑OUT4) | 1 | 1 | HSB and White mode (inputs works in HSB color model, IN1‑H (Hue), IN2‑S (Saturation), IN3‑B (Brightness), IN4‑White (OUT4) |
|
151 | Local control - transition time | This parameter determines time of smooth transition between 0% and 100% when controlling with connected switches. | 1 | 2 | 0 | 254 | 3 | From | To | Description |
|---|
0 | 0 | instantly | 1 | 127 | 1 s - 127 s, 1 s step | 128 | 254 | 1 min - 127 min, 1 min step |
|
152 | Remote control - transition time | This parameter determines time needed to change the state between current and target values when controlling via Z-Wave network. | 1 | 2 | 0 | 254 | 0 | From | To | Description |
|---|
0 | 0 | instantly | 1 | 127 | 1 s - 127 s, 1 s step | 128 | 254 | 1 min - 127 min, 1 min step |
|
154 | ON frame value for single click | This parameter defines value sent to devices in association groups.
The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).
Applicable for Basic Set and Switch Multilevel Set commands. | 1 | 4 | 0 | 2147483647 | 2147483647 | From | To | Description |
|---|
0 | 99 | value for every byte (MSB to LSB) | 255 | 255 | value for every byte (MSB to LSB) |
|
155 | OFF frame value for single click | This parameter defines value sent to devices in association groups.
The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).
Applicable for Basic Set and Switch Multilevel Set commands. | 1 | 4 | 0 | 2147483647 | 0 | From | To | Description |
|---|
0 | 99 | value for every byte (MSB to LSB) | 255 | 255 | value for every byte (MSB to LSB) |
|
156 | ON frame value for double click | This parameter defines value sent to devices in association groups.
The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).
Applicable for Basic Set and Switch Multilevel Set commands. | 1 | 4 | 0 | 2147483647 | 1667457891 | From | To | Description |
|---|
0 | 99 | value for every byte (MSB to LSB) | 255 | 255 | value for every byte (MSB to LSB) |
|
157 | Start programmed sequence | Setting this parameter will start programmed sequence with selected number. User can define own sequences via controller. While the sequence is active, the menu is unavailable. | 1 | 1 | 0 | 10 | 0 | From | To | Description |
|---|
0 | 0 | sequence inactive | 1 | 5 | user-defined sequence | 6 | 6 | Fireplace sequence | 7 | 7 | Storm sequence | 8 | 8 | Rainbow sequence | 9 | 9 | Aurora sequence | 10 | 10 | Police (red-white-blue) sequence |
|
