Product Recognition

Certification Number

ZC10-19096751

Name

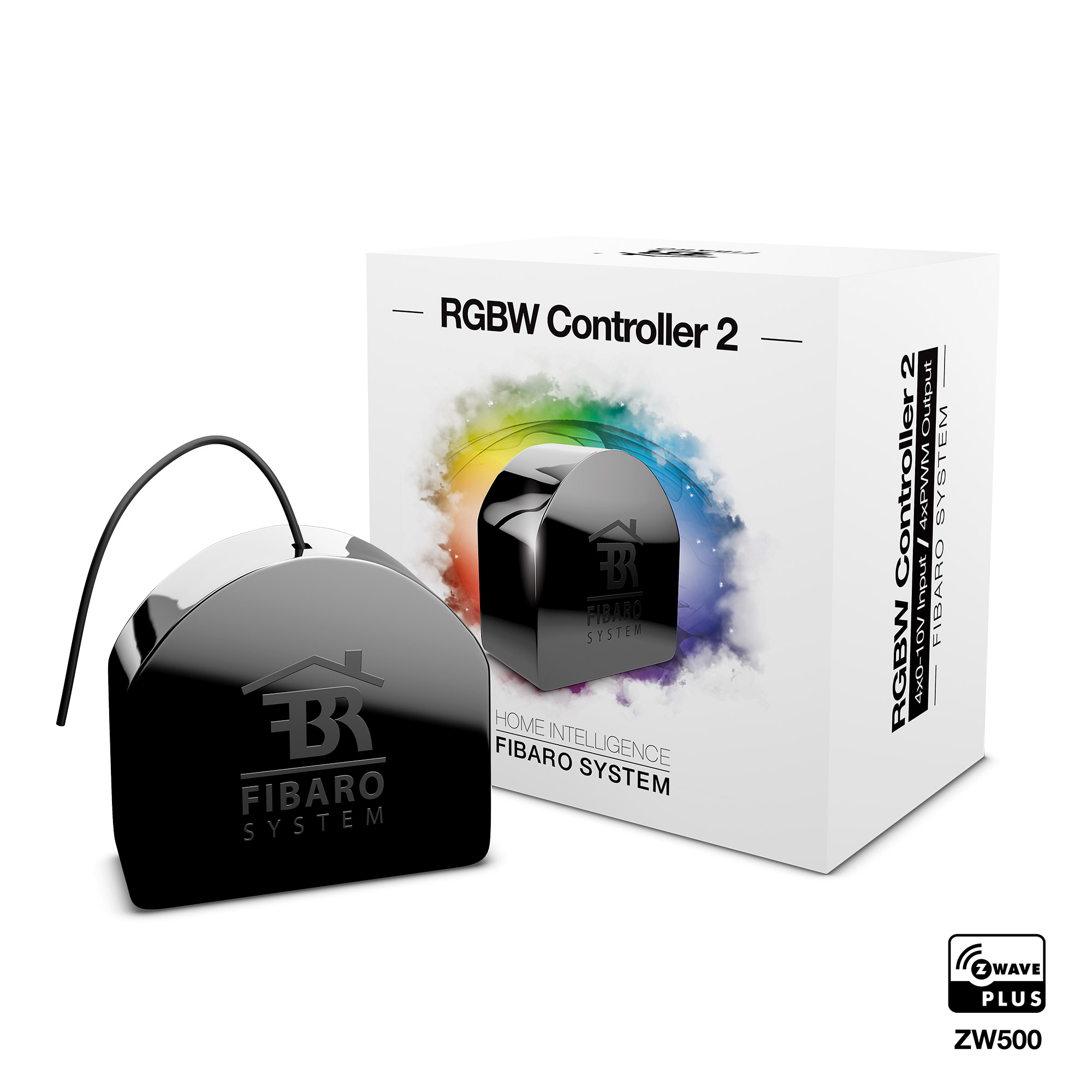

RGBW Controller 2

Short Description

FIBARO RGBW Controller 2 is a universal, Z-Wave Plus compatible RGB/RGBW controller.

Long Description

FIBARO RGBW Controller 2 is a universal, Z-Wave Plus compatible RGB/RGBW controller. FIBARO RGBW Controller 2 uses PWM output signal, allowing it to control LED, RGB, RGBW strips, halogen lights and other resistive loads. It can also measure active power and energy consumed by the load. Controlled devices may be powered by 12 or 24V DC. Inputs support momentary/toggle switches and 0-10V analog sensors, like temperature sensors, humidity sensors, light sensors etc. Main features of FIBARO RGBW Controller: • Compatible with any certified Z-Wave or Z-Wave Plus controller. • Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. • Works as a Z-Wave signal repeater. • Allows for controlling: » RGB/RGBW LED strip, » one-color LED strips, » halogen lights, » other compliant resistive loads. • Allows for connecting to inputs: » switches/buttons, » 0-10V analog sensors or potentiometers. • Active power and energy metering.

Brand

FIBARO

Product Identifier

FGRGBW-442

Product Line

FIBARO RGBW Controller 2

OEM Version

HW: 2 FW: 5.00:05.00:01.00

Hardware Platform

ZM5101

Z-Wave Version

6.81.03

Library Type

SLAVE_ENHANCED_232

Device Type

Multilevel Switch - Color Tunable Multilevel

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x010F

Product Type ID

0x0902

Product ID

0x4000

User Icon

0x0600

Installer Icon

0x0600

Frequency Plans

RU: 869.00MHz

Categories

All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices, Lighting Accessories

Countries / Regions

Russian Federation

Supported Command Classes

Controlled Command Classes

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

Input 2 - sent scenes

This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 21 is set to 2, 3 or 4.

From	To	Description
1	1	Key pressed 1 time
2	2	Key pressed 2 times
4	4	Key pressed 3 times
8	8	Key hold down and key released

Input 3 - sent scenes

This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 22 is set to 2, 3 or 4.

From	To	Description
1	1	Key pressed 1 time
2	2	Key pressed 2 times
4	4	Key pressed 3 times
8	8	Key hold down and key released

Input 4 - sent scenes

This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 23 is set to 2, 3 or 4.

From	To	Description
1	1	Key pressed 1 time
2	2	Key pressed 2 times
4	4	Key pressed 3 times
8	8	Key hold down and key released

Remember device status before the power failure

This parameter determines how the device will react in the event of power supply failure (e.g. power outage or taking out from the electrical outlet). After the power supply is back on, the device can be restored to previous state or remain switched off.

From	To	Description
0	0	device remains switched off
1	1	device restores the state from before the power failure

Input 4 - operating mode

This parameter allows to choose mode of 4th input (IN4). Change it depending on connected device.

From	To	Description
0	0	Analog input without internal pull-up (Sensor Multilevel)
1	1	Analog input with internal pull-up (Sensor Multilevel)
2	2	Momentary switch (Central Scene)
3	3	Toggle switch: switch state on every input change (Central Scene)
4	4	Toggle switch: contact closed – ON, contact opened – OFF (Central Scene)

Alarm configuration - 2nd slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157).

From	To	Description
1	1	[MSB] – Notification Type
2	2	Notification Status
3	3	Event/State Parameters
4	4	[LSB] – action: 0x00 – no reaction, 0x0X – turn off selected channel, 0x1X – turn on selected channel, 0x2X – blink selected channel, 0x3Y – activate alarm sequence

Analog inputs reports - on change

This parameter defines minimal change (from the last reported) of analog input voltage that results in sending new report. Parameter is relevant only for analog inputs (parameter 20, 21, 22 or 23 set to 0 or 1). Analog inputs reports (Sensor Multilevel) are sent no often than every 30 seconds.

From	To	Description
0	0	reporting on change disabled
1	100	(0.1-10V, 0.1V step)

Energy reports - on change

This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller. Energy reports are sent no often than every 30 seconds.

From	To	Description
0	0	reports are disabled
1	500	(0.01 - 5 kWh) - change in energy

150

Inputs - LED colour control mode

This parameter determines how connected switches control LED strips.

From	To	Description
0	0	RGBW mode (every input controls output with the same number, IN1‑OUT1, IN2‑OUT2, IN3‑OUT3, IN4‑OUT4)
1	1	HSB and White mode (inputs works in HSB color model, IN1‑H (Hue), IN2‑S (Saturation), IN3‑B (Brightness), IN4‑White (OUT4)

151

Local control - transition time

This parameter determines time of smooth transition between 0% and 100% when controlling with connected switches.

From	To	Description
0	0	instantly
1	127	(1s-127s, 1s step)
128	254	(1min-127min, 1min step)

152

Remote control - transition time

This parameter determines time of smooth transition between initial and target state when controlling via Z-Wave network.

From	To	Description
0	0	instantly
1	127	(1s-127s, 1s step)
128	254	(1min-127min, 1min step)

154

ON frame value for single click

This parameter defines value sent to devices in association groups. The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).

From	To	Description
0	99	value sent to devices
255	255	value sent to devices

155

OFF frame value for single click

This parameter defines value sent to devices in association groups. The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).

From	To	Description
0	99	value sent to devices
255	255	value sent to devices

156

ON frame value for double click

This parameter defines value sent to devices in association groups. The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).

From	To	Description
0	99	value sent to devices
255	255	value sent to devices

157

Start programmed sequence

Setting this parameter will start programmed sequence with selected number. User can define own sequences via controller.

From	To	Description
0	0	sequence inactive
1	5	user-defined sequence
6	6	Fireplace sequence
7	7	Storm sequence
8	8	Rainbow sequence
9	9	Aurora sequence
10	10	Police (red-white-blue) sequence

Texts

ID	Description	Value
8	Where to find S2 DSK on product	If you are adding in Security S2 Authenticated, input the underlined part of the DSK (label on the box).
1	Classic Inclusion	Adding (Inclusion) – Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. Adding manually: To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times click the service button. 4. If you are adding in Security S2 Authenticated, input the underlined part of the DSK (label on the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED: • Green – successful (non-secure, S0, S2 Unauthenticated), • Magenta – successful (Security S2 Authenticated), • Red – not successful. Adding using Smart Start: To add the device to the Z-Wave network using SmartStart: 1. To use SmartStart your controller needs to support Security S2(see the controller’s manual). 2. Enter the full DSK string code to your controller. If your controller is capable of QR scanning, scan the QR code placed on the label on the box. 3. Power the device. 4. Wait for the adding process to start (up to few minutes), which is signalled with yellow LED blinking. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED: • Green – successful (non-secure, S0, S2 Unauthenticated), • Magenta – successful (Security S2 Authenticated), • Red – not successful.
2	Classic Exclusion	Removing (Exclusion) – Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network. Removing also results in resetting the device to factory defaults. To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times click the service button. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour.
5	Factory Reset Procedure	Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Press and hold the service button to enter the menu. 2. Release service button when the device glows yellow. 3. Quickly click the service button to confirm. 4. After few seconds the device will be restarted, which is signalled with the red colour. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described.

Supported / Controlled Meter Types

Supported Notification Types

Supported Multilevel Sensors

Supports NWI

Yes

Supports Explorer Frames

Yes

Supports SmartStart

Yes

Radio Range Z-Wave (m)
