Product Recognition | |
|---|
Certification Number | ZC14-25110556 |
|---|

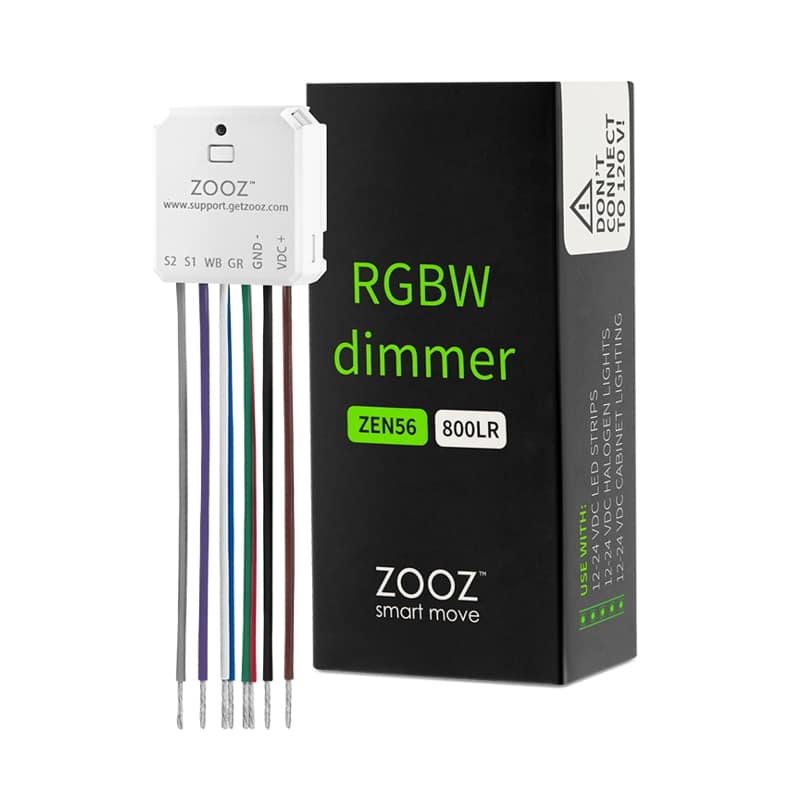

Name | RGBW Dimmer |
|---|
Short Description | Add Z-Wave Long Range to your RGBW LED strip with the ZEN56 800LR smart dimmer. |
|---|
Description | FEATURES:
- Manual or Z-Wave® on/off, brightness, and RGBW color control
- Perfect for programming your existing RGBW LED strip
- Smooth dimming with instant status updates
- Installs behind your existing wall switch (on/off or momentary)
- 800 series Z-Wave® chip for better range and faster control
- Z-Wave® Long Range for ultra reliable no-mesh communication
- Advanced configuration including adjustable ramp rate
- Built-in Z-Wave® signal repeater for boosted communication
- SmartStart and S2 Security for a safer network
SPECS:
- Model Number: ZEN56 800LR
- Power: 12-24 V DC
- Maximum Load: 10 A total (6 A / channel)
- Range: Up to 300 feet line of sight (or up to 1300 ft with ZWLR)
- Dimensions: 1.5" tall, 1.4" wide, 0.7" deep
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Brand Owner | Zooz |
|---|
Identifier | ZEN56 800LR |
|---|
Product Line | Light Switches |
|---|
Product URL | https://www.thesmartesthouse.com › products › zooz-z-wave-long-range-rgbw-dimmer-zen56-800lr-for-led-strips |
|---|
OEM Version | HW: 01 FW: 01.10 |
|---|
Hardware Platform | EFR32ZG23A |
|---|
Z-Wave Version | 7.23.1 |
|---|
Library Type | END_NODE_ENHANCED_232 |
|---|
Device Type | Color Switch DT |
|---|
Role Type | ROLE_TYPE_END_NODE_ALWAYS_ON |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0250 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
Radio Range Z-Wave LR (m) | 400 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz, US_LR: 912.00MHz, 920.00MHz |
|---|
Categories | Dimming Lighting Devices |
|---|
Countries / Regions | Argentina, Bahamas, Barbados, Bermuda, Bolivia, British Virgin Islands, Canada, Cayman Islands, Colombia, Guatemala, Haiti, Honduras, Jamaica, Mexico, Panama, Saint Kitts and Nevis, Suriname, Trinidad and Tobago, Turks and Caicos Islands, United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information (AGI) V3 | 0x59 | 3 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V5 | Firmware Update Meta Data V5 | 0x7A | 5 | COMMAND_CLASS_INDICATOR_V3 | Indicator V3 | 0x87 | 3 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SECURITY_2 | Security 2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_COLOR_V3 | Color Switch V3 | 0x33 | 3 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V4 | Multilevel Switch V4 | 0x26 | 4 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_CONFIGURATION_V4 | Configuration V4 | 0x70 | 4 |
|
|---|
S2 Classes | S2_AUTHENTICATED, S2_UNAUTHENTICATED |
|---|
Documents | Category | File |
|---|
Manual_English | |
|
|---|
Features | Feature | Values |
|---|
Electric Load Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile |
|---|
1 | 5 | 0 | Lifeline | 0x0001 | 2 | 5 | 0 | On/Off Control EP0 | 0x2001 | 3 | 5 | 0 | Multilevel Set EP0 | 0x2001 | 4 | 5 | 0 | Multilevel Start/Stop EP0 | 0x2001 |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value |
|---|
1 | On/Off Status After Power Failure | Set the on off status for the dimmer after power failure. | 2 | 1 | 0 | 0 | 0x02 | 2 | S1 Switch Type | Choose the wall switch type you want to connect to the S1 input on the dimmer. See documentation for details. | 2 | 1 | 0 | 0 | 0x01 | 3 | S2 Switch Type | Choose the wall switch type you want to connect to the S2 input on the dimmer. See documentation for details. | 2 | 1 | 0 | 0 | 0x01 | 4 | S1 Scene Control | Enable or disable scene control functionality for quick double tap triggers for S1 input. | 2 | 1 | 0 | 0 | 0x01 | 5 | S2 Scene Control | Enable or disable scene control functionality for quick double tap triggers for S2 input. | 2 | 1 | 0 | 0 | 0x01 | 6 | Enable S2 Input | Enable (1) or disable (0) the S2 secondary input for the dimmer. See documentation for details. | 2 | 1 | 0 | 0 | 0x00 | 7 | S2 Input Control | Assign the S2 input to control the white channel (value 1) on the RGBW dimmer. See documentation for details. | 2 | 1 | 0 | 0 | 0x00 | 8 | Color Cross-Fade Transition | Adjust the duration (in seconds) of the transition between colors for a smooth cross-fade effect. 0 – instant transition. | 1 | 1 | 0 | 0 | 0x03 | 9 | Physical Ramp Rate ON | Adjust the ramp rate ON for your dimmer when the switch paddle is pressed for a smooth fade-in effect (in seconds). | 1 | 1 | 0 | 0 | 0x05 | 10 | Physical Ramp Rate OFF | Adjust the ramp rate OFF for your dimmer when the switch paddle is pressed for a smooth fade-out effect (in seconds). | 1 | 1 | 0 | 0 | 0x05 | 11 | Z-Wave Ramp Rate ON | Adjust the ramp rate ON for your dimmer when controlled with Z-Wave for a smooth fade-in effect (in seconds). | 1 | 1 | 0 | 0 | 0x64 | 17 | Color Animation Presets | Enable one of the color animation presets to set the mood with a single click. See documentation for details. | 2 | 1 | 0 | 0 | 0x00 |
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | SmartStart: use the hub UI / app to scan the SmartStart code on the device. The SmartStart QR code / security PIN is located on the back of the dimmer. Just power the device for SmartStart inclusion, it will be added automatically. | 1 | Classic Inclusion | Manual inclusion: initiate inclusion (pairing) in the app or hub UI. Make sure the device is powered and finalize the inclusion at the dimmer: tap the Z-Wave® button 3 times quickly. | 2 | Classic Exclusion | 1. Bring your Z-Wave® hub close to the device if possible
2. Put the Z-Wave® hub into exclusion mode (not sure how
to do that? ask@getzooz.com)
3. Click the Z-Wave® button on the device 3 times quickly
(the LED indicator will start blinking green)
4. Your hub will confirm exclusion, the LED indicator on the
device will turn green for 2 seconds, and the ZEN56 will
disappear from your controller's device list. | 5 | Factory Reset Procedure | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To reset the ZEN56, click the Z-Wave® button once and immediately after, press and hold it down for 15 seconds. The LED indicator will flash red during the process and turn solid red for 3 seconds to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
