Product Recognition | |
|---|
Certification Number | ZC10-19086720 |
|---|

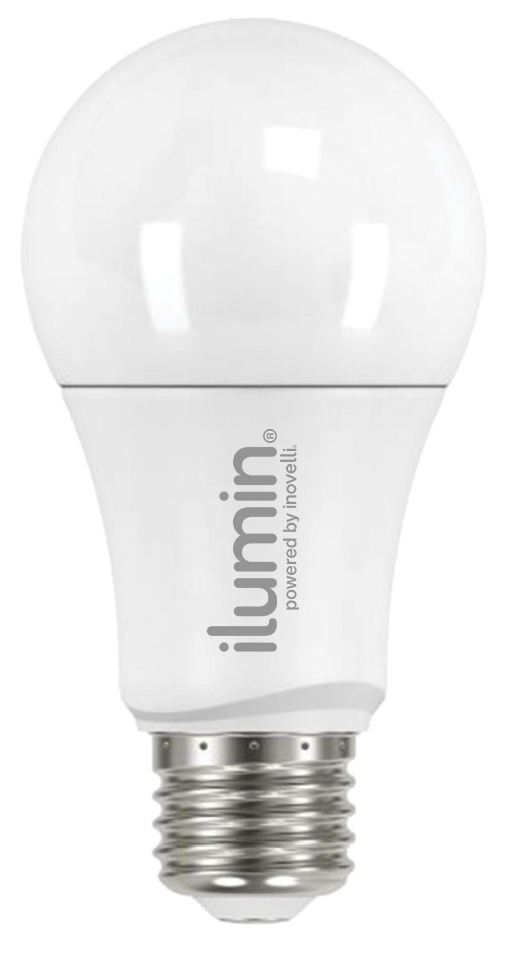

Name | RGBW Smart Bulb |
|---|
Short Description | The RGBW bulb by ilumin allows you to experience a vast array of colors across the RGB spectrum, while also allowing you to tune your bulb to the proper Kelvin (warm or cold white). All powered by Z-Wave Plus technology. |
|---|
Long Description | With 806 lumens, millions of colors, tunable white, and smooth dimming, this bulb has it all. Best part? It's powered by Z-Wave Plus technology. Imagine walking into a room, tapping a switch (hopefully Inovelli) and your ilumin lights come on to a beautiful movie scene. Or as you're winding down for the night, switch from cool white to warm and gradually dim off the lights as you drift to sleep. These are some of the many things you can do with smart bulbs and we're excited to be able to share them with you. |
|---|
Brand | Ilumin by Inovelli |
|---|
Product Identifier | LZW42 |
|---|
Product Line | Smart Lighting |
|---|
OEM Version | HW: 0 FW: 2.25 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.51.09 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x031E |
|---|
Product Type ID | 0x0005 |
|---|
Product ID | 0x0001 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Dimming Lighting Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_ALL | Switch All | 0x27 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V2 | Switch Multilevel V2 | 0x26 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_SWITCH_COLOR | Switch Color | 0x33 | 1 | COMMAND_CLASS_FIRMWARE_UPDATE_MD_V2 | Firmware Update Meta-Data V2 | 0x7A | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual in English | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Manufacturer |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Profile | Description |
|---|
1 | 1 | 0 | Lifeline | 0x0001 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
51 | Color Adjustment (Warm White) | This parameter adjusts the bulb along the warm-white spectrum. | 1 | 2 | 1387 | 4999 | 1387 | From | To | Description |
|---|
1387 | 4999 | Changes the Kelvin from 2700k (1387) to 4999k (4999) |
| 52 | Color Adjustment (Cool White) | This parameter adjusts the bulb along the cool-white spectrum. | 1 | 2 | 5000 | 6500 | 6500 | From | To | Description |
|---|
5000 | 6500 | Changes the Kelvin from 5000k (5000) to 6500k (6500) |
| 2 | Memory Function | This parameter will determine how your bulb behaves after power is restored to it from an outage. | 1 | 1 | 0 | 2 | 0 | From | To | Description |
|---|
0 | 0 | Remembers Last State | 1 | 1 | Bulb turns ON after power outage | 2 | 2 | Bulb turns OFF after power outage |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | Start the inclusion process on your HUB/Gateway.
Once the inclusion process has started, turn on and off power to the bulb 3x (ie: Turn On, Turn Off, Turn On, Turn Off, Turn On) and the bulb should flash 3x indicating it’s in inclusion mode.
If the bulb was included successfully, it will blink one more time. If it was not included successfully, you may have to run an exclusion as mentioned above. If there’s still issues, please ensure your bulb is within range (Pages 2 & 3). | 2 | Classic Exclusion | If you are having issues pairing/including your device, please ensure your bulb is within range of your HUB (pages 2-3). If you believe you’re within range and it’s still not working, then you may have to run an Exclusion. Put your HUB in Exclusion mode and turn the power on/off/on/off/on/off/on (3x on and 2x off) until your bulb blinks three (3x) and then blinks 1x to confirm. Your HUB should say that the device is excluded. You may then add (include) the bulb per the instructions below. | 5 | Factory Reset Procedure | You may power on/off the bulb 6x (between 0.5-2 seconds each time) or use a certified controller to remove the device from your network to factory default. Only use this procedure in the event that the network primary controller is missing or otherwise inoperable. Your bulb will flash twice to confirm factory reset. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
