Certification Number | ZC10-19116786 |
|---|

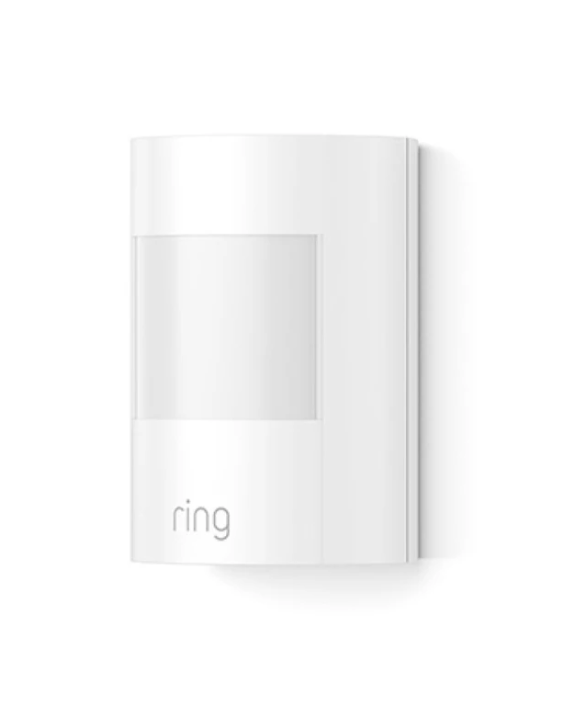

Name | Ring Motion Detector (EU) |
|---|
Short Description | The Alarm Motion Sensor sends alerts whenever motion is detected inside your home. It connects to your Ring Alarm Base Station and mounts to any indoor wall or corner, so you’ll always know when there’s activity at home. |
|---|
Long Description | The Alarm Motion Sensor sends alerts whenever motion is detected inside your home. It connects to your Ring Alarm Base Station and mounts to any indoor wall or corner, so you’ll always know when there’s activity at home.
* Requires the Ring Alarm Security Kit
* Advanced motion sensitivity to prevent false alarms from pets
* Mounts to room corners or flat walls |
|---|
Brand | Ring |
|---|
Product Identifier | 4SPAE9-0EU0 |
|---|
Product Line | Ring Security |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5101 |
|---|
Z-Wave Version | 6.81.04 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | Notification Sensor |
|---|
Role Type | ROLE_TYPE_SLAVE_SLEEPING_REPORTING |
|---|
Manufacturer ID | 0x0346 |
|---|
Product Type ID | 0x0301 |
|---|
Product ID | 0x0202 |
|---|
User Icon | 0x0C07 |
|---|
Installer Icon | 0x0C07 |
|---|
Frequency Plans | EU: 869.85MHz, 868.40MHz |
|---|
Categories | Sensors |
|---|
Countries / Regions | European Union |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC | Manufacturer Specific | 0x72 | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Battery Quantity | | Color | | Battery Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | This sensor has two Association groups of 1 nodes each. Group 1 is a lifeline group who will receive unsolicited messages relating to Motion Detected/Not Detected notifications, case tampering notifications, and low-battery notifications. | 2 | 1 | 0 | motion | When a node is associated with Group 2, the sensor will send a basic report of either 0xFF for “motion” or 0x00 for “no motion.”
|
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
5 | Wakeup Notification | One-Time Wakeup Notification. (In addition to normal Wakeup Notification) | 1 | 2 | 0 | 3600 | 0 | From | To | Description |
|---|
0 | 3600 | 1 (must be divisible by sleep step time of configuration parameter 7) to 3600 (0x0E10) |
| 1 | Battery report | Configures how often the sensor should send an unsolicited Battery Report to the Lifeline. | 1 | 2 | 255 | 4200 | 4200 | From | To | Description |
|---|
255 | 4200 | 255 to 4200 seconds in 255 second increments that the sensor should wait between sending unsolicited battery reports. |
| 2 | dwell window | Configures the “dwell” window or how long the sensor should not be detecting motion before sending the “no motion detected” message. | 1 | 1 | 1 | 9 | 3 | From | To | Description |
|---|
1 | 9 | 1 to 9 minutes. |
| 3 | Pet Immunity | Configures the “Pet Immunity,” or sensitivity of the motion detection used mostly so only human motion is detected. | 1 | 1 | 0 | 2 | 1 | From | To | Description |
|---|
0 | 2 | 0 to 2 sensitivity. 0: No pet immunity 1: 15kg (33lb) 2:25kg (55lb) |
| 6 | Application Level Retries | Number of Application Level Retries after a failed transmission defined as either not ACKed or Supervision Report not returned when encapsulated. | 1 | 1 | 0 | 5 | 5 | From | To | Description |
|---|
0 | 5 | 0 is no application level retries to 5 |
| 7 | sleep between application level retries. | The minimum number of seconds to sleep between application level retries. | 1 | 1 | 1 | 60 | 6 | From | To | Description |
|---|
1 | 6 | 1 to 60 seconds |
| 8 | Supervisory Report | The number of milliseconds to wait for a Supervisory Report in response to a Supervisory encapsulated Get. | 1 | 2 | 500 | 5000 | 1500 | From | To | Description |
|---|
500 | 5000 | 500 to 5000 milliseconds |
| 9 | Sleep step time | The number of seconds the device will sleep between waking up to increment its Wakeup and Heartbeat counter. Also the sleep step time. | 1 | 2 | 1 | 255 | 0 | From | To | Description |
|---|
1 | 255 | 1 to 255 seconds |
|
|
|---|
Texts | ID | Description | Value |
|---|
8 | Where to find S2 DSK on product | Follow the instructions provided in Ring Alarm Mobile Application, select add manually and enter the 5 digit DSK pin found on the package of the sensor or found on the back of the sensor. | 1 | Classic Inclusion | Classic Inclusion Steps:
1. Initiate add sensor flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application
2. Follow the instructions provided in Ring Alarm Mobile Application, select add manually and enter the 5 digit DSK pin found on the package of the sensor or found on the back of the sensor
3. Pull the battery tab on the sensor
4. When the inclusion process in complete, the LED on the sensor will be solid blue, then go out.
5. Test the sensor. Place the sensor in an unoccupied room. Leave the room for at least four minutes. Return to the room and pass in front of the sensor – LED will flash if motion is detected.
Smart Start Inclusion Steps:
1. Initiate add sensor flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application
2. Follow the instructions provided in Ring Alarm Mobile Application, Scan the QR code found on the package of the sensor or the QR code found on the back of the sensor
3. Pull the battery tab on the sensor
4. When the inclusion process in complete, the LED on the sensor will be solid blue, then go out.
5. Test the sensor. Place the sensor in an unoccupied room. Leave the room for at least four minutes. Return to the room and pass in front of the sensor – LED will flash if motion is detected. | 2 | Classic Exclusion | Exclusion Instructions:
1. Initiate remove sensor flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device”
2. Open motion sensor’s cover
3. Remove and replace battery quickly | 4 | Wake-Up Procedure | Wake-Up Notification
The sensor will wake up every so often and when the case is closed to send a Wake-Up Notification to allow the life line master node controller that the sensor is now available for any queued messages that the controller may have for the sensor. The time between Wake-Up Notifications can be configured with the Wake-Up Notification command class to be between 1 and 24 hours. | 5 | Factory Reset Procedure | Factory Default Instructions
1. Using a pointed end of a paperclip, press and hold the reset button via the reset pin hole found at the back of the sensor
2. Blue LED will start to blink rapidly
3. Wait for the blue LED to stop blinking Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported Notification Types | Notification Type | Event / State |
|---|
Home Security | Motion sensor status: Motion detection | Home Security | Tampering, product moved | Power Management | Battery maintenance status: Replace battery soon | Power Management | Battery maintenance status: Replace battery now |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Supports SmartStart | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
