Product Recognition | |
|---|
Certification Number | ZC10-21067040 |
|---|

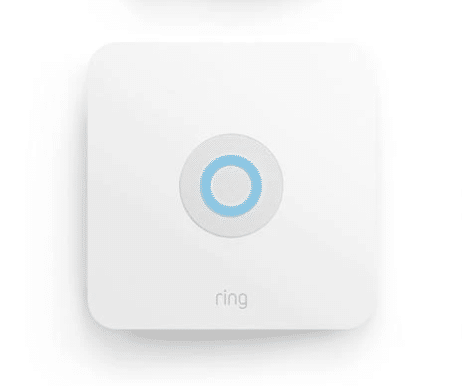

Name | Ring Protect Base Station |
|---|
Short Description | The Ring Base Station V2 adds a simple, smart, affordable professional security solution for your home. |
|---|
Long Description | The Ring Base station V2 adds a simple, smart, affordable security solution for your home. |
|---|
Brand | Ring |
|---|
Product Identifier | Ring Base Station V2 |
|---|
Product Line | Ring Protect |
|---|
OEM Version | HW: 2 FW: 5.14:02.80:01.00:01.00 |
|---|
Hardware Platform | SD3502 |
|---|
Z-Wave Version | 6.81.02 |
|---|
Library Type | CONTROLLER_BRIDGE |
|---|
Device Type | Central Controller |
|---|
Role Type | ROLE_TYPE_CONTROLLER_CENTRAL_STATIC |
|---|
Manufacturer ID | 0x0346 |
|---|
Product Type ID | 0x0001 |
|---|
Product ID | 0x0101 |
|---|
User Icon | 0x0500 |
|---|
Installer Icon | 0x0500 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | Security Systems |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_INCLUSION_CONTROLLER | Inclusion Controller | 0x74 | 1 | COMMAND_CLASS_APPLICATION_STATUS | Application Status | 0x22 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 | Association Group Information V2 | 0x59 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_DOOR_LOCK | Door Lock | 0x62 | 1 | COMMAND_CLASS_THERMOSTAT_FAN_MODE | Thermostat Fan Mode | 0x44 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_BATTERY | Battery | 0x80 | 1 | COMMAND_CLASS_THERMOSTAT_MODE | Thermostat Mode | 0x40 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_CRC_16_ENCAP | CRC16 Encapsulation | 0x56 | 1 | COMMAND_CLASS_SECURITY | Security S0 | 0x98 | 1 | COMMAND_CLASS_WAKE_UP_V2 | Wake Up V2 | 0x84 | 2 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_MULTI_CHANNEL_V4 | Multi-Channel V4 | 0x60 | 4 | COMMAND_CLASS_THERMOSTAT_SETPOINT | Thermostat Setpoint | 0x43 | 1 | COMMAND_CLASS_NOTIFICATION_V8 | Notification V8 | 0x71 | 8 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2 | Association Group Information V2 | 0x59 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED, S2_AUTHENTICATED, S2_ACCESS_CONTROL |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Communications Protocol | Value |
|---|
Manufacturer Proprietary Protocol |
| Sensors | | Supported Notification Types | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 1 | 0 | Lifeline | This base station has Group 1 is the “Lifeline” group, which can hold one devices. Base station will send device reset locally notification to this group. |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | Classic Inclusion Steps:
1. Start inclusion mode on the primary controller
2. From the application’s UI, navigate to controller’s device setting screen -> select Advance options -> Select Z-wave from “Protocol Adapters” and Select “Learn Mode” – DSK will be displayed (refer to the picture below)
3. Select “Begin Learn Mode” in the UI
4. When the inclusion process in complete, the LED on the base station will be solid blue
Note: Joining another Z-Wave network via learn mode is available only when the base station is not already paired to any other devices | 2 | Exclusion | Exclusion Instructions:
1. Start exclusion mode on the primary controller
2. From the application’s UI, navigate to controller’s device setting screen -> select Advance options -> Select Z-wave from “Protocol Adapters” and Select “Learn Mode” – DSK will be displayed
3. Select “Begin Learn Mode” in the UI
4. When the exclusion process in complete, the LED on the base station will be solid blue | 3 | Controller Learn Mode | *Learn Mode*
Learn Mode allows you to add a controller to an existing Z-Wave network. When a controller enters Learn Mode, it looks for another controller to communicate with.
To enter Learn Mode:
1. From the application’s UI, navigate to controller’s device setting screen -> select Advance options -> Select Z-wave from “Protocol Adapters” and Select “Learn Mode” – DSK will be displayed (refer to the picture below)
2. Select “Begin Learn Mode” in the UI
3. When the inclusion process in complete, the LED on the base station will be solid blue | 5 | Factory Reset Procedure | 1. Launch Ring app (iOS or Android)
2. Navigate to Base Station Setting: Devices à Alarm Base Station à Tap on gear icon located on top right-hand corner
3. Navigate to Advanced Options à Z-Wave
4. Tap “Reset Z-Wave Network” and Select “Reset”
Warning: This process is irreversible. All your Z-Wave devices will be removed from your Base Station. You will have to manually reset and re-add each device to rebuild your network.
Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. | 8 | Where to find S2 DSK on product | Base station is a controller, DSK will be displayed during "Learn Mode" -
Classic Inclusion Steps:
1. Start inclusion mode on the primary controller
2. From the application’s UI, navigate to controller’s device setting screen -> select Advance options -> Select Z-wave from “Protocol Adapters” and Select “Learn Mode” – DSK will be displayed (refer to the picture below)
3. Select “Begin Learn Mode” in the UI
4. When the inclusion process in complete, the LED on the base station will be solid blue
Joining another Z-wave network via learn mode is available only when the base station is not already paired to any other devices | 23 | Controller Classic Inclusion | Classic Inclusion Steps:
1. Start inclusion mode on the primary controller
2. From the application’s UI, navigate to controller’s device setting screen -> select Advance options -> Select Z-wave from “Protocol Adapters” and Select “Learn Mode” – DSK will be displayed (refer to the picture below)
3. Select “Begin Learn Mode” in the UI
4. When the inclusion process in complete, the LED on the base station will be solid blue
Joining another Z-wave network via learn mode is available only when the base station is not already paired to any other devices | 24 | Controller Classic Exclusion | Exclusion Instructions
1. Start exclusion mode on the primary controller
2. From the application’s UI, navigate to controller’s device setting screen -> select Advance options -> Select Z-wave from “Protocol Adapters” and Select “Learn Mode” – DSK will be displayed
3. Select “Begin Learn Mode” in the UI
4. When the exclusion process in complete, the LED on the base station will be solid blue | 10 | Controller Replication | Controller replication can be initiated by adding another controller into the network |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
