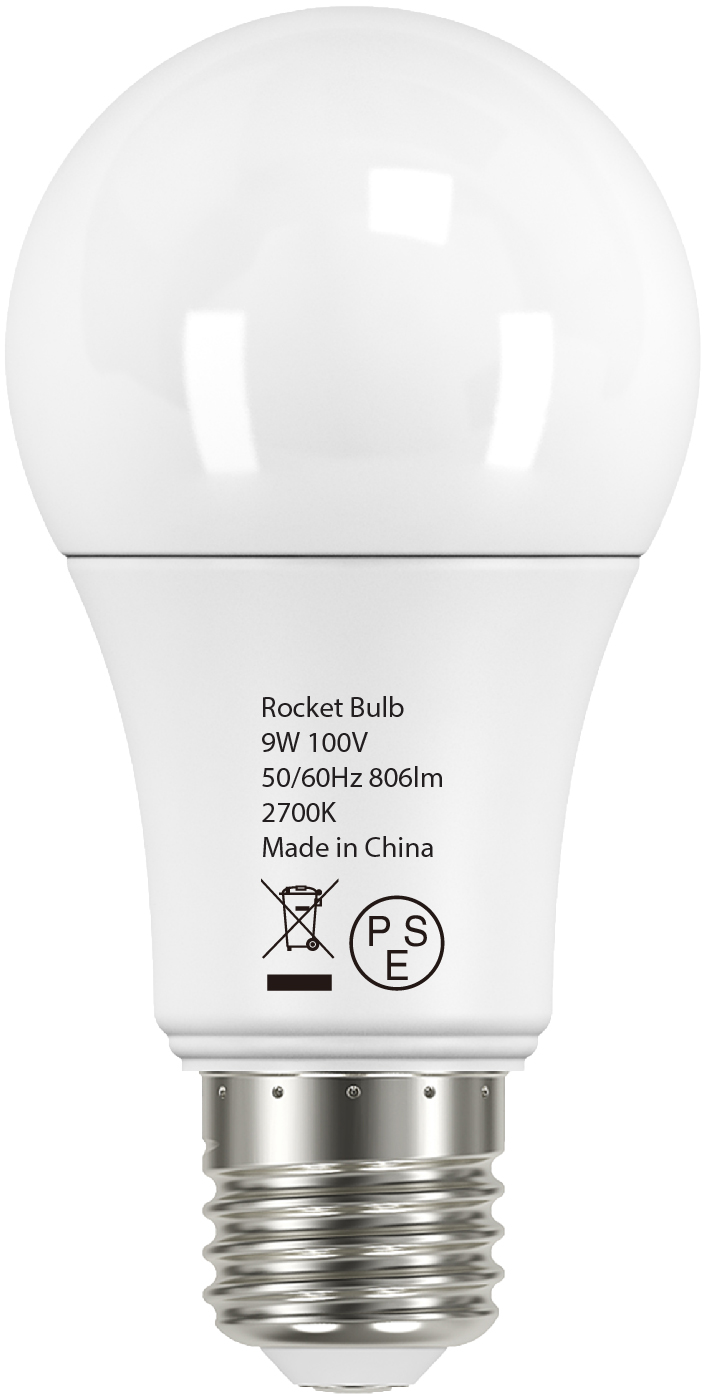

COMMAND_CLASS_SCENE_ACTUATOR_CONF

Scene Actuator Conf

0x2C

1

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_SECURITY

Security S0

0x98

1

COMMAND_CLASS_SWITCH_MULTILEVEL_V2

Switch Multilevel V2

0x26

2

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO

Association Group Info

0x59

1

COMMAND_CLASS_SECURITY_2

Security S2

0x9F

1

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_SCENE_ACTIVATION

Scene Activation

0x2B

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

Manual_Primary_Lang

Product or Owner's Manual

Firmware Updatable

Communications Protocol

1

5

0

Z-Wave Plus Lifeline 1. When the state of the LED Bulb is changed: The Bulb will Send Switch Multilevel Report 2. Device Reset Locally.

2

Enable/Disable save the lamp state.

Enable/Disable save the lamp state. 0 = Enable save the lamp status 1 =The lamp’s status is forced to open 2 = The lamp’s status is forced to close

0

1

0

0

0

80

Enable to send notifications to associated devices (Group 1)

Enable to send notifications to associated devices (Group 1) when the state of LED Bulb is changed. 0 = Nothing. 1= Switch Multilevel Report.

0

1

0

0

1

2

Exclusion

Remove for exclusion: Trigger OFF->ON->OFF->ON->OFF->ON 1. LED Bulb will light up with previously saved state and send node info frame. 2. Remove for exclusion: a) Assuming led bulb was added to controller and was power on. b) Set the Z-Wave network main controller into removing mode. c) Power cycle triple for led bulb (OFF->ON->OFF->ON->OFF->ON). d) Wait a moment, the led bulb should be removed from the controller.Then the led bulb will flash once and dim to 5%.

1

Inclusion

SmartStart Inclusion: Trigger OFF->ON 1. The LED light will flash twice. 2. Add for inclusion(SmartStart Inclusion): Add the led bulb DSK into the primary controller Smart Start Provisioning List (If your controller does not support SmartStart inclusion, please refer to the manual for your controller for non-SmartStart inclusion.) a) Power cycle once for led bulb. b) The led bulb will send “Explorer Auto inclusion” frame to start Smart Start Inclusion. c) Wait a moment, the led bulb should be added to the controller.Then the led bulb will flash once when it has been included into the network. Note: The led bulb will start SmartStart Inclusion when it is removed from a Z-Wave network. Normal Inclusion: Trigger OFF->ON->OFF->ON-->OFF->ON 1. The LED light will flash twice, and send node info frame. 2. Add for inclusion(Normal Inclusion): a) Set the Z-Wave network main controller into learning mode. b) Power cycle once for led bulb. c) Wait a moment, the led bulb should be added to the controller.Then the led bulb will flash once when it has been included into the network.

5

Factory Reset

Reset the device : Trigger:OFF->ON-> OFF->ON->OFF->ON->OFF->ON->OFF->ON->OFF->ON Led bulb re-power 6 times (between 0.5-2 seconds each time); If the 6th power on, the led bulb flashes twice, which means that the resetting is successful. it will send “Device Reset Locally Command”. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
