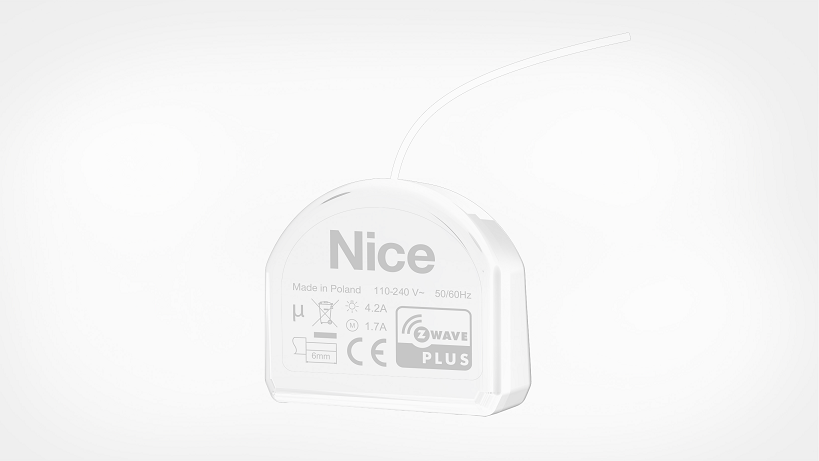

COMMAND_CLASS_POWERLEVEL

Powerlevel

0x73

1

COMMAND_CLASS_PROTECTION_V2

Protection V2

0x75

2

COMMAND_CLASS_APPLICATION_STATUS

Application Status

0x22

1

COMMAND_CLASS_BASIC

Basic

0x20

1

COMMAND_CLASS_CONFIGURATION

Configuration

0x70

1

COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3

Multi Channel Association V3

0x8E

3

COMMAND_CLASS_SECURITY_2

Security 2

0x9F

1

COMMAND_CLASS_CRC_16_ENCAP

CRC-16 Encapsulation

0x56

1

COMMAND_CLASS_SECURITY

Security 0

0x98

1

COMMAND_CLASS_MULTI_CHANNEL_V4

Multi Channel V4

0x60

4

COMMAND_CLASS_SWITCH_MULTILEVEL_V4

Multilevel Switch V4

0x26

4

COMMAND_CLASS_TRANSPORT_SERVICE_V2

Transport Service V2

0x55

2

COMMAND_CLASS_VERSION_V2

Version V2

0x86

2

COMMAND_CLASS_DEVICE_RESET_LOCALLY

Device Reset Locally

0x5A

1

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

Z-Wave Plus Info V2

0x5E

2

COMMAND_CLASS_ASSOCIATION_V2

Association V2

0x85

2

COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4

Firmware Update Meta Data V4

0x7A

4

COMMAND_CLASS_METER_V3

Meter V3

0x32

3

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

COMMAND_CLASS_CENTRAL_SCENE_V3

Central Scene V3

0x5B

3

COMMAND_CLASS_SUPERVISION

Supervision

0x6C

1

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

Manufacturer Specific V2

0x72

2

COMMAND_CLASS_ASSOCIATION_GRP_INFO_V2

Association Group Information V2

0x59

2

COMMAND_CLASS_NOTIFICATION_V8

Notification V8

0x71

8

Manual_Primary_Lang

Product Manual in English

1

1

0

Lifeline

0x0001

"Lifeline" reports the device status and allows for assigning single device only (main controller by default).

2

5

0

Roller Shutter

0x2001

“Roller Shutter” is assigned to IN1 input terminal (uses Switch Multilevel command class).

3

5

0

Slats

0x2002

"Slats" is assigned to IN2 input terminal (uses Switch Multilevel command class).

1

Switch type

This parameter defines as what type the device should treat the switch connected to the S1 and S2 terminals. This parameter is not relevant in gate operating modes (parameter 151 set to 3 or 4). In this case switch always works as a momentary and has to be connected to S1 terminal.

1

1

0

2

0

2

Inputs orientation

This parameter allows reversing the operation of switches connected to S1 and S2 without changing the wiring.

1

1

0

1

0

3

Outputs orientation

This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (in case of invalid motor connection) to ensure proper operation.

1

1

0

1

0

4

Alarm configuration - 1st slot

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

1

4

0

4

0

5

Alarm configuration - 2nd slot (Water)

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

1

4

0

4

0

9

S1 switch - scenes sent

This parameter determines which actions result in sending scene IDs assigned to them.

1

1

0

8

0

6

Alarm configuration - 3rd slot (Smoke)

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

1

4

0

4

0

7

Alarm configuration - 4th slot (CO)

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

1

4

0

4

0

8

Alarm configuration - 5th slot (Heat)

This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.

1

4

0

4

0

10

S2 switch - scenes sent

This parameter determines which actions result in sending scene IDs assigned to them.

1

1

0

8

0

11

Measuring power consumed by the device itself

This parameter determines whether the power metering should include the amount of active power consumed by the device itself.

1

1

0

1

0

17

Operating mode

This parameter allows adjusting operation according to the connected device.

1

1

1

6

1

23

Time of down movement

This parameter determines time needed for roller blinds to reach the bottom. For modes with positioning value is set automatically during calibration, otherwise it must be set manually

1

4

1

65535

6000

2

Classic Exclusion

To remove the device from the Z-Wave network: 1. Make sure the device is powered. 2. Identify the S1 switch. 3. Set the main controller in remove mode (see the controller’s manual). 4. Quickly, triple click the S1 switch. 5. Wait for the removing process to end. 6. Successful removing will be confirmed by the Z-Wave controller’s message.

5

Factory Reset Procedure

Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Note. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described in the “Adding the device” section. Resetting the device to factory defaults: 1. Switch off the mains voltage (disable the fuse). 2. Remove the device from the wall switch box. 3. Switch on the mains voltage. 4. Press and hold the B-button to enter the menu. 5. Wait for the LED indicator to glow yellow. 6. Quickly release and click the B-button again. 7. After few seconds the device will be restarted, which is signalled with the red LED indicator colour

1

Classic Inclusion

4.1 - Using the manual method To add the device to the Z-Wave network manually: 1. Power the device. 2. Identify the S1 switch. 3. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 4. Quickly, triple click the S1 switch. 5. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 6. Wait for the adding process to end. 7. Successful adding will be confirmed by the Z-Wave controller’s message. 4.2 - Using the SmartStart method 1. To add the device to the Z-Wave network using SmartStart: 2. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 3. Scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 4. Power the device (turn on the mains voltage). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.

8

Where to find S2 DSK on product

4.1 - Using the manual method To add the device to the Z-Wave network manually: 1. Power the device. 2. Identify the S1 switch. 3. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 4. Quickly, triple click the S1 switch. 5. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 6. Wait for the adding process to end. 7. Successful adding will be confirmed by the Z-Wave controller’s message. 4.2 - Using the SmartStart method 1. To add the device to the Z-Wave network using SmartStart: 2. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 3. Scan the DSK QR code or input the underlined 5-digit PIN code (label on the side of the box and on the device). 4. Power the device (turn on the mains voltage). 5. LED will start blinking yellow, wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.

Electric meter

Import

Electric Meter Consumption

Power Management

Over-current status: Over-current detected

System

HW status: System hardware failure (manufacturer proprietary failure code provided)
