Product Recognition | |
|---|
Certification Number | ZC10-20016838 |
|---|

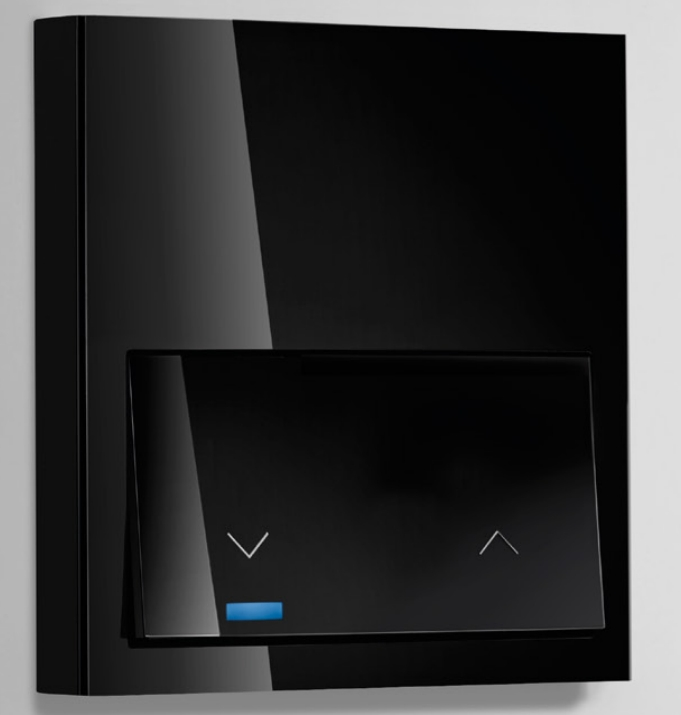

Name | S100 Master Rocker for Roller Blind (Russia) |
|---|
Short Description | Simon Master Roller Blind iO is a wall controller designed to increase the number of control points that manages roller blinds.
It is designed as additional control that works over window covering devices. |
|---|
Long Description | Master Roller Blind IO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. Sending the Blind controller by other window covering devices Up/Down/Stop. |
|---|
Brand | Simon |
|---|
Product Identifier | 10004081-13x |
|---|
Product Line | Simon 100 |
|---|
OEM Version | HW: 1 FW: 4.24:76.51 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | Wall Controller |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0267 |
|---|
Product Type ID | 0x0005 |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x1D02 |
|---|
Installer Icon | 0x1D02 |
|---|
Frequency Plans | RU: 869.00MHz |
|---|
Categories | Motor Control |
|---|
Countries / Regions | Russian Federation |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_Other_Lang_1 | Product Manual spanish | |
|
|---|
Features | Feature | Values |
|---|
Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
| Neutral Wire Required | | Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 3 | 0 | Lifeline | Z-Wave Plus Lifeline
After reset the Z-Wave module, a DEVICE-RESET-LOCALLY-NOTIFICATION is sent.
Pressing without having nodes associated with the control group is notified by a CENTRAL_SCENE_NOTIFICATION |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Association LED | Allows to turn ON or OFF the central LED | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Turns the LED OFF | 255 | 255 | Turns the LED ON |
| 25 | OFF VALUE | Sets the value when the action is OFF in percentage (0-99) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 99 | Set the value of OFF |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Classic Exclusion | When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. | 5 | Factory Reset Procedure | When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters.
Main LED will perform 1 Blink with 5 sec.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 6 | Other Special Features | When the pushbutton is released after a press of (10sec<T<30sec) the device will Set it into Manual Association Mode.
Central LED will blink slow during Association mode time.
Association mode allows add devices to Device Group 2.
If associated devices are Simon Devices, Master will turn on Central LED to inform the user about which devices are in.
Once association is finished, Master will turn off the Central LED to allow the normal use of the devices. | 1 | Classic Inclusion | When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device.
Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
