Product Recognition | |
|---|
Certification Number | ZC10-19046438 |
|---|

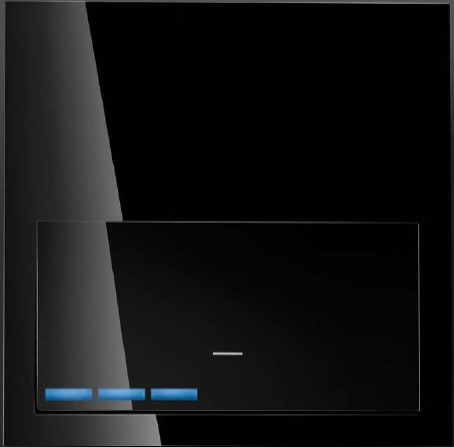

Name | S100 Rocker for Dimmer (China) |
|---|
Short Description | Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers an slider area in order to adjust the light level showing the dimming intensit y with 7 LEDs . |
|---|
Long Description | Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers an slider area in order to adjust the light level showing the dimming intensit y with 7 LEDs .
Simon iO Dimmer is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. |
|---|
Brand | Simon |
|---|
Product Identifier | 10003020-13X |
|---|
OEM Version | HW: 1 FW: 4.24:78.59:70.48 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0267 |
|---|
Product Type ID | 0x0007 |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | CN: 868.40MHz |
|---|
Categories | Energy Meters, All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | China |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
| Supported Meter Type | | Electric Load Type | Value |
|---|
Incandescent | Dimmable LED | Dimmable MLV (Magnetic) | Dimmable ELV (Magnetic) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Z-Wave Plus Lifeline
- On -> CC Basic, Basic Report, Value 0x01 - 0x63 Report the dimming level
- Off -> CC Basic, Basic Report, Value 0x00
Instant Power Consumption vary over 10% and is stable almost 2sec
- CC Meter, Meter Report, “Electric meter”, “Consumed”, “Watts”, Size 4, Precision 1, Value (W)
Calibration requirement change. (If device needs to be calibrated and is Added into a Z-Wave network, it will report after receive an Association Set of life line).
- Calibration required -> CC Configuration, Configuration Report, Param 23, Value 0xFF
- Calibration not required -> CC Configuration, Configuration Report, Param 23, Value 0x00
After reset the Z-Wave module, a DEVICE-RESET-LOCALLY-NOTIFICATION is sent. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
5 | Fade time | Sets the time it takes to turn off the light (ramp time) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution | 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
| 4 | Set time | Sets the time it takes to turn on the light (ramp time) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 10 | Delay ON | Sets the delay time to turn on the light | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution | 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
| 11 | Activation time | Sets the time the light stays on. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 1 | Association LED | Allows to turn ON or OFF the central LED | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Turns the LED OFF | 1 | 255 | Turns the central LED ON |
| 7 | Max dimming value | Sets the maximum dimming value | 0 | 1 | 0 | 0 | 99 | From | To | Description |
|---|
2 | 99 | Once the devices gets a value through Z-Wave it Scales the value read according this maximum margin |
| 8 | Last on value | Returns or sets the last non zero dimming value. In case of Set the device turns ON the load. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 127 | returns or sets the last non zero dimming value. In case of Set the device turns ON the load |
| 9 | Calibration | Performs a device calibration | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | Device performs calibration using Trailing and leading Edge and decides which one is better | 2 | 2 | Device performs calibration using Trailing and leading Edge and decides which one is better | 3 | 3 | Device is calibrated using Leading Edge |
| 23 | Calibration required | Reports if calibration is required or not (read only) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
255 | 255 | It is necessary to calibrate the dimmer to work properly | 0 | 0 | Calibration is not required |
| 6 | Min dimming value | Sets the minimun dimming value | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 98 | Once the devices gets a value through Z-Wave it Scales the value read according this minimum margin |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device.
Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. | 2 | Exclusion | When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. | 6 | Additional Special Features | When the pushbutton is released after a press of (10sec<T<15sec) the device will perform an automatic callibration of times of Up and Down.
All LEDs will Blink with 0,3 sec period to inform that callibration is going to be performed.
After release and during the callibration All LEDs will Blink with 0,3 sec period to inform that callibration process is being performed.
When the pushbutton is released after a press of (15sec<T<30sec) the device will start a min adjust process, where user can adjust the minimum regulation value from 1% up to 50%) of dimmer capability. | 5 | Factory Reset | When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters.
Main LED will perform 1 Blink with 5 sec.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
