Product Recognition | |
|---|
Certification Number | ZC10-20016851 |
|---|

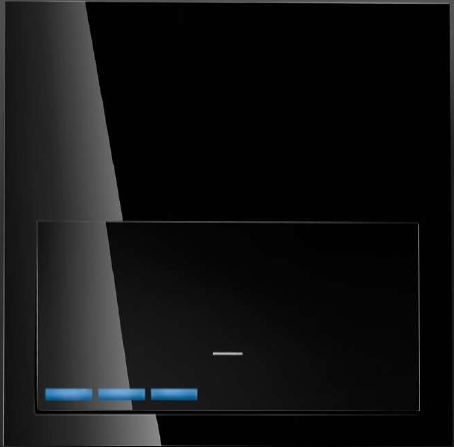

Name | S100 Rocker for Dimmer (Russia) |
|---|
Short Description | Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes.
The touch surface offers a slider area in order to adjust the light level showing the dimming intensity with 7 LEDs. |
|---|
Long Description | Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers a slider area in order to adjust the light level showing the dimming intensity with 7 LEDs .
Simon iO Dimmer is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. |
|---|
Brand | Simon |
|---|
Product Identifier | 10004020-13x |
|---|
Product Line | Simon 100 |
|---|
OEM Version | HW: 1 FW: 4.24:78.59:70.48 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | Light Dimmer Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0267 |
|---|
Product Type ID | 0x0007 |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x0600 |
|---|
Installer Icon | 0x0600 |
|---|
Frequency Plans | RU: 869.00MHz |
|---|
Categories | Energy Meters, All Lighting Devices, Dimming Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | Russian Federation |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 | COMMAND_CLASS_METER_V4 | Meter V4 | 0x32 | 4 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product Manual | | Manual_Other_Lang_1 | Product Manual spanish | |
|
|---|
Features | Feature | Values |
|---|
Electric Load Type | Value |
|---|
Incandescent | Dimmable LED | Dimmable MLV (Magnetic) | Dimmable ELV (Magnetic) |
| Switch Load Capacity Watts | | Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 3 | 0 | Lifeline | On/Off Report when load state is changed:
- On -> CC Basic, Basic Report, Value 0x01 - 0x63 Report the dimming level
- Off -> CC Basic, Basic Report, Value 0x00
Instant Power Consumption vary over 10% and is stable almost 2sec
- CC Meter, Meter Report, “Electric meter”, “Consumed”, “Watts”, Size 4, Precision 1, Value (W)
Calibration requirement change. (If device needs to be calibrated and is Added into a Z-Wave network,
it will report after receive an Association Set of life line).
- Calibration required -> CC Configuration, Configuration Report, Param 23, Value 0xFF
- Calibration not required -> CC Configuration, Configuration Report, Param 23, Value 0x00
After reset the Z-Wave module, a DEVICE-RESET-LOCALLY-NOTIFICATION is sent. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Association LED | Allows to turn ON or OFF the central LED | 1 | 1 | -128 | 0 | 0 | From | To | Description |
|---|
-128 | -128 | Turns the central LED ON | 0 | 0 | Turns the LED OFF |
| 4 | Set time | Sets the time it takes to turn on the light (ramp time) | 1 | 1 | -128 | 127 | 0 | From | To | Description |
|---|
-128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 5 | Fade Time | Sets the time it takes to turn off the light (ramp time) | 1 | 1 | -128 | 127 | 0 | From | To | Description |
|---|
-128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 6 | Min dimming value % | Sets the minimum dimming value in percentage | 1 | 1 | 1 | 99 | 0 | From | To | Description |
|---|
1 | 99 | Sets the minimum dimming value in percentage |
| 7 | Max dimming value | Sets the maximum dimming value in percentage | 1 | 1 | 1 | 99 | 1 | From | To | Description |
|---|
1 | 99 | Sets the maximum dimming value in percentage |
| 8 | Last on value | Returns or sets the last non zero dimming value. In case of Set, the device turns ON the load | 1 | 1 | 1 | 99 | 1 | From | To | Description |
|---|
1 | 99 | Returns or sets the last non zero dimming value. |
| 9 | Calibration | Performs a device calibration | 1 | 1 | 1 | 3 | 1 | From | To | Description |
|---|
2 | 2 | Device is calibrated using Trailing Edge | 3 | 3 | Device is calibrated using Leading Edge | 1 | 1 | Device performs calibration using Trailing and leading Edge and decides which one is better. |
| 10 | Delay On | Sets the delay time to turn on the light | 1 | 1 | -128 | 127 | 0 | From | To | Description |
|---|
-128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 11 | Activation Time | Sets the time the light stays on | 1 | 1 | -128 | 127 | 0 | From | To | Description |
|---|
-128 | -1 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly. Disable timming | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 23 | Calibration required (read only) | Reports if calibration is required or not (read only) | 1 | 1 | -128 | 0 | 0 | From | To | Description |
|---|
-128 | -128 | It is necessary to calibrate the dimmer to work properly | 0 | 0 | Calibration is not required |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | Long key press between 2 and 10 seconds. Central LED blinks until release
of Pushbutton | 2 | Classic Exclusion | Long key press between 2 and 10 seconds. Central LED blinks until release
of Pushbutton | 5 | Factory Reset Procedure | Long press for more than 30 seconds. The central LED light up for
2.5 sec.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supported / Controlled Meter Types | Meter Type | Rate Type | Description |
|---|
Electric meter | Import | Electric Meter Consumption |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
