Certification Number | ZC10-19076684 |
|---|
Name | S100 Rocker for Roller Blind (China) |
|---|

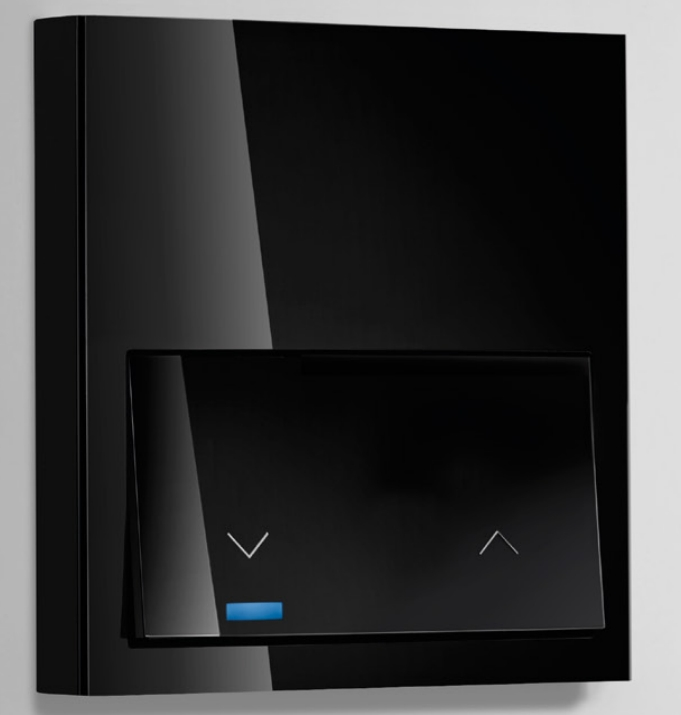

Short Description | Simon Electronic Roller Blind iO is integrated by Electronic Roller Blind and a Rocker, that provides Z-Wave communication attributes.
The touch area allows select which action is desired to act over the blind. |
|---|
Long Description | Roller Blind IO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience. Sending the Blind Up/Down or setting a specific position |
|---|
Brand | Simon |
|---|
Product Identifier | 10003080-13X |
|---|
OEM Version | HW: 1 FW: 4.24:75.53:66.47 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.51.07 |
|---|
Library Type | SLAVE_ENHANCED |
|---|
Device Type | Window Covering - Pos/End Aware |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0267 |
|---|
Product Type ID | 0x0004 |
|---|
Product ID | 0x0000 |
|---|
User Icon | 0x1A00 |
|---|
Installer Icon | 0x1A00 |
|---|
Frequency Plans | CN: 868.40MHz |
|---|
Categories | Motor Control |
|---|
Countries / Regions | China |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_BASIC | Basic | 0x20 | 1 | COMMAND_CLASS_VERSION_V2 | Version V2 | 0x86 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_SWITCH_MULTILEVEL_V3 | Switch Multilevel V3 | 0x26 | 3 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO_V3 | Association Group Information V3 | 0x59 | 3 | COMMAND_CLASS_CONFIGURATION_V2 | Configuration V2 | 0x70 | 2 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Volt-Ampere | | Window Covering Control Features | Value |
|---|
Automatic Calibration |
| Neutral Wire Required | | Firmware Updatable | Value |
|---|
Updatable by Professional/Technician |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 3 | 0 | Z-Wave Plus Lifeline
Position Report when Sunblind is stopped and is changed:
- % new position -> CC Basic, Basic Report, Value 0xXX from 0x00 to 0x63
Calibration requirement change. (If device needs to be calibrated and is Added into a Z-Wave network, it will report after receive an Association Set of life line).
- Calibration required -> CC Configuration, Configuration Report, Param 23, Value 0xFF
- Calibration not required -> CC Configuration, Configuration Report, Param 23, Value 0x00
After reset the Z-Wave module, a DEVICE-RESET-LOCALLY-NOTIFICATION is sent. |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Association LED | Allows to turn ON or OFF the central LED | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Turns the LED OFF | 255 | 0 | Turns the LED ON |
| 5 | DOWN Time | Sets time it takes to pull down the blind (ramp time) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution | 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution | 0 | 0 | Instantly |
| 23 | Calibration required | Reports if calibration is required or not (read only) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Calibration is not required | 255 | 255 | It is necessary to calibrate the curtain to work properly |
| 24 | Operating Mode | Changes operating mode between Windows shutter and Sunblind | 0 | 1 | 0 | 0 | 255 | From | To | Description |
|---|
0 | 0 | Operating mode for Window Shutter | 255 | 255 | Operating Mode for SundBlinds |
| 4 | UP Time | Sets time it takes to pull up the blind (ramp time) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Instantly | 128 | 255 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution | 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
|
|
|---|
Texts | ID | Description | Value |
|---|
5 | Factory Reset | When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters.
Main LED will perform 1 Blink with 5 sec.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. | 6 | Additional Special Features | When the pushbutton is released after a press of (10sec<T<15sec) the device will perform an automatic callibration of times of Up and Down.
Left and Right LEDs will Blink with 0,3 sec period to inform that callibration is going to be performed.
After release and during the callibration LED will Blink with 0,3 sec period to inform that callibration process is being performed.
When the pushbutton is released after a press of (15sec<T<30sec) the device will change from blind and awning.
The 3 LEDs will Blink with 0,3 sec period to inform that awing/sunblind function is being switched.
If Roller blind is working as awing the system will invert the report values. | 1 | Inclusion | When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device.
Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. | 2 | Exclusion | When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
This process does not perform a default reset of configurations.
Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
