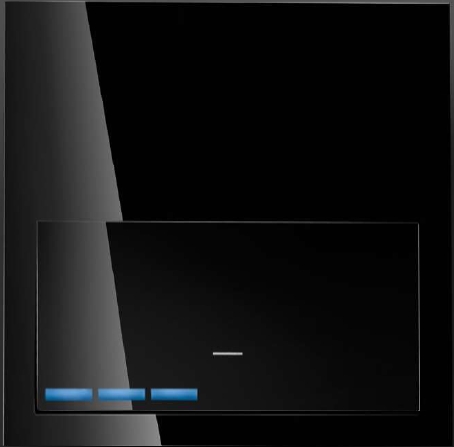

9 | Callibration | Write only configuration used to request the automatic adjust of UP and DOWN times. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
255 | 255 | Sunblind starts its callibration process |
|
1 | Association LED | Activates the Central LED. Configuration Used by Masters iO in order to identify the devices associated to their Group2 during manual association process. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Turns the LED OFF | 1 | 255 | Turns the LED ON |
|
23 | Calibration Required | Read only configuration used to know is device needs to be calibrated in order to work properly. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Device is calibrated | 255 | 255 | Calibration must be performed |
|
11 | Activation Time | Time that Dimmer activates of the load after it turns the load ON. This value must be set in hexadecimal format, and can accept these values: 0 --> Activation Time is 0. 0x01...0x7F --> Activation Time is from 1 to 127 seconds. (1 second resolution) 0x80...0xfE --> Activation Time is from 1 to 127 seconds. (1 minute resolution) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 127 | Activation Time is set in seconds from 1 to 127 seconds | 128 | 154 | Activation Time is set in minutes from 1 to 127 minutes | 0 | 0 | Activation Time is 0 seconds |
|
6 | Min Dimming % | Relative adjust used to set the minimum regulation value. This adjust is done in reference to internal values, accepted dimming values will always be from 1 to 0x63. Minimum Value must be < than Maximum Value. | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
1 | 98 | minimum internal dimming value |
|
7 | Max Dimming % | Relative adjust used to set the maximum regulation value. This adjust is done in reference to internal values, accepted dimming values will always be from 1 to 0x63. Maximum Value must be > then Minimum Value. | 0 | 1 | 0 | 0 | 100 | From | To | Description |
|---|
2 | 99 | maximum internal dimming value |
|
10 | Delay ON | Time that Dimmer delays the activation of the load after it receives an ON request. This value must be set in hexadecimal format, and can accept these values: 0 --> ON Delay is 0. 0x01...0x7F --> Delay ON is from 1 to 127 seconds. (1 second resolution) 0x80...0xfE --> Delay ON is from 1 to 127 seconds. (1 minute resolution) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | ON Delay is 0 seconds | 1 | 127 | ON Delay is set in seconds from 1 to 127 seconds | 128 | 254 | ON Delay is set in minutes from 1 to 127 minutes |
|
4 | Set Time | Sets the "Set Time" that will take the Dimmer to go from 0% to 100% This value must be set in hexadecimal format, and can accept these values: 0 --> Set Time is 0. 0x01...0x7F --> Set Time is from 1 to 127 seconds. (1 second resolution) 0x80...0xfE --> Set Time is from 1 to 127 seconds. (1 minute resolution) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 127 | Set Time is set in seconds from 1 to 127 minutes | 128 | 254 | Set Time is set in minutes from 1 to 127 minutes | 0 | 0 | Sets Time is 0 |
|
5 | Fade Time | Sets the "Fade Time" that will take the Dimmer to go from 100% to 0% This value must be set in hexadecimal format, and can accept these values: 0 --> Fade Time is 0. 0x01...0x7F --> Fade Time is from 1 to 127 seconds. (1 second resolution) 0x80...0xfE --> Fade Time is from 1 to 127 seconds. (1 minute resolution) | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Fade Time is 0 seconds | 1 | 127 | Fade Time is set in seconds from 1 to 127 seconds | 128 | 254 | Fade Time is set in minutes from 1 to 127 minutes |
|
