Product Recognition | |
|---|---|
Certification Number | ZC10-20016833 |

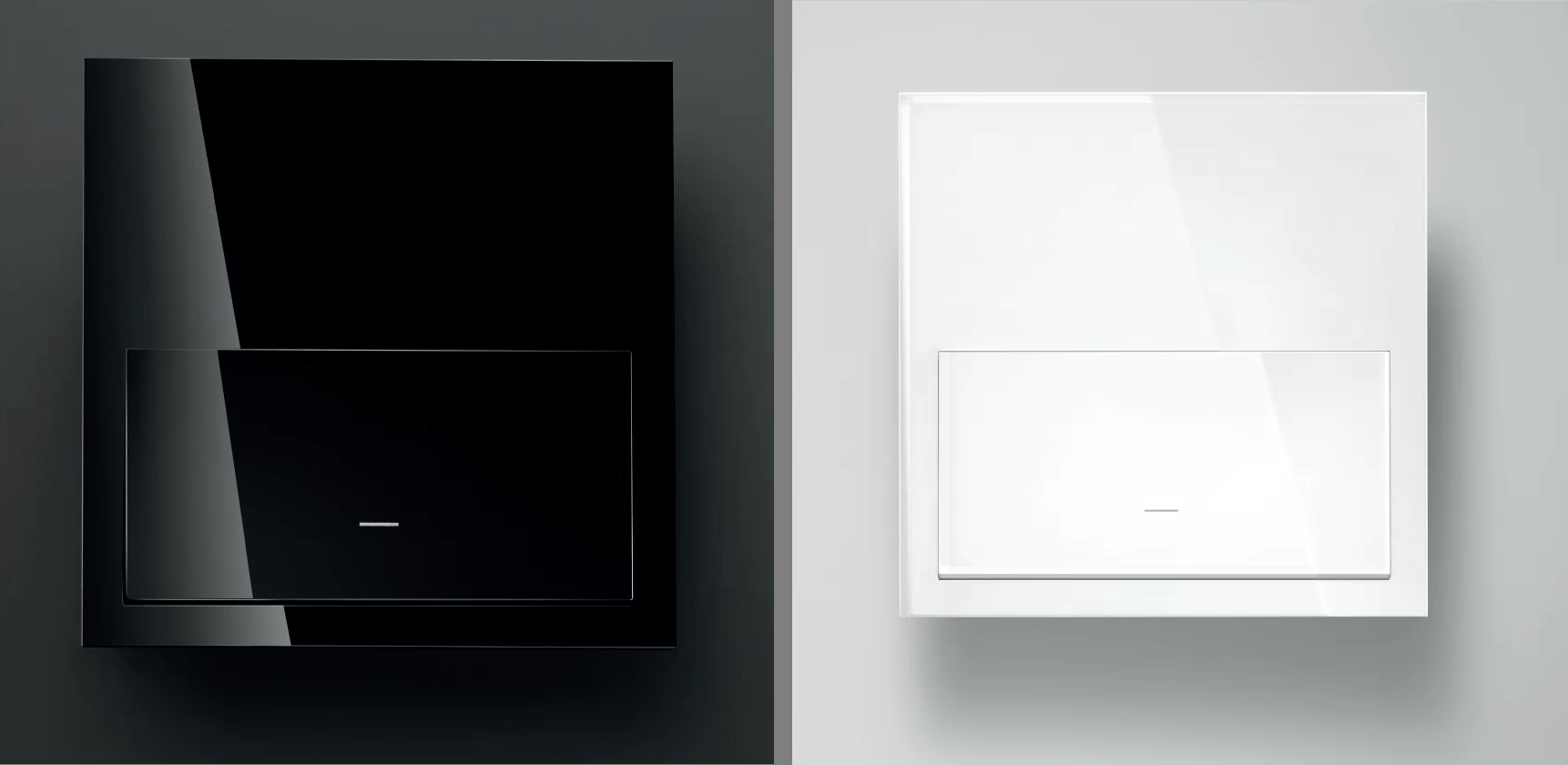

Name | S100 Switch IO (Mexico) |
Short Description | Simon Electronic Switch |
Long Description | Simon Electronic Switch IO integrated by Electronic Switch that provides power Switch and Rocker that provides Z-Wave communication attributes. |
Brand | Simon |
Product Identifier | 10005034-13x |
Product Line | Simon 100 |
OEM Version | HW: 1 FW: 4.24:72.15:65.15 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.51.07 |
Library Type | SLAVE_ENHANCED |
Device Type | On/Off Power Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0267 |
Product Type ID | 0x0001 |
Product ID | 0x0000 |
User Icon | 0x0700 |
Installer Icon | 0x0700 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | Energy Meters, All Lighting Devices, On/Off Switches/Devices |
Countries / Regions | United States of America |
Supported Command Classes | |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supported / Controlled Meter Types | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
