Product Recognition | |
|---|---|
Certification Number | ZC10-19086727 |

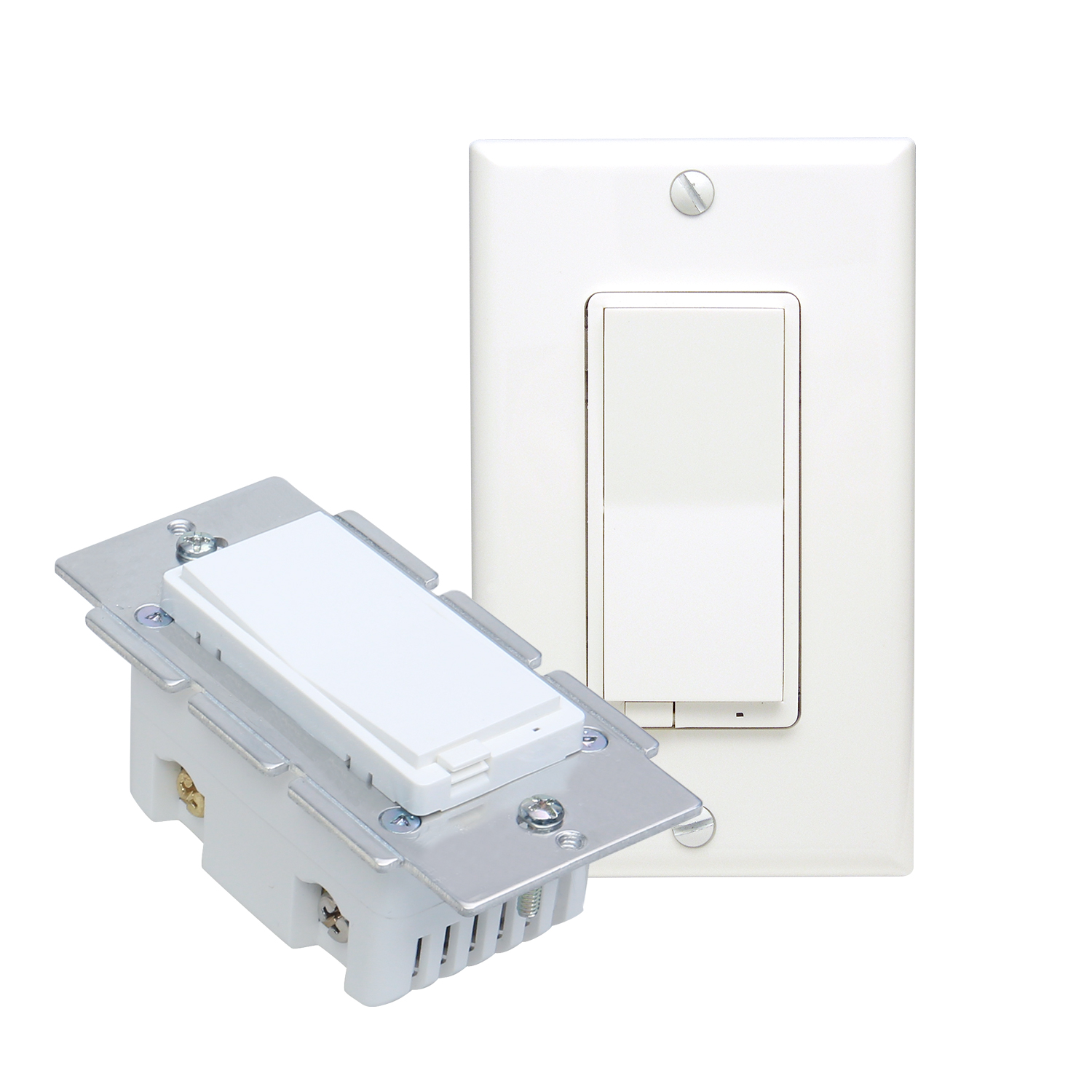

Name | S2 Dimmer Switch |
Short Description | This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network |
Long Description | This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal ,around obstacles and radio dead spots to ensure that the signal is received at its intended destination. |
Brand | Zooz |
Product Identifier | ZW313 |
Product Line | Line A |
OEM Version | HW: 1 FW: 4.00 |
Hardware Platform | ZM5202 |
Z-Wave Version | 6.71.03 |
Library Type | SLAVE_ENHANCED_232 |
Device Type | Light Dimmer Switch |
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
Manufacturer ID | 0x0312 |
Product Type ID | 0xA000 |
Product ID | 0xA002 |
User Icon | 0x0604 |
Installer Icon | 0x0600 |
Frequency Plans | US: 916.00MHz, 908.40MHz |
Categories | All Lighting Devices, Dimming Lighting Devices |
Countries / Regions | United States of America |
Supported Command Classes | |
Controlled Command Classes | |
S2 Classes | S2_UNAUTHENTICATED |
Documents | |
Features | |
Association Groups | |
Configuration Parameters | |
Texts | |
Supports NWI | Yes |
Supports Explorer Frames | Yes |
Radio Range Z-Wave (m) | 40 |
