Name

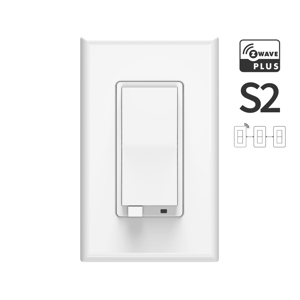

S2 Dimmer

Short Description

Use this S2 dimmer for fast 3-way, 4-way, and 5-way installations with existing on/off switches.

Long Description

FEATURES: - Manual or Z-Wave on/off and brightness control - Simple Direct 3-Way: connect with existing on/off switches in 3-way, 4-way, and 5-way set-ups, no add-on needed (neutral wire required) - Fully adjustable ramp rate for just the right on/off speed - Double tap to full brightness feature - Remembers and restores on/off status after power failure - LED indicator signals inclusion, exclusion, reset, and setting changes - Built-in Z-Wave Plus signal repeater to extend network range - Extended compatibility with LED bulbs, no more flickering! - S2 security protocol and the latest 500 Z-Wave chip for faster and safer wireless communication - Customizable LED indicator and air-gap switch for added safety SPECIFICATIONS: - Model Number: ZEN27 - Z-Wave Signal Frequency: 908.42 MHz - Power: 120 VAC, 60 Hz - Maximum Load: 100 W LED/CFL, 300 W incandescent (100 W with both sides of heat sink tabs off) - Range: Up to 100 feet line of sight - Operating Temperature: 32-104° F (0-40° C) - Installation and Use: Indoor only

Brand

Zooz

Product Identifier

ZEN27

OEM Version

HW: 1 FW: 1.00

Hardware Platform

ZM5202

Z-Wave Version

6.71.03

Library Type

SLAVE_ENHANCED_232

Device Type

Light Dimmer Switch

Role Type

ROLE_TYPE_SLAVE_ALWAYS_ON

Manufacturer ID

0x0312

Product Type ID

0xA000

Product ID

0xA002

User Icon

0x0604

Installer Icon

0x0600

Frequency Plans

US: 916.00MHz, 908.40MHz

Categories

All Lighting Devices, Dimming Lighting Devices

Countries / Regions

United States of America

Supported Command Classes

Controlled Command Classes

S2 Classes

S2_UNAUTHENTICATED

Documents

Features

Association Groups

Configuration Parameters

Parameter Number

Name

Description

Format

Size

Min Value

Max Value

Default Value

Parameter Values

LED Indicator Control

Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times.

From	To	Description
0	0	LED indicator is on when switch is off, LED indicator is off when switch is on
1	1	LED indicator is on when switch is on, LED indicator is off when switch is off
2	2	LED indicator is always OFF
3	3	LED indicator is always ON

Set Auto Turn-Off Timer

Use this parameter to set the time after which you want the switch to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.

From	To	Description
1	65535	minutes

Enable/Disable Auto Turn-On Timer

Use this parameter to enable or disable the auto turn-on timer function.

From	To	Description
0	0	timer disabled
1	1	timer enabled

Set Auto Turn-On Timer

Use this parameter to set the time after which you want the switch to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.

From	To	Description
1	65535	minutes

Paddle Control

Choose if you want the upper paddle to turn the light on or turn the light off when tapped.

From	To	Description
1	1	Upper paddle turns the light off, lower paddle turns the light on
0	0	Upper paddle turns the light on, lower paddle turns the light off

Enable/Disable Auto Turn-Off Timer

Use this parameter to enable or disable the auto turn-off timer function.

From	To	Description
1	1	timer enabled
0	0	timer disabled

On Off Status After Power Failure

Set the on off status for the switch after power failure.

From	To	Description
0	0	forced to OFF (regardless of state prior to power outage)
1	1	forced to ON (regardless of state prior to power outage)
2	2	remembers and restores on/off status after power failure

Ramp Rate Control

Adjust the ramp rate for your dimmer (fade-in / fade-out effect for on / off operation). Values correspond to the number of seconds it take for the dimmer to reach full brightness or turn off when operated manually.

From	To	Description
1	99	seconds

Minimum Brightness

Set the minimum brightness level (in %) for your dimmer. You won’t be able to dim the light below the set value.

From	To	Description
1	99	% brightness

Maximum Brightness

Set the maximum brightness level (in %) for your dimmer. You won’t be able to add brightness to the light beyond the set value. Note: if Parameter 12 is set to value 0, Parameter 11 is automatically disabled.

From	To	Description
1	99	% brightness
