Certification Number | ZC10-20086961 |
|---|

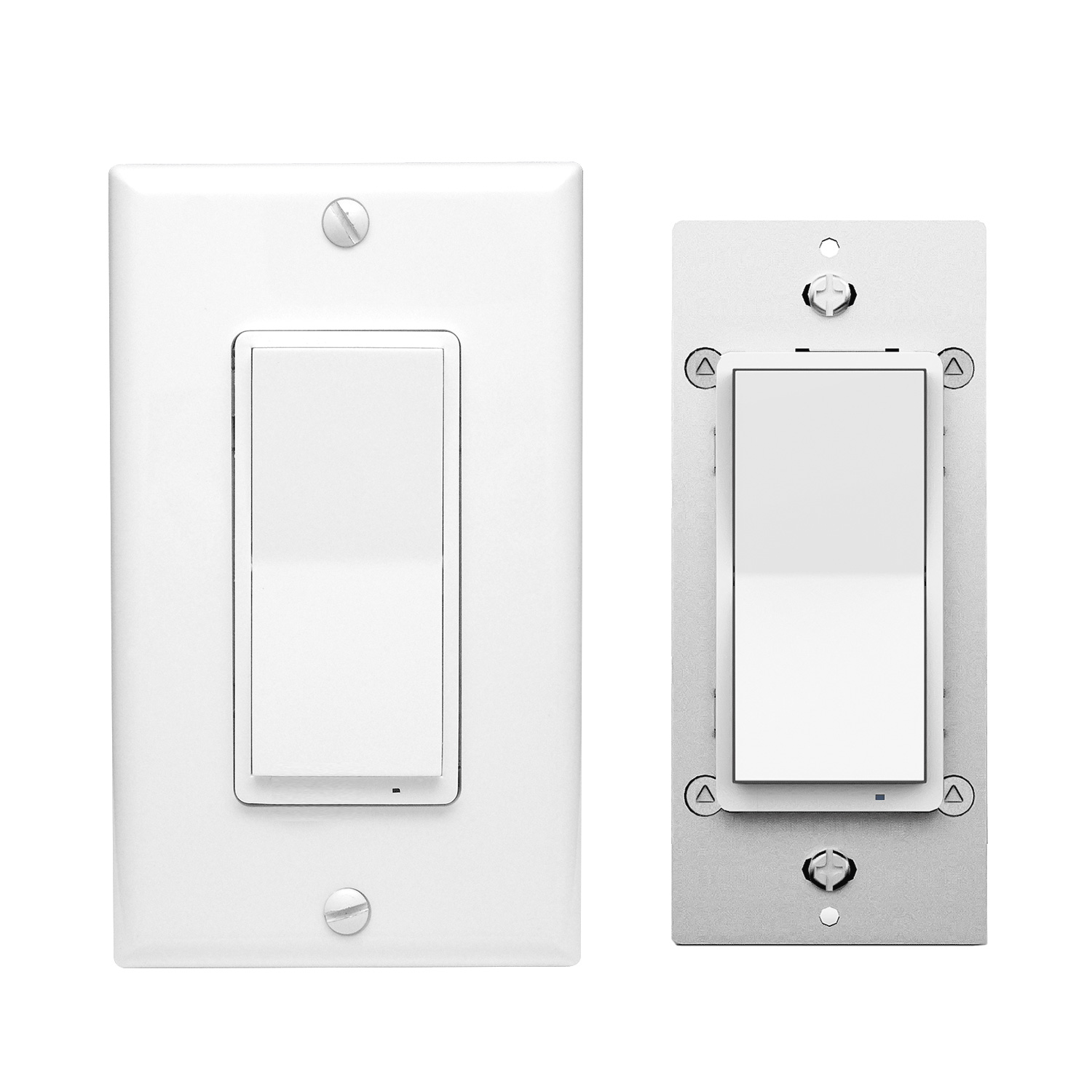

Name | S2 In-wall Smart ON/OFF Switch |
|---|
Short Description | It is an In-wall type device controlled by Z-Wave controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can control lights at home from your mobile phone separately, and manual On/Off light by push button . |
|---|
Long Description | It is an In-wall type device controlled by Z-Wave controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can control lights at home from your mobile phone separately, and manual On/Off light by push button .This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. |
|---|
Brand | Minoston |
|---|
Product Identifier | MS10ZS |
|---|
Product Line | Line A |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xEE00 |
|---|
Product ID | 0xEE01 |
|---|
User Icon | 0x0704 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_English | Product Manual in English | | Manual_Primary_Lang | Product Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Type | | Electric Load Type | Value |
|---|
Incandescent | LED | Inductive (e.g. Motor) |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Group Name | Description |
|---|
1 | 3 | 0 | Lifeline | Z-Wave Lifeline | 2 | 5 | 0 | basic set command | basic set command |
|
|---|
Configuration Parameters | Parameter Number | Name | Format | Size | Min Value | Max Value | Default Value | Parameter Values | Description |
|---|
1 | Locally Button function | 1 | 1 | 0 | 2 | 0 |
Warning: Undefined variable $field_object in /nas/content/live/zwaprodcatalog/wp-content/themes/hello-elementor-child/single-z-wave-product.php on line 98
From | To | Description |
|---|
0 | 0 | Up Button ON,Down Button OFF | 1 | 1 | Up Button OFF,Down Button ON | 2 | 2 | Up Button ON/OFF,Down Button ON/OFF |
| | 2 | Status LED Configuration | 1 | 1 | 0 | 3 | 0 | From | To | Description |
|---|
2 | 2 | LED Always OFF | 1 | 1 | Output and the LED are in the same state | 3 | 3 | LED Always ON | 0 | 0 | Output and the LED are in the different state |
| Status LED Configuration | 3 | Enable Auto Turn-Off Time | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
1 | 1 | timer enabled | 0 | 0 | timer disabled |
| Enable Auto Turn-Off Time | 4 | Auto Turn-Off Time | 1 | 4 | 1 | 65535 | 60 | From | To | Description |
|---|
1 | 65535 | Auto Turn-Off Time |
| Auto Turn-Off Time | 5 | Enable Auto Turn-ON Timer | 1 | 1 | 0 | 1 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 1 | timer enabled |
| | 6 | Auto Turn-ON Timer | 1 | 4 | 1 | 65535 | 60 | From | To | Description |
|---|
1 | 65535 | Auto Turn-ON Timer |
| Auto Turn-ON Timer | 8 | Restores state after power failure | 1 | 1 | 0 | 2 | 2 | From | To | Description |
|---|
1 | 1 | Output ON | 0 | 0 | Output OFF | 2 | 2 | The state before a power outage |
| Restores state after power failure | 9 | Enable or Disable local control | 1 | 1 | 0 | 1 | 1 | From | To | Description |
|---|
1 | 1 | enable | 0 | 0 | disable |
| Enable or Disable local control |
|
|---|
Texts | ID | Description | Value |
|---|
1 | Classic Inclusion | ADD the MS10Z from the existing Z-Wave home control network with your primary controller.
---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
---When prompted by your primary controller, click the Up or Down button three times in one second.
Include MS10Z to/from a Z-Wave Gateway with supporting Security.The MS10Z can support the Primary Controller that implemented the security S2. | 2 | Classic Exclusion | Remove the MS10Z from the existing Z-Wave home control network with your primary controller.
---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure.
---When prompted by your primary controller, click the Up or Down button three times in one second.
Include MS10Z to/from a Z-Wave Gateway with supporting Security.The MS10Z can support the Primary Controller that implemented the security S2. | 5 | Factory Reset Procedure | Press click Z-Wave button 3 times quickly, and hold for at least 10 seconds at the third time to restore the device to the factory
Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
