Product Recognition | |
|---|
Certification Number | ZC10-19086699 |
|---|

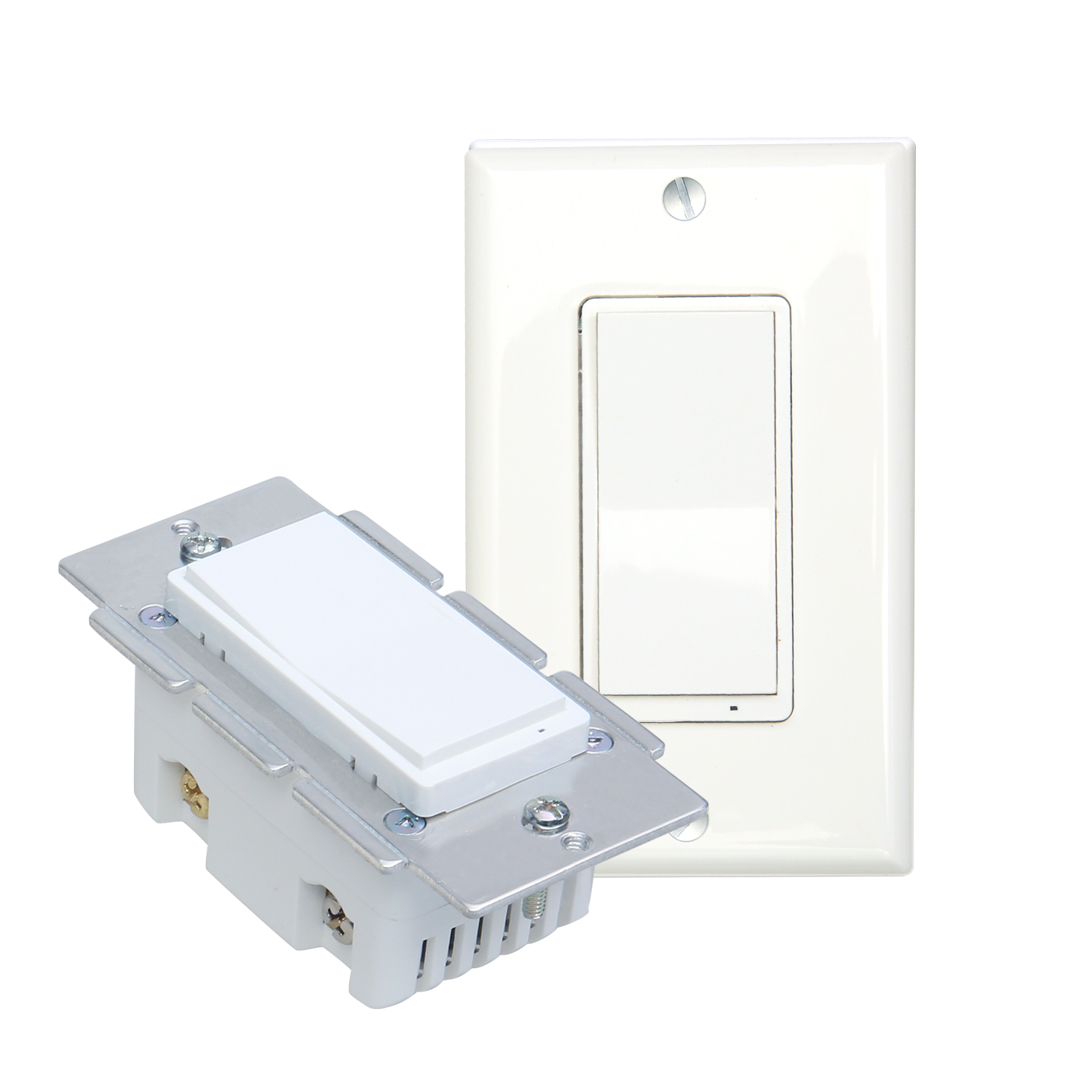

Name | S2 In-wall Smart ON/OFF Switch |
|---|
Short Description | This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers.
All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. |
|---|
Long Description | This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers.
All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal
around obstacles and radio dead spots to ensure that the signal is received at its intended destination.
ZW30 is a security enabled Z-Wave plus device. A security Enabled Z-Wave Plus Controller must be used in order to fully utilize the product. |
|---|
Brand | EVA LOGIK |
|---|
Product Identifier | ZW30 |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.81.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xAA00 |
|---|
Product ID | 0xAA01 |
|---|
User Icon | 0x0704 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Color | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Current | | Switch Type | Value |
|---|
Decorator Paddle Push |
| Z-Wave Scene Type | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | basic set command |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Locally Button function | Locally Button function | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Up Button ON,Down Button OFF | 1 | 1 | Up Button OFF,Down Button ON | 2 | 2 | Up Button ON/OFF,Down Button ON/OFF |
| 2 | Status LED Configuration | Status LED Configuration | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | Output and the LED are in the same state. | 2 | 2 | LED Always OFF | 3 | 3 | LED Always ON | 0 | 0 | Output and the LED are in the different state. |
| 4 | Auto Turn-Off Timer | Auto Turn-Off Timer | 0 | 4 | 0 | 0 | 60 | From | To | Description |
|---|
1 | 65535 | Auto Turn-Off Timer |
| 5 | Enable Auto Turn-ON Timer | Enable Auto Turn-ON Timer | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 1 | timer enabled |
| 6 | Auto Turn-ON Timer | Auto Turn-ON Timer | 0 | 4 | 0 | 0 | 60 | From | To | Description |
|---|
1 | 65535 | Auto Turn-ON Timer |
| 8 | Restores state after power failure | Restores state after power failure | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
0 | 0 | Output OFF | 1 | 1 | Output ON | 2 | 2 | The state before a power outage |
| 3 | Enable Auto Turn-Off Timer | Enable Auto Turn-Off Timer | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 1 | timer enabled |
| 9 | Enable or Disable local control | Enable or Disable local control | 0 | 1 | 0 | 0 | 1 | From | To | Description |
|---|
0 | 0 | disable | 1 | 1 | enable |
|
|
|---|
Texts | ID | Description | Value |
|---|
2 | Exclusion | 1. Follow the instructions for your Z-Wave certified controller to exclude
a device from the Z-Wave network.
2. Once the controller is ready to Exclude your device, press up and
release for threes times the front button to exclude it from the network. | 5 | Factory Reset | Press click Z-Wave button3 times quickly,and hold the third time for at least 10 seconds. to restore the device to the factory.Please use this procedure only when the network primary controller is missing or otherwise inoperable | 1 | Inclusion | 1. Follow the instructions for your Z-Wave certified controller to include
a device to the Z-Wave network.
2. Once the controller is ready to include your device, press up and
Release for threes times the toggle to include it in the network.
3. Once your controller has confirmed that the device has been included, refresh the
Z-Wave network to optimize performance.
4. The device is associated in the same group when it included in setting process.
Now you can control your Z-Wave device according to groups, scenes, schedules
and automation programmed. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
