Product Recognition | |
|---|
Certification Number | ZC10-19086703 |
|---|

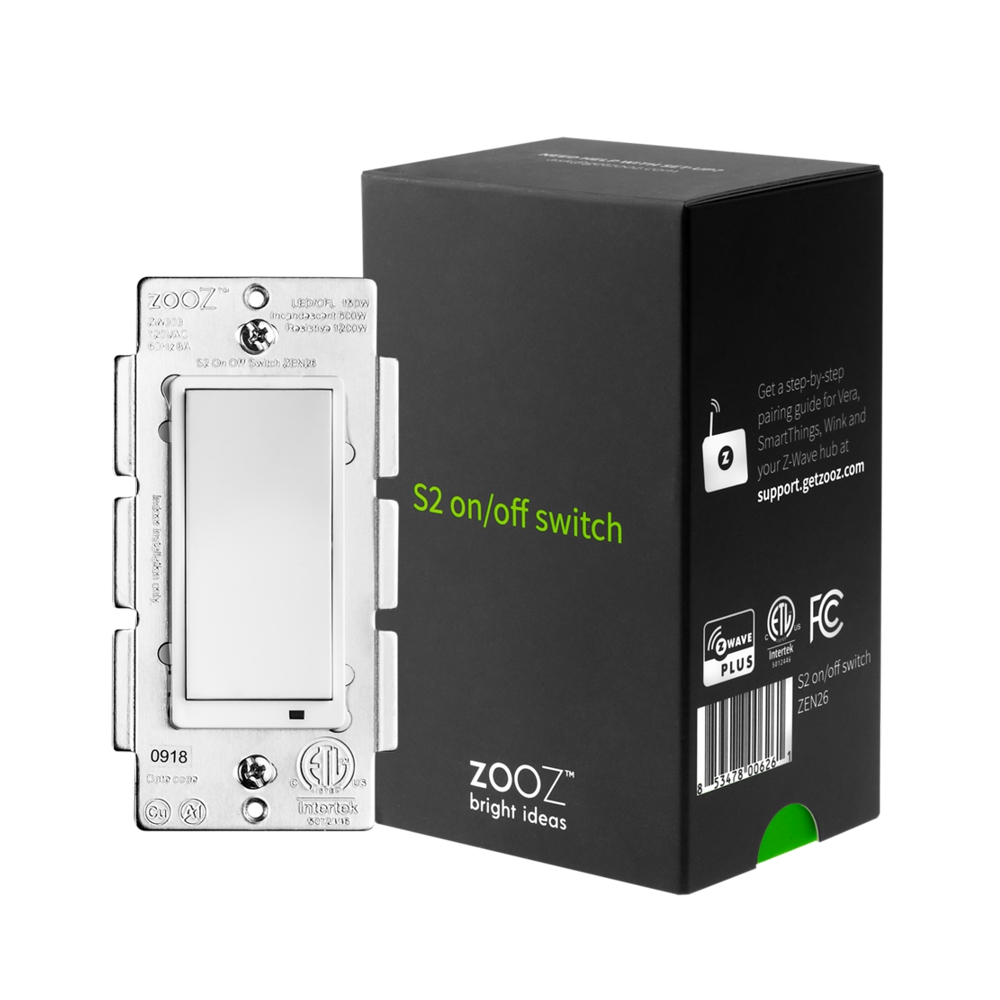

Name | S2 On/Off Switch |
|---|
Short Description | This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network willact as repeaters regardless of vendor to increase reliability of the network. |
|---|
Long Description | This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network willact as repeaters regardless of vendor to increase reliability of the network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal |
|---|
Brand | Zooz |
|---|
Product Identifier | ZW303 |
|---|
OEM Version | HW: 1 FW: 4.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x0312 |
|---|
Product Type ID | 0xA000 |
|---|
Product ID | 0xA001 |
|---|
User Icon | 0x0704 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, On/Off Switches/Devices |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_CENTRAL_SCENE_V3 | Central Scene V3 | 0x5B | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Watts | | Switch Type | | Z-Wave Scene Type | | Color | | Electric Load Type | Value |
|---|
Incandescent | Fluorescent | LED |
| Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
|
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
1 | 1 | 0 | Z-Wave Plus Lifeline | 2 | 5 | 0 | basic set command |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
1 | Locally Button function | Locally Button function | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Up Button ON,Down Button OFF | 1 | 1 | Up Button OFF,Down Button ON | 2 | 2 | Up Button ON/OFF,Down Button ON/OFF |
| 2 | Status LED Configuration | Status LED Configuration | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | Output and the LED are in the different state. | 1 | 1 | Output and the LED are in the same state. | 2 | 2 | Always OFF | 3 | 3 | Always ON |
| 3 | Enable Auto Turn-Off Timer | Enable Auto Turn-Off Timer | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 1 | timer enabled |
| 4 | Auto Turn-Off Timer | Auto Turn-Off Timer | 0 | 4 | 0 | 0 | 60 | From | To | Description |
|---|
1 | 65535 | Auto Turn-Off Timer |
| 5 | Enable Auto Turn-ON Timer | Enable Auto Turn-ON Timer | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 1 | timer enabled |
| 6 | Auto Turn-ON Timer | Auto Turn-ON Timer | 0 | 4 | 0 | 0 | 60 | From | To | Description |
|---|
1 | 65535 | Auto Turn-ON Timer |
| 8 | Restores state after power failure | Restores state after power failure | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
0 | 0 | Output OFF | 1 | 1 | Output ON | 2 | 2 | The state before a power outage |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1:Refer to your primary controller instructions to process the inclusion setup procedure.
2:When prompted by your primary controller, click the Up or Down button three times in one second. | 2 | Exclusion | Refer to your primary controller instructions to process the exclusion setup procedure.
2:When prompted by your primary controller, click the Up or Down button three times in one second. | 5 | Factory Reset | Press click Z-Wave button 2 times quickly,and hold for at least 10 seconds. to restore the device to the factory
(Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable.) |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
