Product Recognition | |
|---|
Certification Number | ZC10-18116308 |
|---|

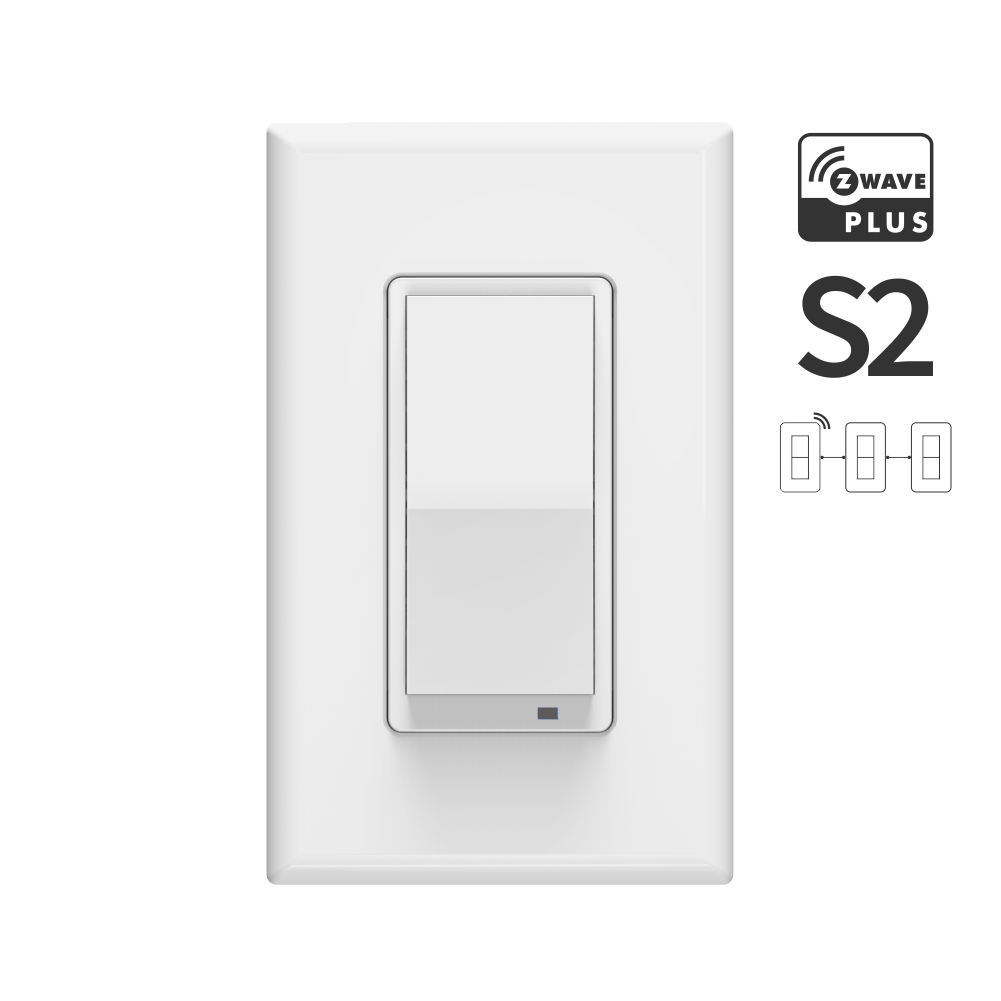

Name | S2 On Off Switch |
|---|
Short Description | Use this S2 switch for fast 3-way, 4-way, and 5-way installations with existing on/off switches. |
|---|
Long Description | FEATURES:
- Manual or Z-Wave on/off control with instant status updates
- Simple Direct 3-Way: connect with existing on/off switches in 3-way, 4-way, and 5-way set-ups, no add-on needed (neutral wire required)
- Remembers and restores on/off status after power failure
- LED indicator signals inclusion, exclusion, reset, and setting changes
- Built-in Z-Wave Plus signal repeater to extend network range
- Works with LED, CFL, and incandescent bulbs
- S2 security protocol and the latest 500 Z-Wave chip for faster and safer wireless communication
- Supported by most Z-Wave controllers
SPECIFICATIONS:
- Model Number: ZEN26
- Z-Wave Signal Frequency: 908.42 MHz
- Power: 120 VAC, 60 Hz
- Maximum Load: 8 A, 150 W LED/CFL, 600 W incandescent, 1200 W resistive
- Range: Up to 100 feet line of sight
- Operating Temperature: 32-104° F (0-40° C)
- Installation and Use: Indoor only |
|---|
Brand | Zooz |
|---|
Product Identifier | ZEN26 |
|---|
OEM Version | HW: 1 FW: 1.00 |
|---|
Hardware Platform | ZM5202 |
|---|
Z-Wave Version | 6.71.03 |
|---|
Library Type | SLAVE_ENHANCED_232 |
|---|
Device Type | On/Off Power Switch |
|---|
Role Type | ROLE_TYPE_SLAVE_ALWAYS_ON |
|---|
Manufacturer ID | 0x027A |
|---|
Product Type ID | 0xA000 |
|---|
Product ID | 0xA001 |
|---|
User Icon | 0x0704 |
|---|
Installer Icon | 0x0700 |
|---|
Frequency Plans | US: 916.00MHz, 908.40MHz |
|---|
Categories | All Lighting Devices, Lighting Accessories |
|---|
Countries / Regions | United States of America |
|---|
Supported Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4 | Firmware Update Meta-Data V4 | 0x7A | 4 | COMMAND_CLASS_POWERLEVEL | Powerlevel | 0x73 | 1 | COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V3 | Multi-Channel Association V3 | 0x8E | 3 | COMMAND_CLASS_SWITCH_BINARY | Switch Binary | 0x25 | 1 | COMMAND_CLASS_CONFIGURATION | Configuration | 0x70 | 1 | COMMAND_CLASS_TRANSPORT_SERVICE_V2 | Transport Service V2 | 0x55 | 2 | COMMAND_CLASS_DEVICE_RESET_LOCALLY | Device Reset Locally | 0x5A | 1 | COMMAND_CLASS_ZWAVEPLUS_INFO_V2 | Z-Wave Plus Info V2 | 0x5E | 2 | COMMAND_CLASS_ASSOCIATION_V2 | Association V2 | 0x85 | 2 | COMMAND_CLASS_ASSOCIATION_GRP_INFO | Association Group Info | 0x59 | 1 | COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 | COMMAND_CLASS_SECURITY_2 | Security S2 | 0x9F | 1 | COMMAND_CLASS_VERSION_V3 | Version V3 | 0x86 | 3 | COMMAND_CLASS_SUPERVISION | Supervision | 0x6C | 1 | COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2 | Manufacturer Specific V2 | 0x72 | 2 |
|
|---|
Controlled Command Classes | Identifier | Name | Key | Version |
|---|
COMMAND_CLASS_BASIC_V2 | Basic V2 | 0x20 | 2 |
|
|---|
S2 Classes | S2_UNAUTHENTICATED |
|---|
Documents | Category | Description | File |
|---|
Manual_Primary_Lang | Product or Owner's Manual | |
|
|---|
Features | Feature | Values |
|---|
Switch Load Capacity Current | | Neutral Wire Required | | Electric Load Type | | Firmware Updatable | Value |
|---|
Updatable by Consumer by RF |
| Switch Load Capacity Watts | Value |
|---|
600 W (incandescent) / 150 W LED's |
| Color | |
|
|---|
Association Groups | Group Number | Maximum Nodes Supported | End Point ID | Description |
|---|
2 | 5 | 0 | This device will send BINARY SWITCH REPORT to Group 1 and 2 when operated manually. | 1 | 1 | 0 | Z-Wave Plus Lifeline |
|
|---|
Configuration Parameters | Parameter Number | Name | Description | Format | Size | Min Value | Max Value | Default Value | Parameter Values |
|---|
3 | Auto Turn-Off Timer | Use this parameter to set the time after which you want the switch to automatically turn off once it has been turned on. The number entered as value corresponds to the number of seconds. | 0 | 2 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | timer disabled | 1 | 32768 | seconds |
| 5 | On Off Status After Power Failure | Set the on off status for the switch after power failure. | 0 | 1 | 0 | 0 | 2 | From | To | Description |
|---|
0 | 0 | forced to OFF (regardless of state prior to power outage) | 1 | 1 | forced to ON (regardless of state prior to power outage) | 2 | 2 | remembers and restores on/off status after power failure |
| 1 | Paddle Control | Choose if you want the upper paddle to turn the light on or turn the light off when tapped. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
1 | 1 | Upper paddle turns the light off, lower paddle turns the light on | 0 | 0 | Upper paddle turns the light on, lower paddle turns the light off |
| 2 | LED Indicator Control | Choose if you want the LED indicator to turn on when the switch (light) is on or off, or if you want it to remain on or off at all times. | 0 | 1 | 0 | 0 | 0 | From | To | Description |
|---|
0 | 0 | LED indicator is on when switch is off, LED indicator is off when switch is on | 1 | 1 | LED indicator is on when switch is on, LED indicator is off when switch is off | 2 | 2 | LED indicator is always OFF | 3 | 3 | LED indicator is always ON |
|
|
|---|
Texts | ID | Description | Value |
|---|
1 | Inclusion | 1. Initiate inclusion (pairing) in the app (or web interface) of your hub.
2. Tap the upper paddle on the switch 3 times quickly. | 2 | Exclusion | 1. Bring your Z-Wave gateway (hub) close to the switch if possible
2. Put the Z-Wave hub into exclusion mode (not sure how to do that?
ask@getzooz.com)
3. Tap the lower paddle on the switch 3 times quickly | 6 | Additional Special Features | - S2 Security
- Simple Direct 3-way & 4-way (no add-on switches needed)
- Control the LED indicator mode right from the switch | 5 | Factory Reset | If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, tap-tap-tap’n’hold the upper paddle for at least 10 seconds. The LED indicator will flash to confirm successful reset.
NOTE: All previously recorded activity and custom settings will be erased from the device’s memory. |
|
|---|
Supports NWI | Yes |
|---|
Supports Explorer Frames | Yes |
|---|
Radio Range Z-Wave (m) | 40 |
|---|
